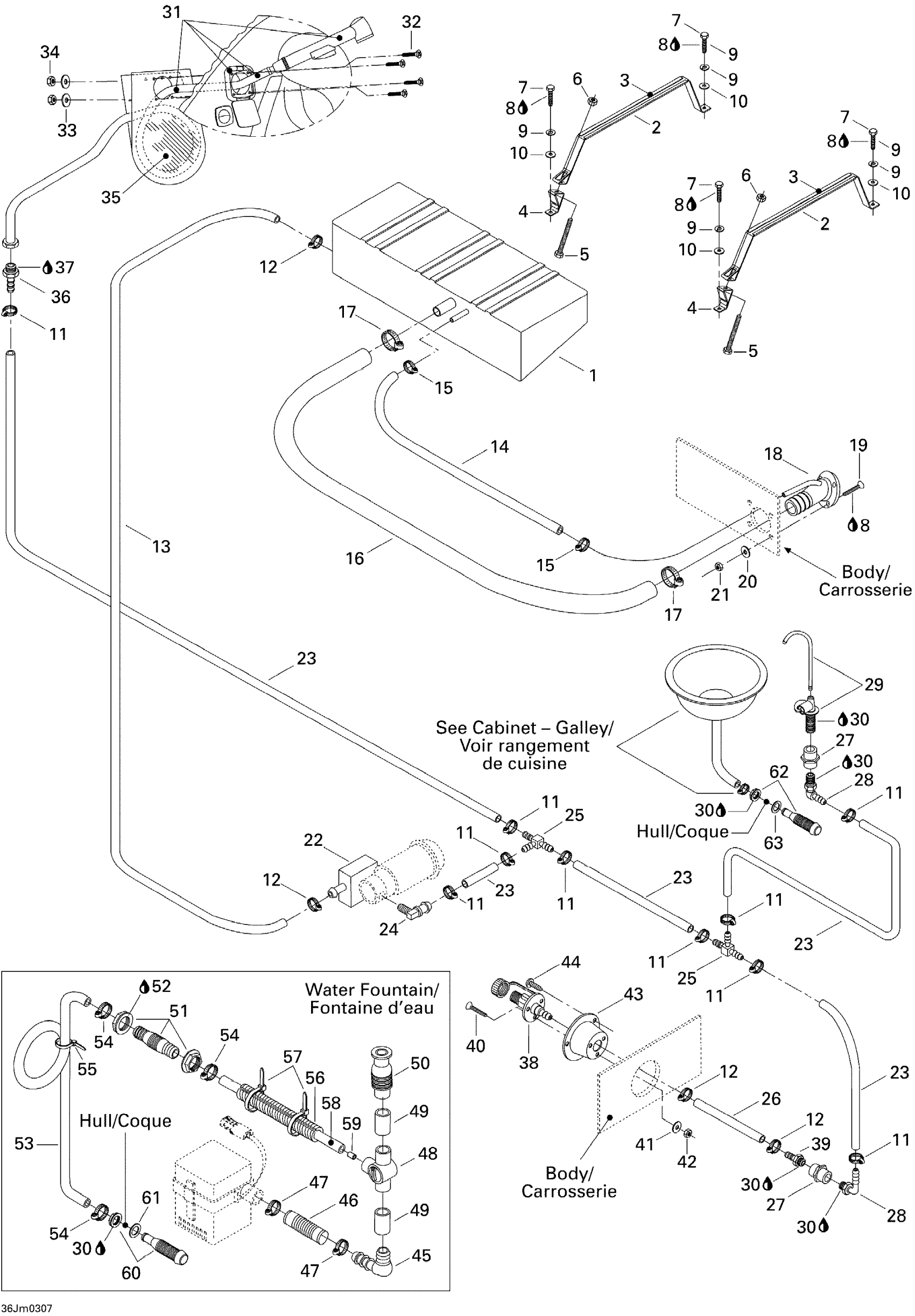

Sea-doo Islandia, 250 OPTI, 240 EFI, 2003 Passenger Water System Diagram

#

Description
Price

1

WATER TANK - Call your local BRP dealership

204940002

Unavailable

2

WATER TANK STRAP - Call your local BRP dealership

204940003

Unavailable

3

PROTECTOR PAD - Call your local BRP dealership

293830044

Unavailable

4

TANK BRACKET - Call your local BRP dealership

275500252

Unavailable

5

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

6

Hex. Elastic Nut M8

232581600

$1.48

7

Hex. Screw M8 X 30

207183060

$1.58

8

Loctite 243, 10 ml

293800060

$21.49

9

Lock Washer 8 mm, Stainless

234181601

$0.55

10

Flat Washer 8 mm, Stainless

234082600

$2.43

11

Tridon Gear Clamp

293650172

$3.09

12

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

13

FRESH WATER HOSE, METER - Call your local BRP dealership

204940010

Unavailable

14

PVC Hose 16 Mm , Meter

204940015

Unavailable

15

Tridon Gear Clamp

293650172

$3.09

16

PVC Hose, Meter

204940005

Unavailable

17

Norma Clamp

293650074

$17.05

18

VENT NECK-FILLER - Call your local BRP dealership

204940041

Unavailable

19

Phillips Screw M4 X 30

208643060

Unavailable

20

Flat Washer 4 mm, Stainless

234042600

$1.15

21

Elastic Stop Nut M4

232541600

$1.15

22

FRESH WATER FILTER - Call your local BRP dealership

204940007

Unavailable

23

FRESH WATER HOSE, METER - Call your local BRP dealership

204940008

Unavailable

24

ELBOW FITTING 90 - Call your local BRP dealership

204940009

Unavailable

25

T-Fitting

204940011

Unavailable

26

FRESH WATER HOSE, METER - Call your local BRP dealership

204940010

Unavailable

27

NYLON FITTING 1/2? - Call your local BRP dealership

204940030

Unavailable

28

NYLON FITTING 1/2, 90 - Call your local BRP dealership

204940031

Unavailable

29

Sink Faucet

204940017

Unavailable

30

Silicone Sealant 51388, 300 ml

296000309

$36.99

31

FRESH WATER SHOWER - Call your local BRP dealership

204940018

Unavailable

32

Phillips Screw M4 X 30

208443060

$1.48

33

Flat Washer 4 mm, Stainless

234042600

$1.15

34

Elastic Stop Nut M4

232541600

$1.15

35

Bag, Hose/Shower

204940029

Unavailable

36

MALE FITTING 1/2? - Call your local BRP dealership

204940019

Unavailable

37

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

38

WASHDOWN FAUCET - Call your local BRP dealership

204940020

Unavailable

39

Nylon Fitting 1/2” X 3/4”

204940032

Unavailable

40

PHILLIPS SCREW M4 X 16 - Call your local BRP dealership

208441660

Unavailable

41

Flat Washer 4 mm, Stainless

234042600

$1.15

42

Elastic Stop Nut M4

232541600

$1.15

43

Washdown Cup

204940051

Unavailable

44

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

45

Elbow Fitting 3/4”, 90°

204940023

Unavailable

46

Hose 1-1/8”, Meter

204940012

Unavailable

47

Norma Clamp

293650074

$17.05

48

DIVERTER VALVE - Call your local BRP dealership

204940024

Unavailable

49

Extension Tube

204940027

Unavailable

50

Fountain Nozzle

204940025

Unavailable

51

Thru Hull Fitting

204940035

Unavailable

52

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

53

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

54

Tridon Clamp

293650016

$10.99

55

Tie-Rap 180 mm

414115200

$0.11

56

SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.

204130176

Unavailable

57

Tie Wrap 142 mm

293750002

$1.25

58

FRESH WATER HOSE, METER - Call your local BRP dealership

204940010

Unavailable

59

Water Hose

204940036

Unavailable

60

Fitting

293710162

$13.49

61

GASKET - Call your local BRP dealership This part replaces 293250251.

293250006

Unavailable

62

Thru Hull Fitting 5/8"

204100028

Unavailable

63

GASKET - Call your local BRP dealership

293250028

Unavailable
