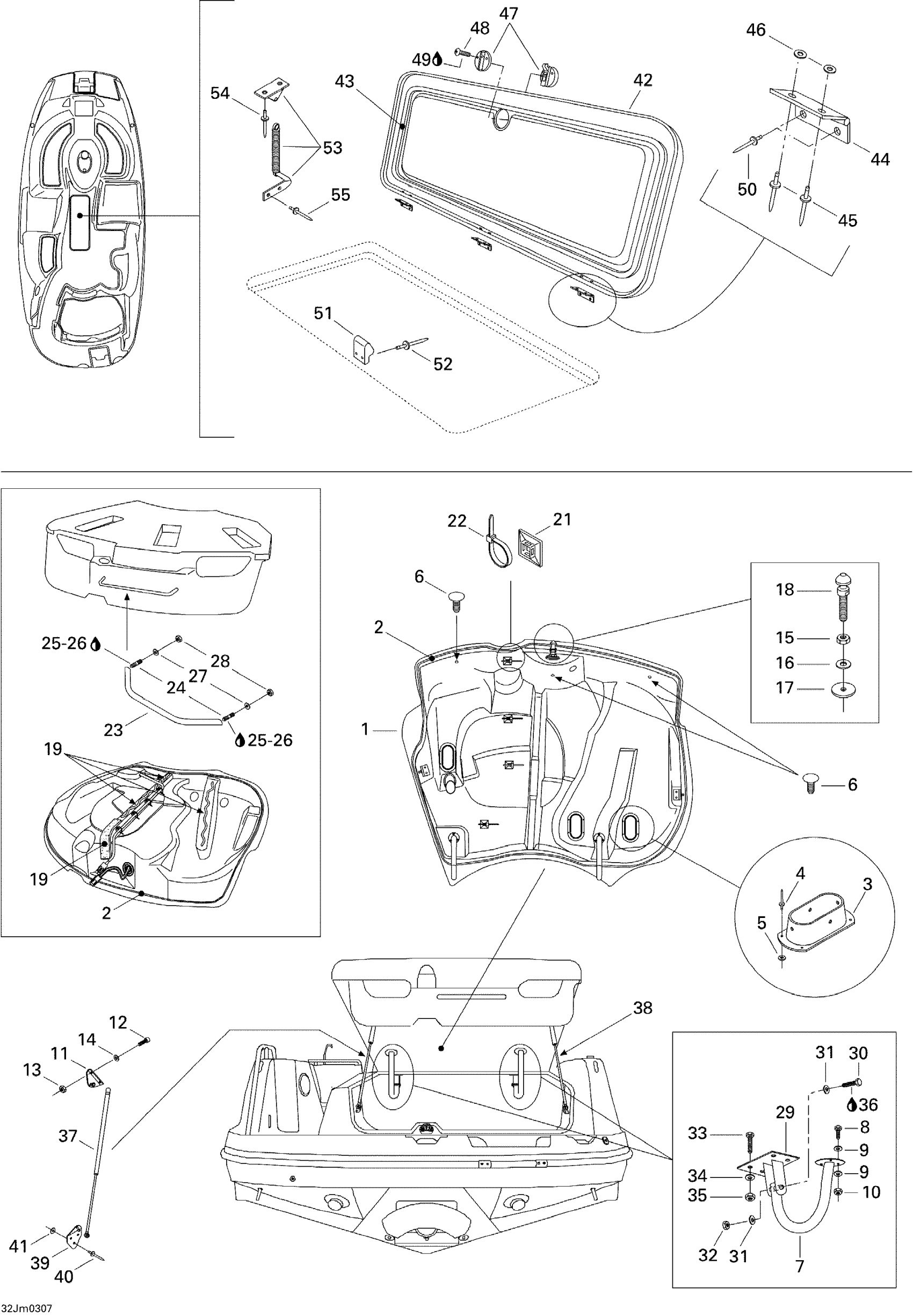

Sea-doo Islandia, 250 OPTI, 240 EFI, 2003 Engine and Center Cover Diagram

#

Description
Price

1

ENGINE COVER - Call your local BRP dealership

204071808

Unavailable

2

Was 293200017 Neoprene Seal

219704365

$149.99

3

Ventilator Adaptor

204071540

Unavailable

4

Pop Rivet 1/8”

293150015

$0.40

5

Flat Washer M3, Stainless

234032600

$0.55

6

Black Dart

293730014

$0.99

7

ENGINE COVER HINGE - Call your local BRP dealership

204070785

Unavailable

8

Hex. Screw M6 X 65

207166560

$2.75

9

Flat Washer M6, Stainless

234062600

$0.77

10

Hex. Elastic Stop Nut M6

232561600

$1.15

11

Shock Bracket

204073074

$27.99

12

SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership

205455060

Unavailable

13

Hex. Elastic Nut M5 | X

232551600

$1.15

14

Flat Washer 5 mm, Stainless

234052600

$0.77

15

Hex. Jam Nut M10

232100600

$2.22

16

Flat Washer 10 mm, Stainless

234002600

$2.22

17

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

18

Latch Stud

204100065

Unavailable

19

FOAM 2-1/2 X 2-1/2 X 18.5 - Call your local BRP dealership

204070903

Unavailable

20

Silicone Sealant 51388, 300 ml

296000309

$36.99

21

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

22

Tie Wrap 142 mm

293750002

$1.25

23

GRAB HANDLE - Call your local BRP dealership

204071122

Unavailable

24

STUD 3/8?-16 X 2? - Call your local BRP dealership

204100050

Unavailable

25

Loctite 271, 10 ml

293800005

$26.99

26

Was 293800041 Loctite Primer 7649

219704458

$39.99

27

Flat Washer 10 mm, Stainless

234002600

$2.22

28

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

29

HINGE BRACKET, ENGINE COVER - Call your local BRP dealership

204070925

Unavailable

30

HEX. SCREW 3/8?-16 X 2-1/2? - Call your local BRP dealership

204100053

Unavailable

31

Flat Washer 10 mm, Stainless

234002600

$2.22

32

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

33

Hex. Screw M6 X 40

207164060

$3.38

34

Stainless Flat Washer M6

234061600

$0.33

35

Hex. Elastic Stop Nut M6

232561600

$1.15

36

Loctite 243, 10 ml

293800060

$21.49

37

LH Retainer Cylinder

204071085

Unavailable

38

RH Retainer Cylinder

204071086

Unavailable

39

Shock Bracket

204071673

Unavailable

40

Pop Rivet 3/16"

293150043

$2.09

41

Flat Washer M5, Stainless

234051600

$0.77

42

Not Available As Spare Part - Friction Washer

Unavailable

43

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

44

HINGE - Call your local BRP dealership

204072601

Unavailable

45

Pop Rivet 3/16"

293150088

$0.99

46

Flat Washer M5, Stainless

234051600

$0.77

47

LATCH, WHITE - Call your local BRP dealership

204070120

Unavailable

48

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

49

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

50

Pop Rivet 3/16"

293150088

$0.99

51

LATCH BRACKET - Call your local BRP dealership

204070050

Unavailable

52

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

53

SPRING SEAT - Call your local BRP dealership

204000071

Unavailable

54

Pop Rivet 3/16"

204000081

$1.49

55

Pop Rivet 3/16"

293150043

$2.09
