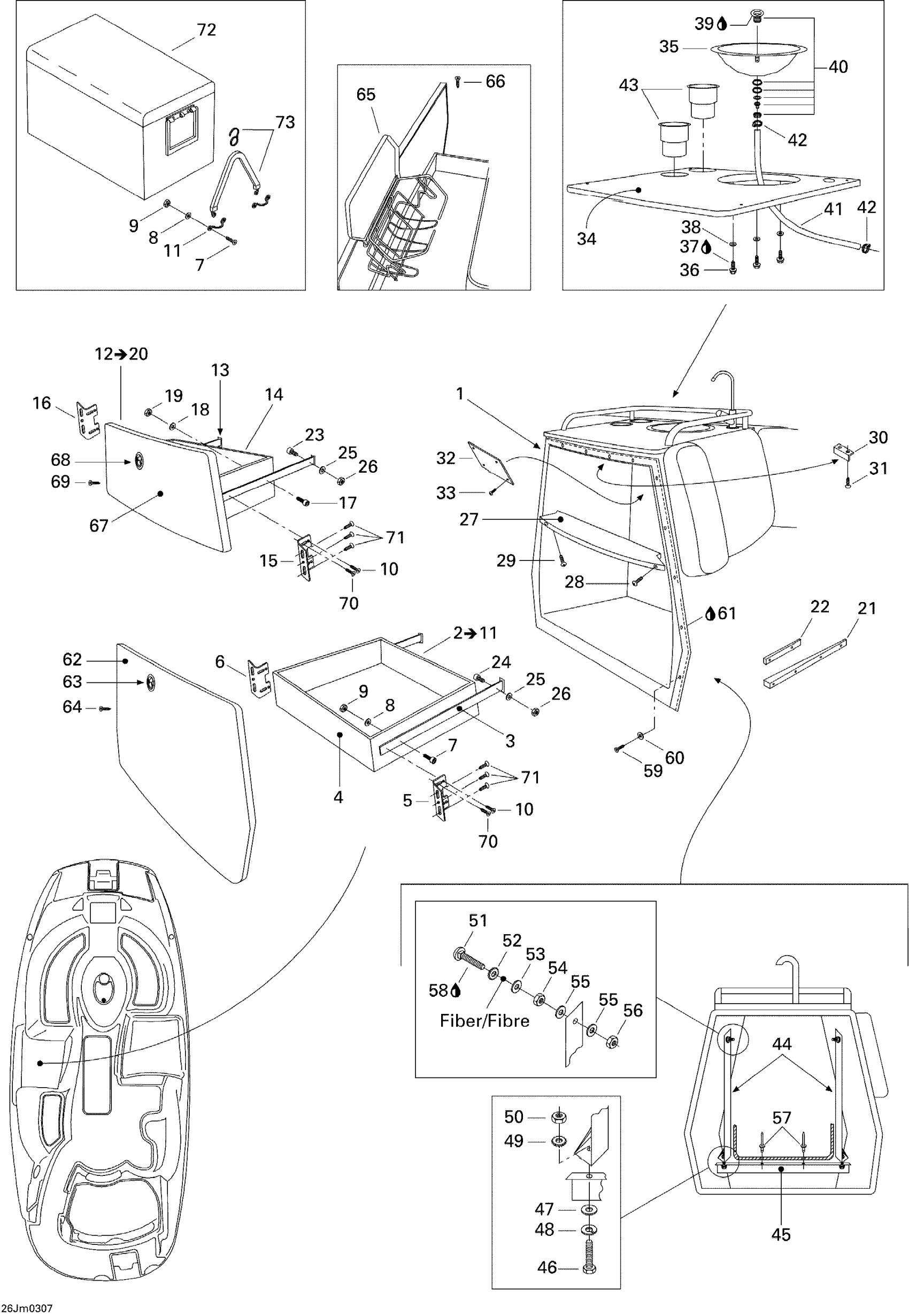

Sea-doo Islandia, 250 OPTI, 240 EFI, 2003 Cabinet - Galley Diagram

#

Description
Price

1

Cabinet, Galley

204071152

Unavailable

2

Ice Chest Drawer Ass'y | Includes 2 to 14

204070611

Unavailable

3

Drawer Slides, Long

204070612

Unavailable

4

Drawer, Bottom

204070964

Unavailable

5

RH DRAWER BRACKET, 94DEG - Call your local BRP dealership

204070725

Unavailable

6

LH DRAWER BRACKET, 80DEG - Call your local BRP dealership

204070726

Unavailable

7

Socket Head Screw M4 X 16

205441660

$1.47

8

Flat Washer 4 mm, Stainless

234042600

$1.15

9

Elastic Stop Nut M4

232541600

$1.15

10

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

11

Strap Tie

204070234

Unavailable

12

Upper Drawer Ass'y, Galley | Includes 15 to 23

204070618

Unavailable

13

DRAWER SLIDES, SHORT - Call your local BRP dealership

204070613

Unavailable

14

DRAWER, BOTTOM - Call your local BRP dealership

204070619

Unavailable

15

RH DRAWER BRACKET, 94DEG - Call your local BRP dealership

204070725

Unavailable

16

LH DRAWER BRACKET, 80DEG - Call your local BRP dealership

204070726

Unavailable

17

Socket Head Screw M4 X 16

205441660

$1.47

18

Flat Washer 4 mm, Stainless

234042600

$1.15

19

Elastic Stop Nut M4

232541600

$1.15

20

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

21

SLIDE SHIM, LONG - Call your local BRP dealership

204070727

Unavailable

22

SLIDE SHIM, SHORT - Call your local BRP dealership

204070728

Unavailable

23

Socket Screw M4 X 25

205442560

$1.15

24

SOCKET HEAD SCREW M4 X 35 - Call your local BRP dealership

205443560

Unavailable

25

Flat Washer 4 mm, Stainless

234042600

$1.15

26

Elastic Stop Nut M4

232541600

$1.15

27

LATCH SUPPORT - Call your local BRP dealership

204070965

Unavailable

28

Phillips Screw M4 X 30

208443060

$1.48

29

PHILLIPS SCREW M4 X 50 - Call your local BRP dealership

208445060

Unavailable

30

KEEPER - Call your local BRP dealership

204070060

Unavailable

31

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

32

ACCESS COVER - Call your local BRP dealership

204070916

Unavailable

33

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

34

Counter Top

204071713

Unavailable

35

Sink

204070625

Unavailable

36

Screw K40 X 10

241140060

$1.48

37

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

38

Flat Washer 4 mm, Stainless

234042600

$1.15

39

Silicone Sealant 51388, 300 ml

296000309

$36.99

40

SINK STRAINER ASS?Y - Call your local BRP dealership

204070626

Unavailable

41

Bilgeflex Hose 5/8”, Meter

204940033

Unavailable

42

Tridon Clamp

293650016

$10.99

43

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

44

STRAP 565 MM - Call your local BRP dealership

204070971

Unavailable

45

Angle 813 mm

204070972

Unavailable

46

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

47

Flat Washer 8 mm, Stainless

234082600

$2.43

48

Lock Washer 8 mm, Stainless

234181601

$0.55

49

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

50

Hex. Nut M8

232081600

$1.47

51

Elevator Bolt

204000130

Unavailable

52

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

53

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

54

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

55

Flat Washer M6, Stainless

234062600

$0.77

56

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

57

RIVET - Call your local BRP dealership

293150065

Unavailable

58

Loctite 243, 10 ml

293800060

$21.49

59

TAPPING PHILLIPS SCREW M4.8 X 38 - Call your local BRP dealership

250000086

Unavailable

60

FINITION WASHER - Call your local BRP dealership

204100057

Unavailable

61

Adhesive Sealant (White), Tube, 310 ml

293530082

Unavailable

62

Front Drawer, Ice Chest

204071154

Unavailable

63

DOOR LATCH - Call your local BRP dealership

204070951

Unavailable

64

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

65

Wastebasket

204070616

Unavailable

66

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

67

Front Drawer, Galley

204071156

Unavailable

68

LATCH, WHITE - Call your local BRP dealership

204070120

Unavailable

69

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

70

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

71

Phillips Screw #8 X 1/2”

204100030

Unavailable

72

Ice Chest

204070617

Unavailable

73

ICE CHEST STRAP - Call your local BRP dealership

204070905

Unavailable
