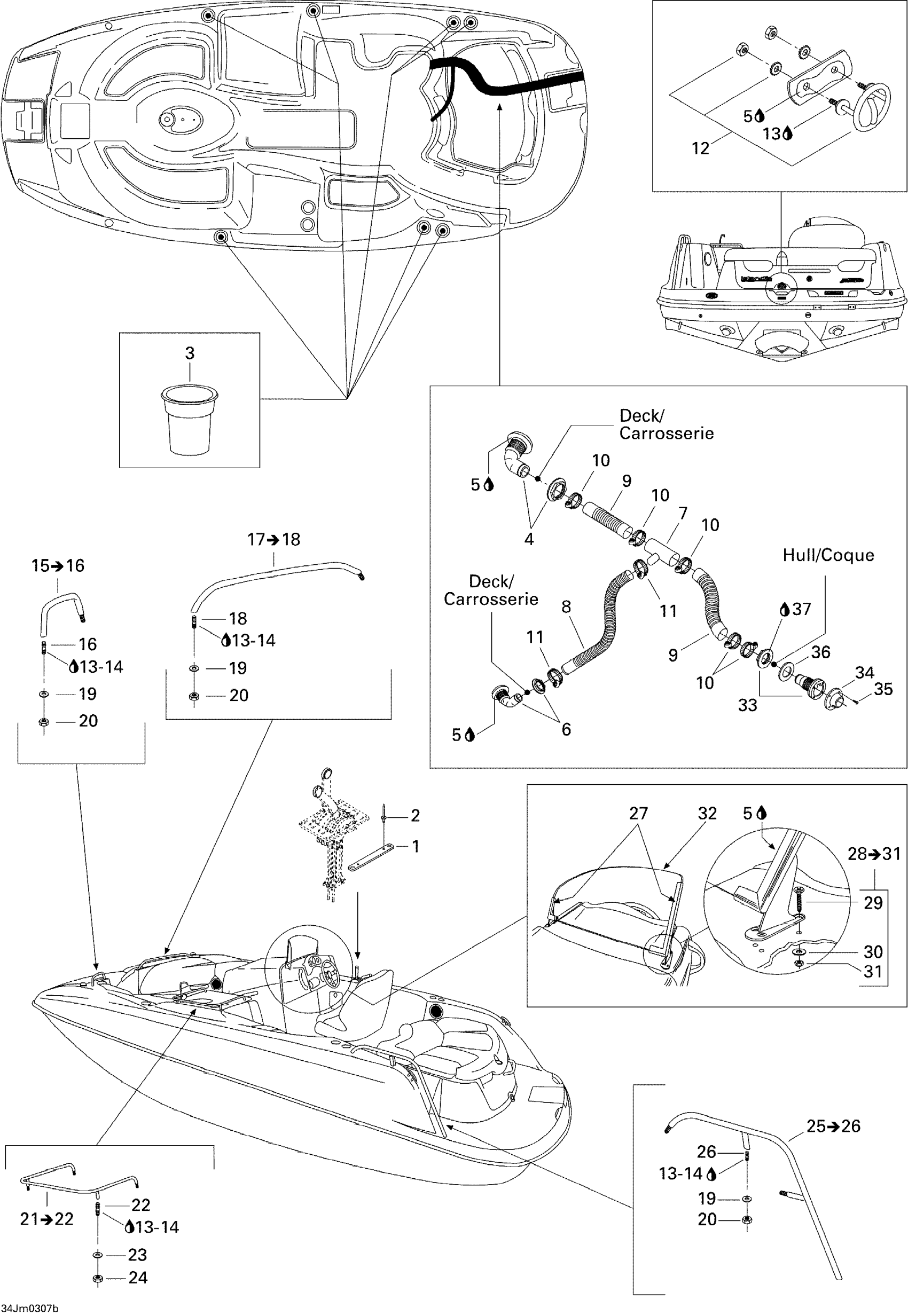

Sea-doo Islandia, 250 OPTI, 240 EFI, 2003 Body and Accessories 2 Diagram

#

Description
Price

1

SHIFTER INSERT - Call your local BRP dealership

293450061

Unavailable

2

Pop Rivet 3/16"

293150013

$1.37

3

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

4

THRU-HULL FITTING 90 X 1-1/2 - Call your local BRP dealership

293710084

Unavailable

5

Silicone Sealant 51388, 300 ml

296000309

$36.99

6

DRAIN FITTING 90 - Call your local BRP dealership

204071166

Unavailable

7

T-FITTING - Call your local BRP dealership

204071167

Unavailable

8

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

9

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

10

Norma Clamp

293650074

$17.05

11

Tridon Clamp

293650016

$10.99

12

Ski Tow Hook

204070206

Unavailable

13

Loctite 271, 10 ml

293800005

$26.99

14

Was 293800041 Loctite Primer 7649

219704458

$39.99

15

LH Bow Rail Ass’y | Includes 16 to 19

204070605

Unavailable

16

STUD 3/8?-16 X 2? - Call your local BRP dealership

204100050

Unavailable

17

RH Bow Rail Ass’y | Includes 22 to 25

204070606

Unavailable

18

STUD 3/8?-16 X 2? - Call your local BRP dealership

204100050

Unavailable

19

Flat Washer 10 mm, Stainless

234002600

$2.22

20

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

21

COUNTERTOP RAIL ASS?Y - Call your local BRP dealership | Includes 20 to 23

204070608

Unavailable

22

STUD 1/4?-20 X 2? - Call your local BRP dealership

204100033

Unavailable

23

Flat Washer 8 mm, Stainless

234082600

$2.43

24

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

25

Boarding Rail Ass'y | Includes 24 to 27

204071034

Unavailable

26

STUD 3/8?-16 X 2? - Call your local BRP dealership

204100050

Unavailable

27

Windshield Frame

204070984

Unavailable

28

Windshield Hardware Kit | Includes 37 to 40

204070985

Unavailable

29

Phillips Screw M6 X 25

208562560

$2.32

30

Stainless Flat Washer M6

234061600

$0.33

31

Elastic Stop Nut M6

232561414

$0.55

32

Front Windshield

204070858

Unavailable

33

THRU HULL FITTING - Call your local BRP dealership

204060071

Unavailable

34

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable

35

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

36

GASKET - Call your local BRP dealership

292800106

Unavailable

37

Silicone Sealant 51388, 300 ml

296000309

$36.99
