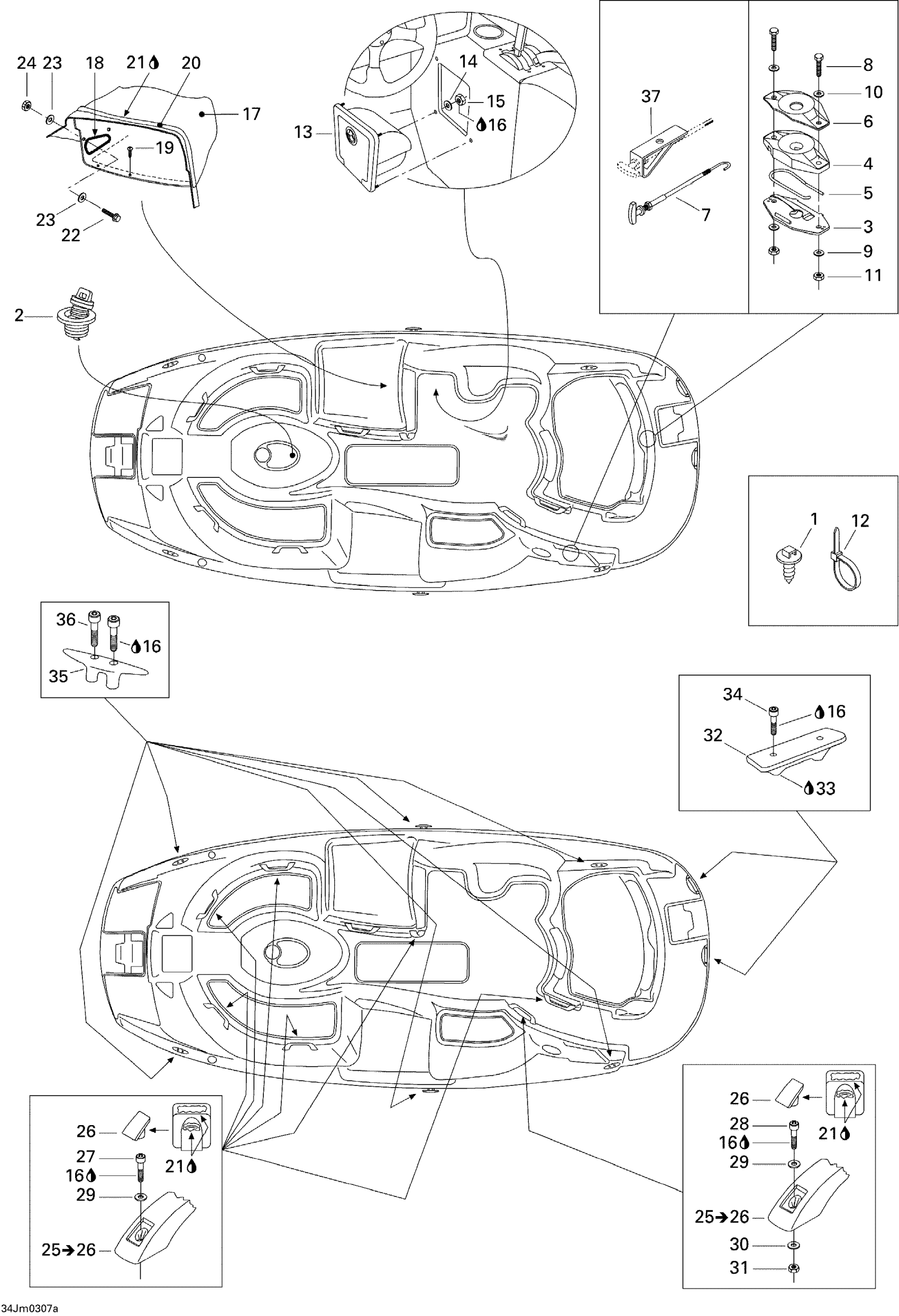

Sea-doo Islandia, 250 OPTI, 240 EFI, 2003 Body and accessories 1 Diagram

#

Description
Price

1

Mount Dart

293730040

$1.04

2

Drain Plug

204070857

Unavailable

3

LATCH COVER - Call your local BRP dealership

204070036

Unavailable

4

LATCH BASE - Call your local BRP dealership

204070037

Unavailable

5

SPRING - Call your local BRP dealership

204070038

Unavailable

6

LATCH PROTECTOR - Call your local BRP dealership

204070952

Unavailable

7

LATCH CABLE - Call your local BRP dealership

204070049

Unavailable

8

Hex. Screw M6 X 35

207163560

$1.49

9

Flat Washer M6, Stainless

234062600

$0.77

10

Stainless Flat Washer M6

234061600

$0.33

11

Hex. Elastic Stop Nut M6

232561600

$1.15

12

Tie Wrap 368 mm

293750008

$1.04

Tie-Rap 180 mm

414115200

$0.11

13

GLOVE BOX - Call your local BRP dealership

204071084

Unavailable

14

Flat Washer 5 mm, Stainless

234052600

$0.77

15

NEEDS DESCRIPTION This part replaces 204100034.

0460000

$0.60

16

Loctite 243, 10 ml

293800060

$21.49

17

Not Available As Spare Part - Friction Washer

Unavailable

18

SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.

204130176

Unavailable

19

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

20

TRIM, WHITE - Call your local BRP dealership

204050048

Unavailable

21

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

22

Hex. Screw M6 X 30

207163060

$1.48

23

Flat Washer M6, Stainless

234062600

$0.77

24

Hex. Elastic Stop Nut M6

232561600

$1.15

25

Handle Grip

204071710

Unavailable

26

Snap Cap

204071711

Unavailable

27

SOCKET SCREW M6 X 25 - Call your local BRP dealership

205462560

Unavailable

28

Socket Head Screw M6 X 70

205367060

Unavailable

29

Stainless Flat Washer M6

234061600

$0.33

30

Flat Washer M6, Stainless

234062600

$0.77

31

Hex. Elastic Stop Nut M6

232561600

$1.15

32

GRIP HANDLE, BLACK - Call your local BRP dealership

204070194

Unavailable

33

Silicone Sealant 51388, 300 ml

296000309

$36.99

34

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

205364060

Unavailable

35

CLEAT - Call your local BRP dealership | STD

204070592

Unavailable

36

Socket Head Screw M6 X 70

205367060

Unavailable

37

BRACKET, ENGINE RELEASE CABLE - Call your local BRP dealership

204070886

Unavailable
