Description

Price

1

HORN ASS'Y - Call your local BRP dealership | Includes 1 To 4

204470550

Unavailable

2

Female Housing, 2 Circuits

409209500

$15.27

3

Female Terminal

278001014

$3.28

4

Wire Seal

278001013

$3.28

5

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

6

Pop Rivet 3/16"

293150005

$0.52

7

Horn Cover

204470548

Unavailable

8

RADIO CD PLAYER COVER - Call your local BRP dealership

204470894

Unavailable

9

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

10

Compact Disk Stereo

204470946

Unavailable

11

Stereo Adaptor Harness

204470930

Unavailable

12

Pan Head Screw M5x8

204100148

Unavailable

13

90 RADIO SUPPORT - Call your local BRP dealership

204470926

Unavailable

14

Pop Rivet 3/16"

204000081

$1.49

15

Loctite 243, 10 ml

293800060

$21.49

16

Antenna

204470931

Unavailable

17

Speaker, White

204470948

Unavailable

18

SPEAKER COVER ASS'Y - Call your local BRP dealership

204470982

Unavailable

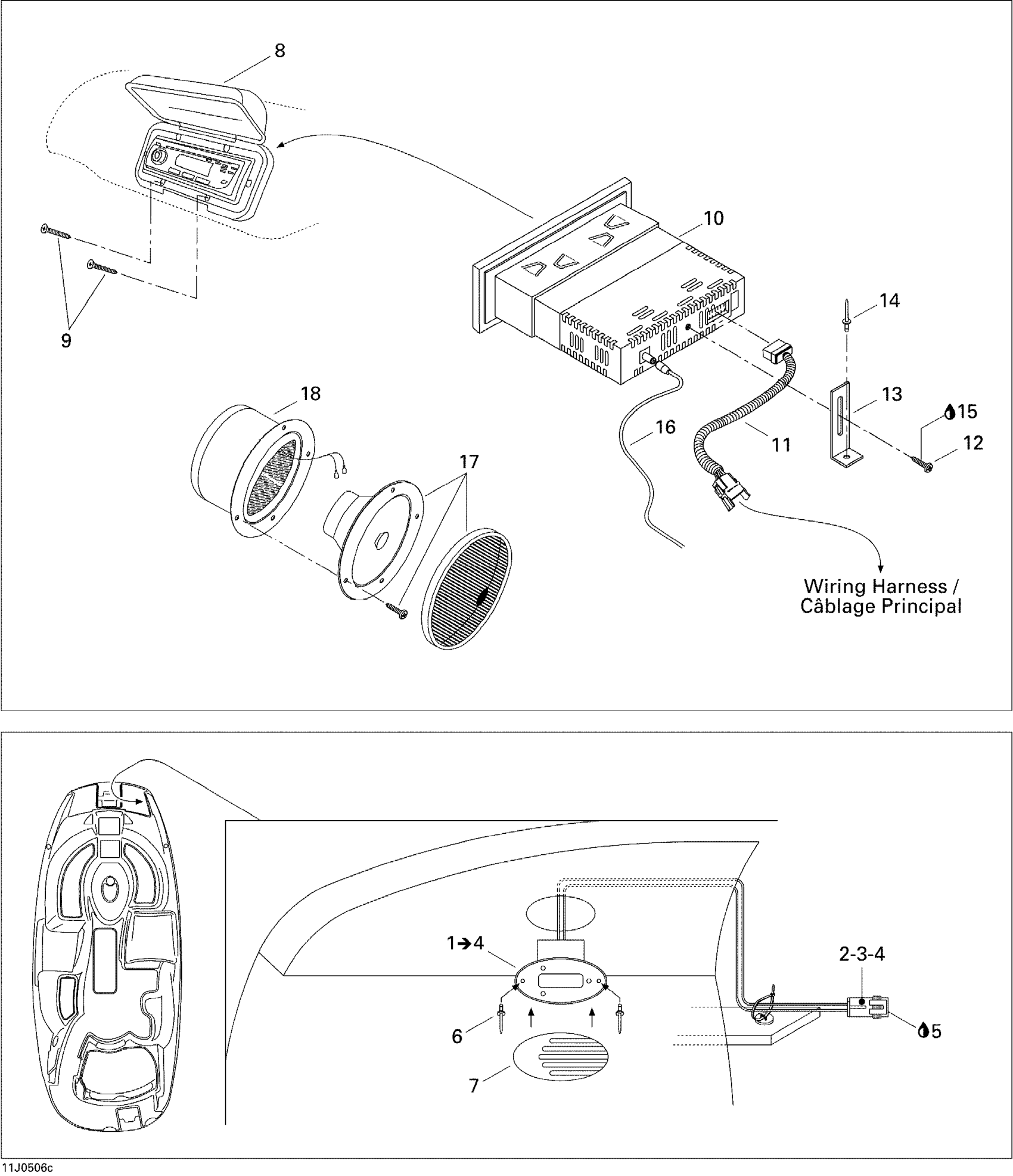

Sea-doo Islandia, 250 OPTI, 2005 10- Electrical Accessories 3 Diagram

HORN ASS'Y - Call your local BRP dealership | Includes 1 To 4

Female Housing, 2 Circuits

Female Terminal

Wire Seal

Was 293550004 Dielectric Grease, 150 g

Pop Rivet 3/16"

Horn Cover

RADIO CD PLAYER COVER - Call your local BRP dealership

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

Compact Disk Stereo

Stereo Adaptor Harness

Pan Head Screw M5x8

90 RADIO SUPPORT - Call your local BRP dealership

Pop Rivet 3/16"

Loctite 243, 10 ml

Antenna

Speaker, White

SPEAKER COVER ASS'Y - Call your local BRP dealership
