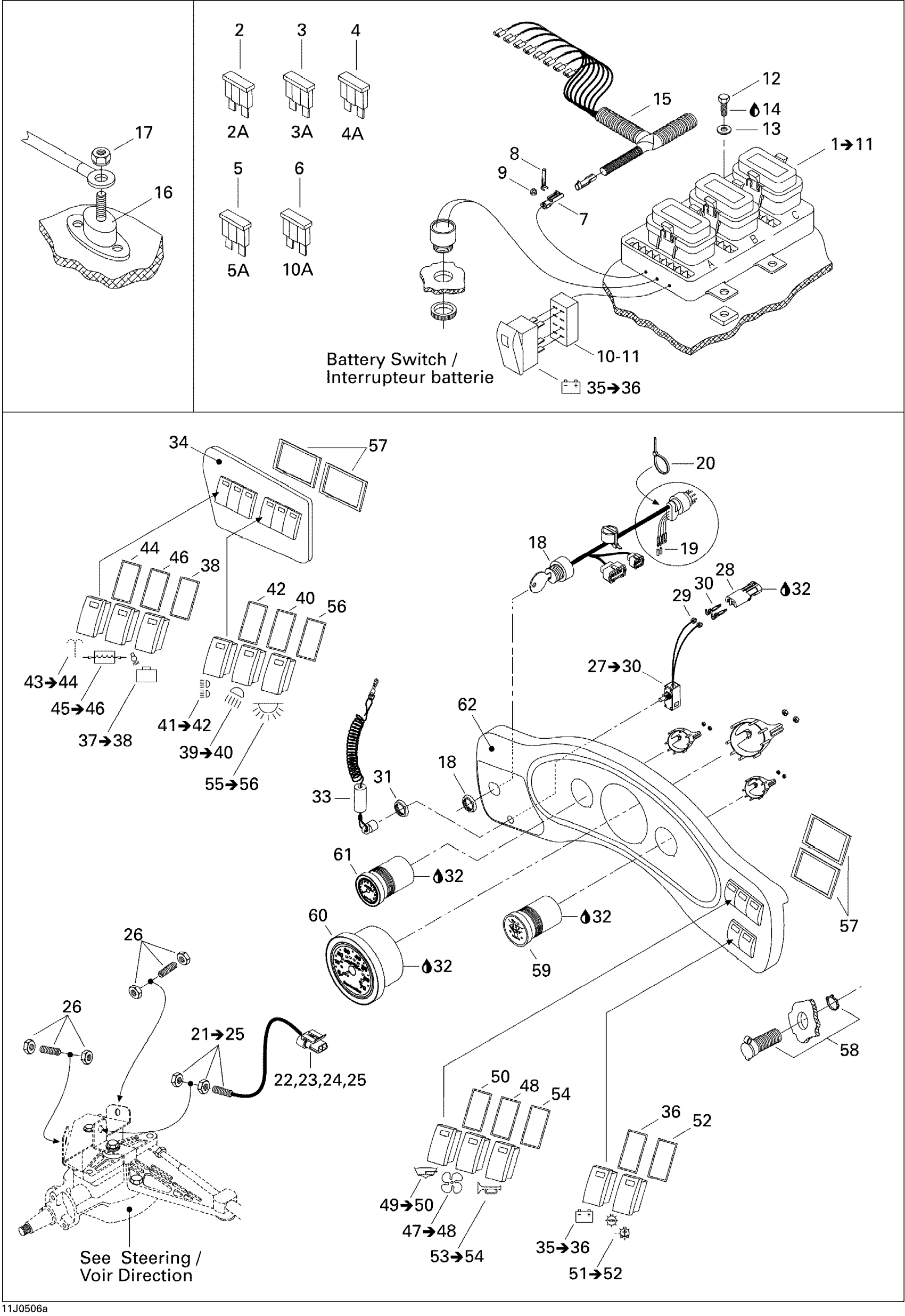

Sea-doo Islandia, 250 OPTI, 2005 Electrical Accessories 1 Diagram

#

Description
Price

1

FUSE BLOCK - Call your local BRP dealership | Includes 18 To 28

204470610

Unavailable

2

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

3

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Fuse, 5 Amperes | CE

278000344

$3.28

6

Fuse, 10 Amperes | North America

278001197

$2.21

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Male Terminal | Europe Models

409012900

$3.28

9

Not Available As Spare Part - Friction Washer

Unavailable

10

MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001321

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Hex. Cap Screw M6 X 12

207161260

$1.26

13

Flat Washer M6, Stainless

234062600

$0.77

14

Loctite 243, 10 ml

293800060

$21.49

15

Harness

204470832

Unavailable

16

Ground Post

204470715

Unavailable

17

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

18

Instrument Harness, Mercury

204470800

Unavailable

19

RUBBER CAP - Call your local BRP dealership

204130033

Unavailable

20

Tie Wrap 94 mm | 4X4

293750001

$1.03

21

LOW SPEED CONTROL SENSOR ASS'Y - Call your local BRP dealership | Includes 46 to 50

204470631

Unavailable

22

Female Terminal Housing

204470634

Unavailable

23

Terminal Support

204470635

Unavailable

24

Wire Seal

204470641

Unavailable

25

Female Terminal

278001481

$3.49

26

Low Speed Control Actuator

204470632

$42.99

27

SAFETY SWITCH ASS'Y - Call your local BRP dealership | Includes 10 to 13

204470867

Unavailable

28

Female Housing, 2 Circuits

278000217

$9.59

29

Wire Seal

278000218

$4.39

30

Male Terminal | XT Models

278000222

$3.19

31

Safety Switch Nut

278000099

Unavailable

32

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

33

Safety Lanyard

278001431

$47.49

34

Switch Panel

204470793

Unavailable

35

BATTERY SWITCH - Call your local BRP dealership | Includes 53 to 54

204470544

Unavailable

36

Gasket

204470132

Unavailable

37

LIGHT SWITCH - Call your local BRP dealership | Includes 51 to 52

204470402

Unavailable

38

Gasket

204470132

Unavailable

39

LIGHT SWITCH, BOARDING - Call your local BRP dealership | Includes 47 to 48

204470403

Unavailable

40

Gasket

204470132

Unavailable

41

LIGHT SWITCH, DOCKING - Call your local BRP dealership | Includes 49 to 50

204470404

Unavailable

42

Gasket

204470132

Unavailable

43

SWITCH, SMALL POOL PUMP - Call your local BRP dealership | Includes 53 to 54

204470405

Unavailable

44

Gasket

204470132

Unavailable

45

SWITCH, PASSENGER WATER PUMP - Call your local BRP dealership | Includes 54 to 55

204470406

Unavailable

46

Gasket

204470132

Unavailable

47

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

48

Gasket

204470132

Unavailable

49

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

50

Gasket

204470132

Unavailable

51

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

52

Gasket

204470132

Unavailable

53

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$49.99

54

Gasket

204470132

Unavailable

55

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

56

Gasket

204470132

Unavailable

57

LOCKING PLATE - Call your local BRP dealership

204470343

Unavailable

58

DC Outlet

710001248

$37.99

59

Fuel/oil Gauge

204470929

Unavailable

60

Speedometer

204470943

Unavailable

61

Tachometer

204470944

Unavailable

62

Fascia Ass’y

204470782

Unavailable
