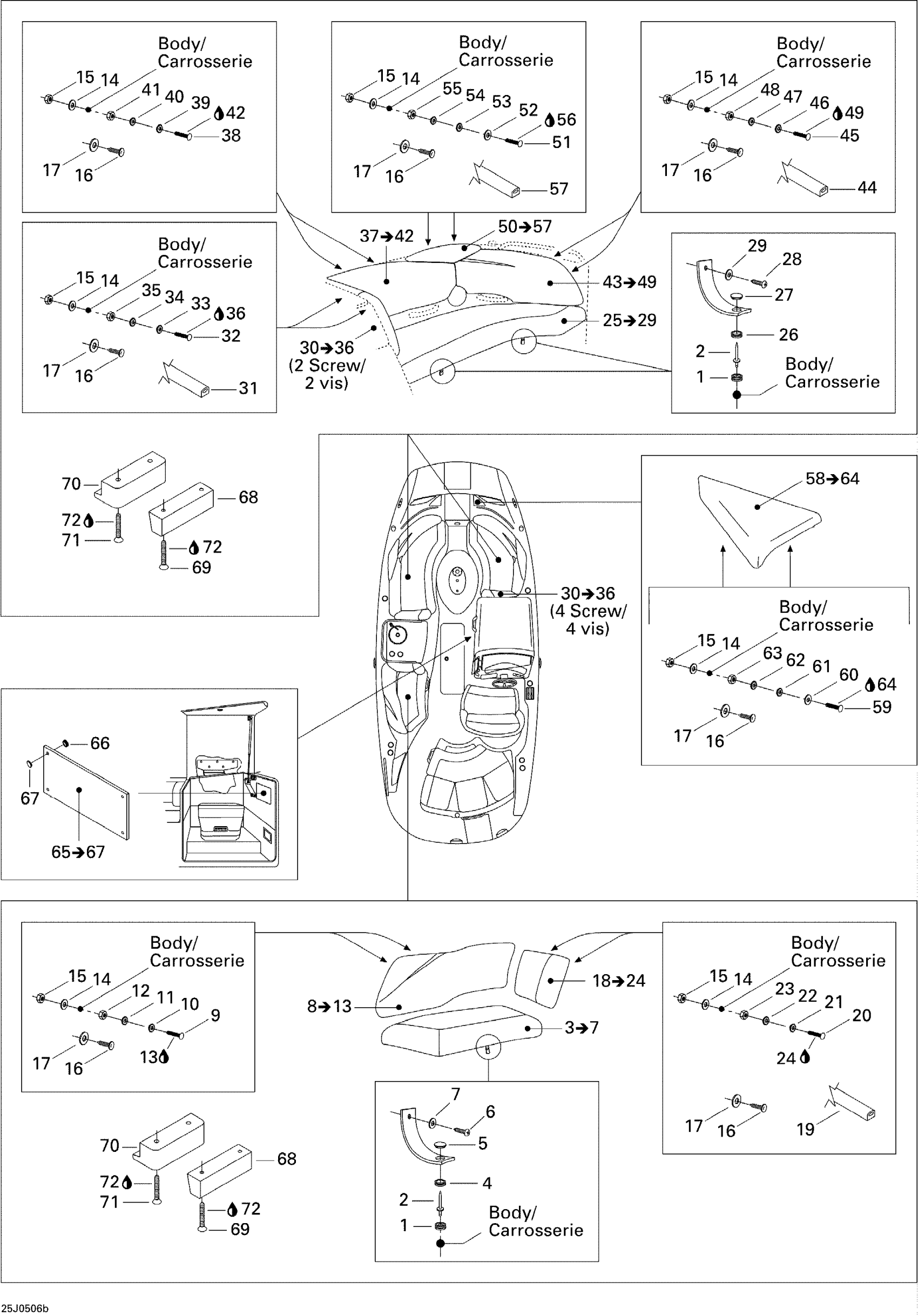

Sea-doo Islandia, 250 OPTI, 2005 09- Seat 2 Diagram
#
1
BOTTOM SNAP - Call your local BRP dealership
204000084
Unavailable
2
RIVET_POP 1/8 - Call your local BRP dealership
293150026
Unavailable
3
Cushion Ass'y Port | Includes 3 to 7
204612928
Unavailable
4
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
5
SNAP COVER - Call your local BRP dealership
204000085
Unavailable
6
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
7
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
8
Backrest Cushion Ass'y | Includes 8 to 13
204612930
Unavailable
9
Elevator Bolt
204000130
Unavailable
10
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
11
External Serrated Lock Washer 6 mm
234461608
$1.15
12
Hex. Jam Nut
204100060
Unavailable
13
Loctite 243, 10 ml
293800060
$21.49
14
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
15
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
16
Dart
293730021
$7.79
17
Nylon Washer 5/16”
204100040
Unavailable
18
Backrest Pad Ass'y | Includes 18 to 24
295501055
Unavailable
19
TRAY SEAL, METER - Call your local BRP dealership
293200032
Unavailable
20
Elevator Bolt
204000130
Unavailable
21
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
22
External Serrated Lock Washer 6 mm
234461608
$1.15
23
Hex. Jam Nut
204100060
Unavailable
24
Loctite 243, 10 ml
293800060
$21.49
25
Cushion Ass'y Starboard | Includes 25 to 29
204612934
Unavailable
25
Cushion Ass'y Port | Includes 25 to 29
204612946
Unavailable
26
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
27
SNAP COVER - Call your local BRP dealership
204000085
Unavailable
28
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
29
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
30
Backrest Pad Ass'y Starboard | Includes 30 to 36
204612936
Unavailable
30
Backrest Pad Ass'y Port | Includes 30 to 36
204612948
Unavailable
31
TRAY SEAL, METER - Call your local BRP dealership
293200032
Unavailable
32
Elevator Bolt
204000130
Unavailable
33
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
34
External Serrated Lock Washer 6 mm
234461608
$1.15
35
Hex. Jam Nut
204100060
Unavailable
36
Loctite 243, 10 ml
293800060
$21.49
37
Backrest Ass'y Starboard | Includes 37 to 42
204612938
Unavailable
37
Backrest Ass'y Port | Includes 37 to 42
204612950
Unavailable
38
Elevator Bolt
204000130
Unavailable
39
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
40
External Serrated Lock Washer 6 mm
234461608
$1.15
41
Hex. Jam Nut
204100060
Unavailable
42
Loctite 243, 10 ml
293800060
$21.49
43
Front Backrest Ass'y Starboard | Includes 43 to 49
204612940
Unavailable
43
Front Backrest Ass'y Port | Includes 43 to 49
204612952
Unavailable
44
TRAY SEAL, METER - Call your local BRP dealership
293200032
Unavailable
45
Elevator Bolt
204000130
Unavailable
46
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
47
External Serrated Lock Washer 6 mm
234461608
$1.15
48
Hex. Jam Nut
204100060
Unavailable
49
Loctite 243, 10 ml
293800060
$21.49
50
Headrest Ass'y, Starboard | Includes 50 to 57
204612942
Unavailable
50
Headrest Ass'y, Port | Includes 50 to 57
204612954
Unavailable
51
Elevator Bolt
204000130
Unavailable
52
Flat Washer M8.5 x 18
293050001
$3.07
53
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
54
External Serrated Lock Washer 6 mm
234461608
$1.15
55
Hex. Jam Nut
204100060
Unavailable
56
Loctite 243, 10 ml
293800060
$21.49
57
TRAY SEAL, METER - Call your local BRP dealership
293200032
Unavailable
58
Pad Ass'y Starboard | Includes 58 to 64
204612944
Unavailable
58
Pad Ass'y Port | Includes 58 to 64
204612956
Unavailable
59
Elevator Bolt
204000130
Unavailable
60
Flat Washer M8.5 x 18
293050001
$3.07
61
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
62
External Serrated Lock Washer 6 mm
234461608
$1.15
63
Hex. Jam Nut
204100060
Unavailable
64
Loctite 243, 10 ml
293800060
$21.49
65
Helm Access | Includes 65 to 67
204612403
Unavailable
66
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
67
SNAP COVER - Call your local BRP dealership
204000085
Unavailable
68
LATCH - Call your local BRP dealership
204611805
Unavailable
69
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
70
SEAT LATCH - Call your local BRP dealership
204611940
Unavailable
71
SCREW 1/4?-20 X 2? - Call your local BRP dealership
204100039
Unavailable
72
Loctite 243, 10 ml
293800060
$21.49
