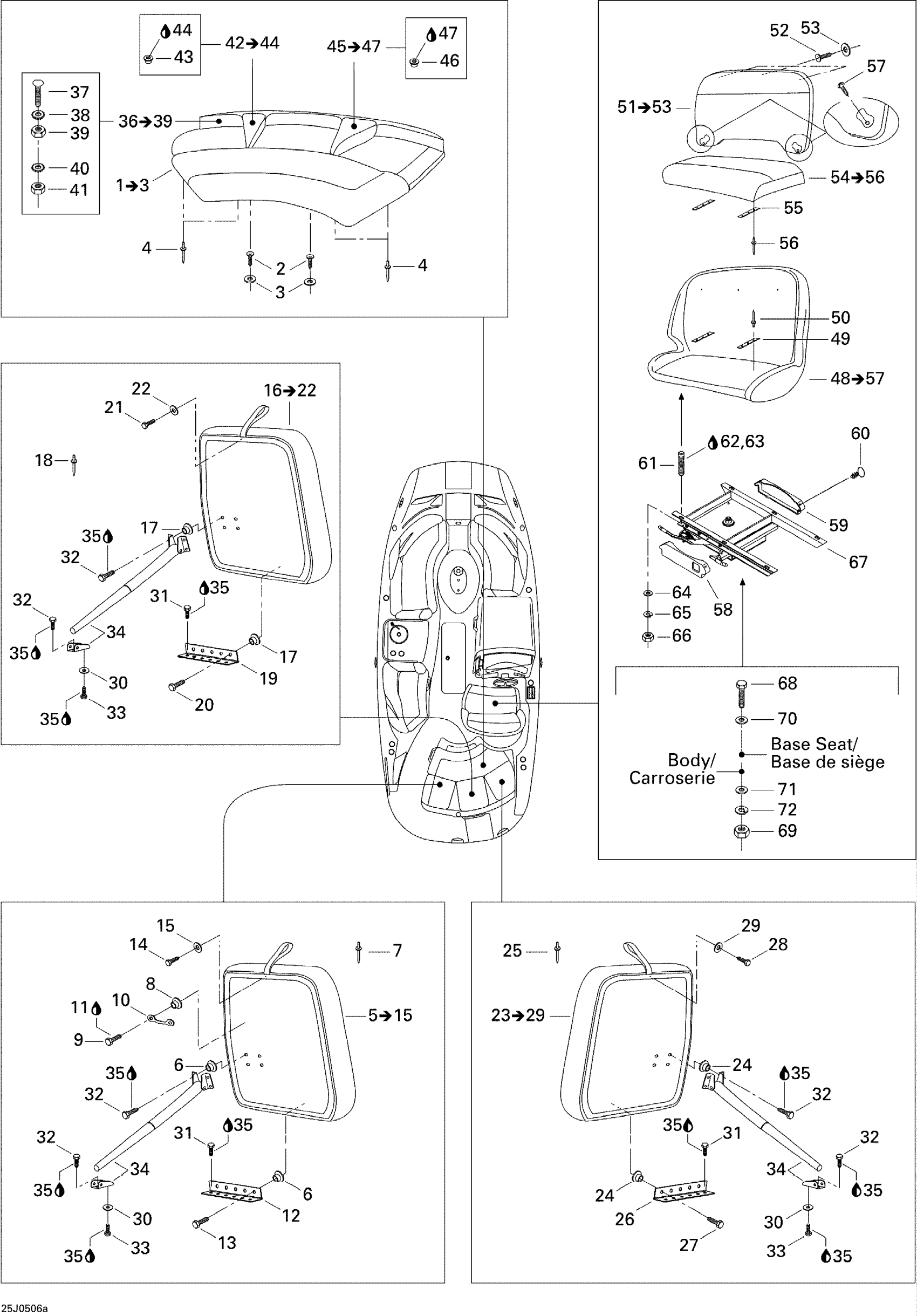

Sea-doo Islandia, 250 OPTI, 2005 09- Seat 1 Diagram
#
1
Cushion Ass'y | Includes 1 to 3
204612883
Unavailable
2
Black Dart
293730014
$0.99
3
Flat Washer M6, Stainless
234062600
$0.77
4
Pop Rivet 3/16"
293150013
$1.37
5
Backrest Ass'y Port | Includes 5 to 15
204612909
Unavailable
6
TEE-NUT 1/4?- 20 - Call your local BRP dealership
204100021
Unavailable
7
Pop Rivet 3/16"
293150043
$2.09
8
TEE-NUT #10-32 - Call your local BRP dealership
204100044
Unavailable
9
SOCKET HEAD SCREW 10-32 X .75 - Call your local BRP dealership
204100045
Unavailable
10
Chain Pad
204610988
Unavailable
11
Loctite 243, 10 ml
293800060
$21.49
12
BACKREST HINGE - Call your local BRP dealership
204610750
Unavailable
13
SOCKET HEAD SCREW 1/4? X 3/4? - Call your local BRP dealership
204100035
Unavailable
14
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
15
Flat Washer 4 mm, Stainless
234042600
$1.15
16
Center Backrest Ass'y | Includes 16 to 22
204612911
Unavailable
17
TEE-NUT 1/4?- 20 - Call your local BRP dealership
204100021
Unavailable
18
Pop Rivet 3/16"
293150043
$2.09
19
BACKREST HINGE - Call your local BRP dealership
204610750
Unavailable
20
SOCKET HEAD SCREW 1/4? X 3/4? - Call your local BRP dealership
204100035
Unavailable
21
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
22
Flat Washer 4 mm, Stainless
234042600
$1.15
23
Backrest Ass'y Starboard | Includes 23 to 29
204612913
Unavailable
24
TEE-NUT 1/4?- 20 - Call your local BRP dealership
204100021
Unavailable
25
Pop Rivet 3/16"
293150043
$2.09
26
BACKREST HINGE - Call your local BRP dealership
204610750
Unavailable
27
SOCKET HEAD SCREW 1/4? X 3/4? - Call your local BRP dealership
204100035
Unavailable
28
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
29
Flat Washer 4 mm, Stainless
234042600
$1.15
30
Flat Washer M6, Stainless
234062600
$0.77
31
SOCKET HEAD SCREW 1/4? X 1-1/4? - Call your local BRP dealership
204100036
Unavailable
32
SOCKET HEAD SCREW 1/4? X 1? - Call your local BRP dealership
204100037
Unavailable
33
SOCKET HEAD SCREW 1/4? X 3/4? - Call your local BRP dealership
204100035
Unavailable
34
Locking Support
204610749
Unavailable
35
Loctite 243, 10 ml
293800060
$21.49
36
Spoiler Ass'y | Includes 36 to 39
204612915
Unavailable
37
Elevator Bolt
204000130
Unavailable
38
External Serrated Lock Washer 6 mm
234461608
$1.15
39
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
40
Flat Washer 8 mm, Stainless
234082600
$2.43
41
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
42
Filler Pad Ass'y Starboard | Includes 42 to 44
204612916
Unavailable
43
TEE-NUT 1/4?- 20 - Call your local BRP dealership
204100021
Unavailable
44
Loctite 243, 10 ml
293800060
$21.49
45
Filler Pad Ass'y | Includes 45 to 47
204612918
Unavailable
46
TEE-NUT 1/4?- 20 - Call your local BRP dealership
204100021
Unavailable
47
Loctite 243, 10 ml
293800060
$21.49
48
Driver Seat Ass'y | Includes 48 to 57
204612922
Unavailable
49
Velcro Strip
293740007
Unavailable
50
RIVET - Call your local BRP dealership
293150065
Unavailable
51
Backrest Ass'y | Includes 51 to 53
204612924
Unavailable
52
Black Dart
293730014
$0.99
53
Flat Washer M6, Stainless
234062600
$0.77
54
Cushion Ass'y | Includes 54 to 57
204612926
Unavailable
55
VELCRO STRIP - Call your local BRP dealership
293740004
Unavailable
56
Pop Rivet 3/16"
293150008
$0.50
57
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
58
Front Protector
204610375
Unavailable
59
Rear Protector
204610376
Unavailable
60
Black, Dart
293730006
$0.99
61
THREADED STUD 1/4-20 X 1-1/4 - Call your local BRP dealership
204100077
Unavailable
62
Loctite 271, 10 ml
293800005
$26.99
63
Was 293800041 Loctite Primer 7649
219704458
$39.99
64
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
65
Lock Washer 1/4”
211200025
$1.29
66
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
67
SWIVEL BASE SEAT - Call your local BRP dealership
204611540
Unavailable
68
HEX. SCREW M8 X 55 - Call your local BRP dealership
207185560
Unavailable
69
Hex. Elastic Nut M8
232581600
$1.48
70
Stainless, Flat Washer 8 mm
234081600
$0.55
71
Flat Washer 8 mm, Stainless
234082600
$2.43
72
Lock Washer 8 mm, Stainless
234181601
$0.55
