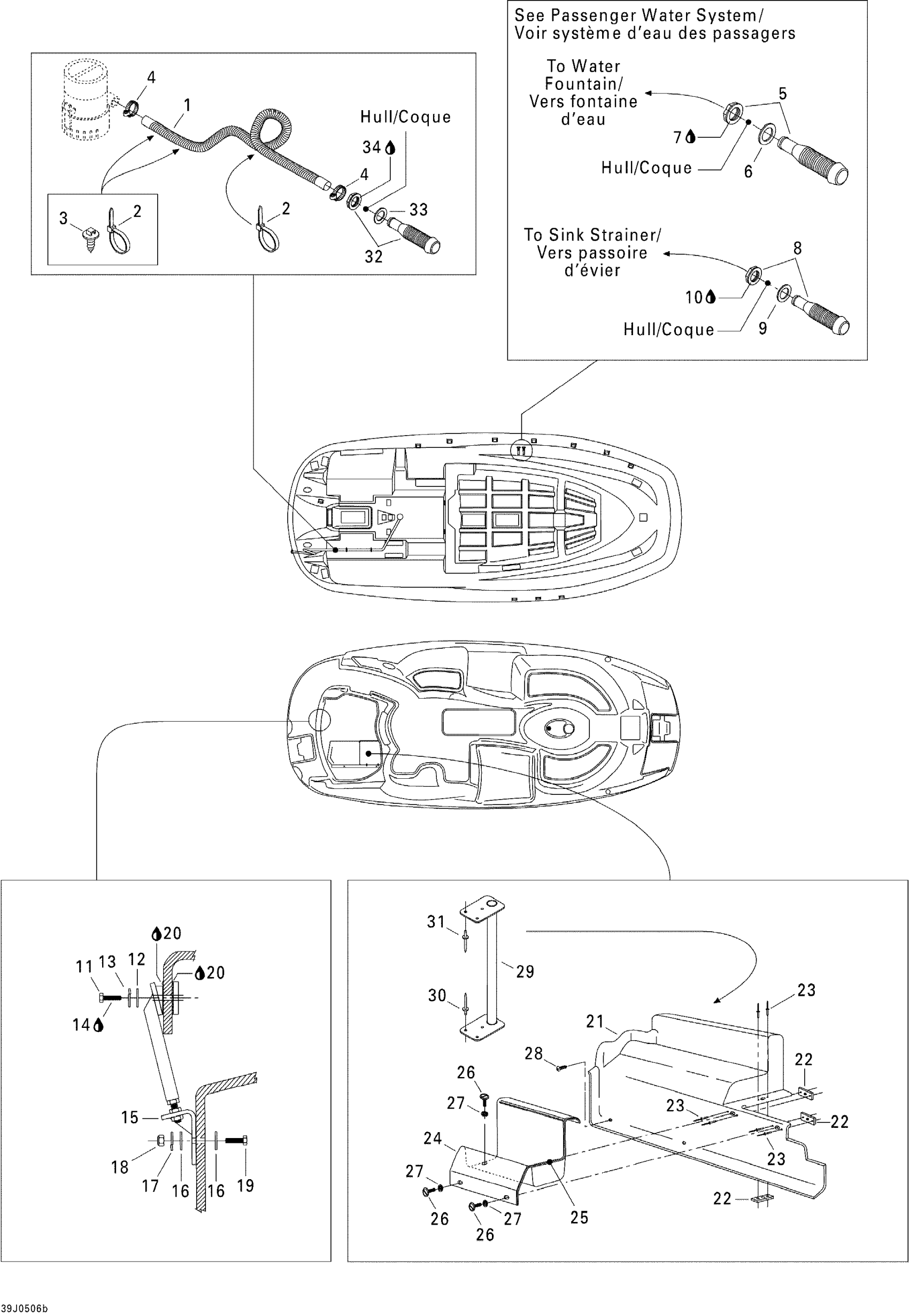

Sea-doo Islandia, 250 OPTI, 2005 09- Hull 2 Diagram
#
Description
Price
1
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
2
Tie-Rap 180 mm
414115200
$0.11
3
Black, Dart
293730006
$0.99
4
Tridon Clamp
293650016
$10.99
5
Fitting
293710162
$13.49
6
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
7
Silicone Sealant 51388, 300 ml
296000309
$36.99
8
Thru Hull Fitting 5/8"
204100028
Unavailable
9
GASKET - Call your local BRP dealership
293250028
Unavailable
10
Silicone Sealant 51388, 300 ml
296000309
$36.99
11
HEX. SCREW M8 X 35 - Call your local BRP dealership
207183560
Unavailable
12
Stainless, Flat Washer 8 mm
234081600
$0.55
13
Lock Spring Washer 8 mm, Stainless
234180602
$1.16
14
Loctite 243, 10 ml
293800060
$21.49
15
Lower Bracket
204050230
Unavailable
16
Flat Washer 8 mm, Stainless
234082600
$2.43
17
Lock Spring Washer 8 mm, Stainless
234180602
$1.16
18
Hex. Elastic Nut M8
232581600
$1.48
19
HEX. SCREW M8 X 55 - Call your local BRP dealership
207185560
Unavailable
20
Silicone Sealant 51388, 300 ml
296000309
$36.99
21
Ski Storage Step
204050602
Unavailable
22
Threaded Insert
204050441
Unavailable
23
Rivet 1/8"
293150016
$0.40
24
Battery Cover
204050604
Unavailable
25
Rubber Trim
204070752
Unavailable
26
SLOTTED BOLT 1/4?-20 X 1? - Call your local BRP dealership
204100095
Unavailable
27
Retaining Washer
204100096
Unavailable
28
Tapping Phillips Screw 6.3 X 38
209663860
Unavailable
29
Ski Step Support
204050242
Unavailable
30
Pop Rivet 3/16"
293150008
$0.50
31
Pop Rivet 3/16"
293150008
$0.50
32
Fitting
293710162
$13.49
33
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
34
Silicone Sealant 51388, 300 ml
296000309
$36.99
