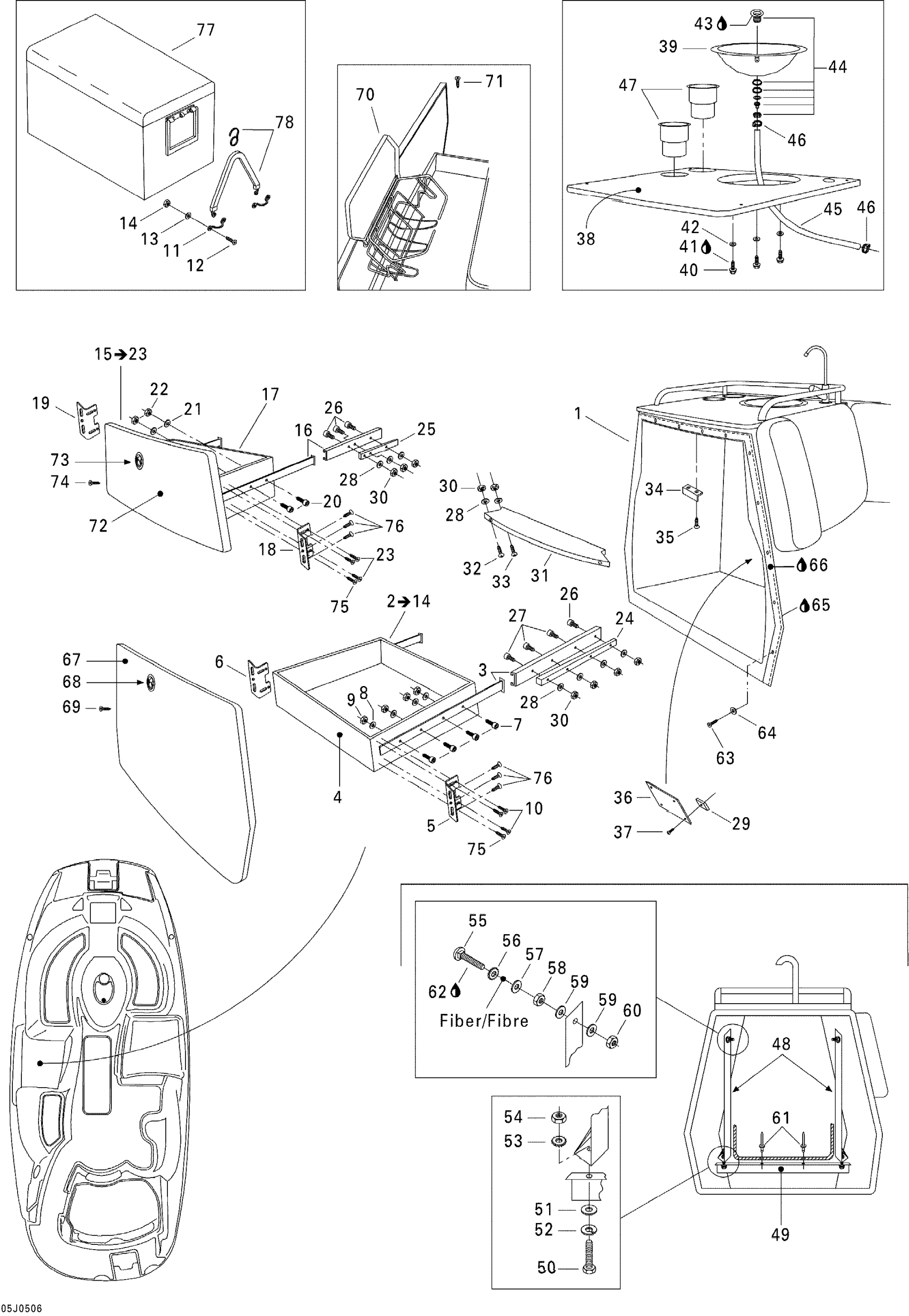

Sea-doo Islandia, 250 OPTI, 2005 09- Cabinet, Galley Diagram
#
1
Cabinet, Galley
204072149
Unavailable
2
Ice Chest Drawer Ass'y | Includes 2 to 14
204070611
Unavailable
3
Drawer Slides, Long
204070612
Unavailable
4
Drawer, Bottom
204070964
Unavailable
5
RH DRAWER BRACKET, 94DEG - Call your local BRP dealership
204070725
Unavailable
6
LH DRAWER BRACKET, 80DEG - Call your local BRP dealership
204070726
Unavailable
7
Socket Head Screw M4 X 16
205441660
$1.47
8
Flat Washer 4 mm, Stainless
234042600
$1.15
9
Elastic Stop Nut M4
232541600
$1.15
10
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
11
Strap Tie
204070234
Unavailable
12
Socket Head Screw M4 X 16
205441660
$1.47
13
Flat Washer 4 mm, Stainless
234042600
$1.15
14
Elastic Stop Nut M4
232541600
$1.15
15
Upper Drawer Ass'y, Galley | Includes 15 to 23
204070618
Unavailable
16
DRAWER SLIDES, SHORT - Call your local BRP dealership
204070613
Unavailable
17
DRAWER, BOTTOM - Call your local BRP dealership
204070619
Unavailable
18
RH DRAWER BRACKET, 94DEG - Call your local BRP dealership
204070725
Unavailable
19
LH DRAWER BRACKET, 80DEG - Call your local BRP dealership
204070726
Unavailable
20
Socket Head Screw M4 X 16
205441660
$1.47
21
Flat Washer 4 mm, Stainless
234042600
$1.15
22
Elastic Stop Nut M4
232541600
$1.15
23
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
24
SLIDE SHIM, LONG - Call your local BRP dealership
204070727
Unavailable
25
SLIDE SHIM, SHORT - Call your local BRP dealership
204070728
Unavailable
26
Socket Screw M4 X 25
205442560
$1.15
27
SOCKET HEAD SCREW M4 X 35 - Call your local BRP dealership
205443560
Unavailable
28
Flat Washer 4 mm, Stainless
234042600
$1.15
29
Not Available As Spare Part - Friction Washer
Unavailable
30
Elastic Stop Nut M4
232541600
$1.15
31
LATCH SUPPORT - Call your local BRP dealership
204070965
Unavailable
32
Phillips Screw M4 X 30
208443060
$1.48
33
PHILLIPS SCREW M4 X 50 - Call your local BRP dealership
208445060
Unavailable
34
KEEPER - Call your local BRP dealership
204070060
Unavailable
35
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
36
ACCESS COVER - Call your local BRP dealership
204070916
Unavailable
37
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership
208642560
Unavailable
38
Counter Top
204071713
Unavailable
39
Sink
204070625
Unavailable
40
Screw K40 X 10
241140060
$1.48
41
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
42
Flat Washer 4 mm, Stainless
234042600
$1.15
43
Silicone Sealant 51388, 300 ml
296000309
$36.99
44
SINK STRAINER ASS?Y - Call your local BRP dealership
204070626
Unavailable
45
Bilgeflex Hose 5/8”, Meter
204940033
Unavailable
46
Tridon Clamp
293650016
$10.99
47
CUP HOLDER - Call your local BRP dealership | STD
291000619
Unavailable
48
STRAP 565 MM - Call your local BRP dealership
204070971
Unavailable
49
Angle 813 mm
204070972
Unavailable
50
HEX. SCREW M8 X 55 - Call your local BRP dealership
207185560
Unavailable
51
Flat Washer 8 mm, Stainless
234082600
$2.43
52
Lock Washer 8 mm, Stainless
234181601
$0.55
53
TOOTHED LOCK WASHER - Call your local BRP dealership
234381608
Unavailable
54
Hex. Nut M8
232081600
$1.47
55
Elevator Bolt
204000130
Unavailable
56
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
57
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
58
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
59
Flat Washer M6, Stainless
234062600
$0.77
60
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
61
RIVET - Call your local BRP dealership
293150065
Unavailable
62
Loctite 243, 10 ml
293800060
$21.49
63
TAPPING PHILLIPS SCREW M4.8 X 38 - Call your local BRP dealership
250000086
Unavailable
64
FINITION WASHER - Call your local BRP dealership
204100057
Unavailable
65
Not Available As Spare Part - Friction Washer
Unavailable
66
Silicone Sealant 51388, 300 ml
296000309
$36.99
67
Front Drawer, Ice Chest
204072151
Unavailable
68
DOOR LATCH - Call your local BRP dealership
204070951
Unavailable
69
SCREW M5 X 16 - Call your local BRP dealership
208651660
Unavailable
70
Wastebasket
204070616
Unavailable
71
PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership
209630960
Unavailable
72
Front Drawer, Galley
204072153
Unavailable
73
LATCH, WHITE - Call your local BRP dealership
204070120
Unavailable
74
SCREW M5 X 16 - Call your local BRP dealership
208651660
Unavailable
75
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
76
Phillips Screw #8 X 1/2”
204100030
Unavailable
77
Ice Chest
204070617
Unavailable
78
ICE CHEST STRAP - Call your local BRP dealership
204070905
Unavailable
