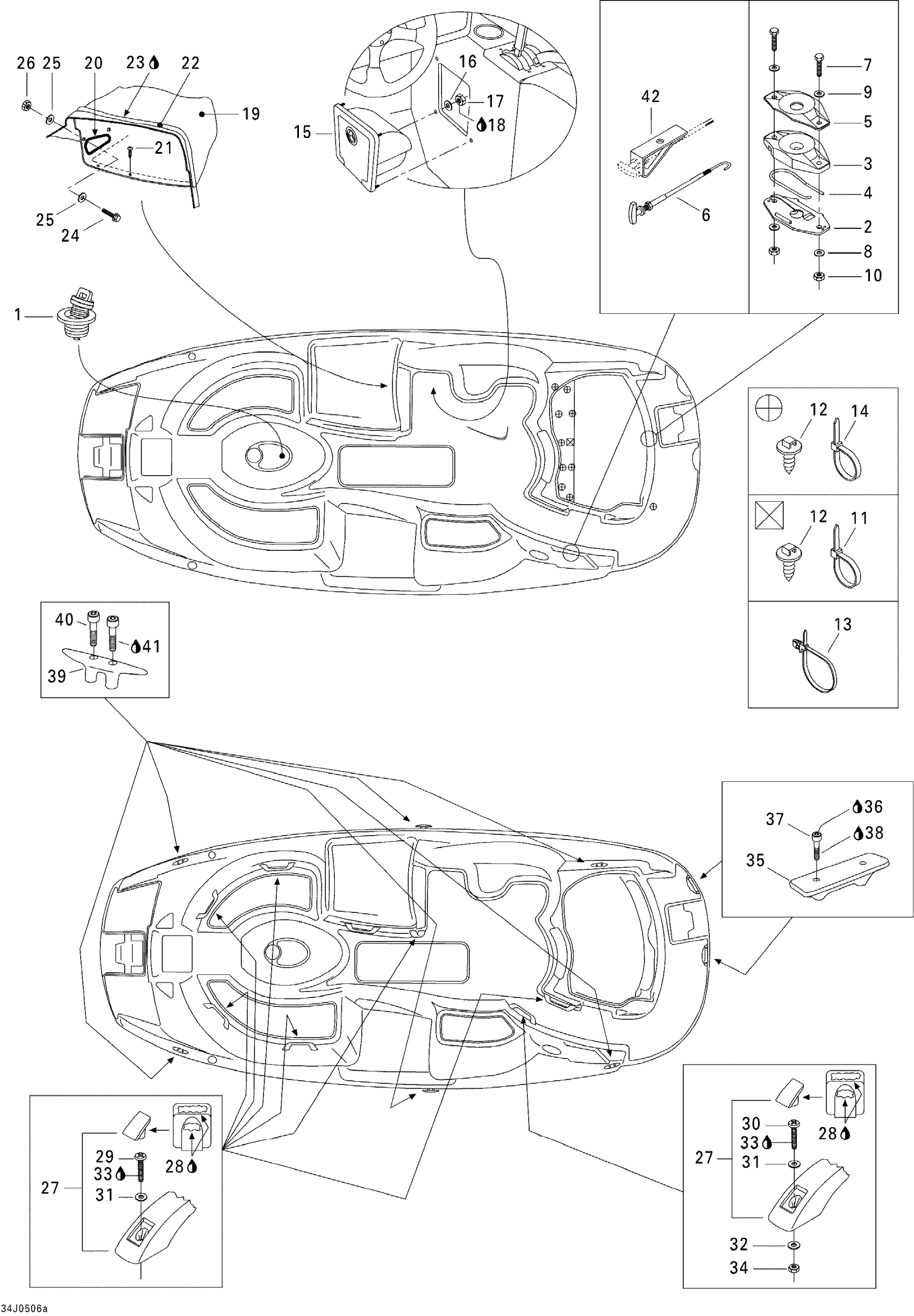

Sea-doo Islandia, 250 OPTI, 2005 09- Body And Accessories 1 Diagram
#
1
Drain Plug
204070857
Unavailable
2
LATCH COVER - Call your local BRP dealership
204070036
Unavailable
3
LATCH BASE - Call your local BRP dealership
204070037
Unavailable
4
SPRING - Call your local BRP dealership
204070038
Unavailable
5
LATCH PROTECTOR - Call your local BRP dealership
204070952
Unavailable
6
LATCH CABLE - Call your local BRP dealership
204070049
Unavailable
7
Hex. Screw M6 X 35
207163560
$1.49
8
Flat Washer M6, Stainless
234062600
$0.77
9
Stainless Flat Washer M6
234061600
$0.33
10
Hex. Elastic Stop Nut M6
232561600
$1.15
11
Tie Wrap 368 mm
293750008
$1.04
12
Mount Dart
293730040
$1.04
13
TIE RAP WITH DART - Call your local BRP dealership
204130098
Unavailable
14
Tie-Rap 180 mm
414115200
$0.11
15
GLOVE BOX - Call your local BRP dealership
204071084
Unavailable
16
Flat Washer 5 mm, Stainless
234052600
$0.77
17
NEEDS DESCRIPTION This part replaces 204100034.
0460000
$0.60
18
Loctite 243, 10 ml
293800060
$21.49
19
Not Available As Spare Part - Friction Washer
Unavailable
20
SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.
204130176
Unavailable
21
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
22
TRIM, WHITE - Call your local BRP dealership
204050048
Unavailable
23
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
24
Hex. Screw M6 X 30
207163060
$1.48
25
Flat Washer M6, Stainless
234062600
$0.77
26
Hex. Elastic Stop Nut M6
232561600
$1.15
27
Handle Grip
204071710
Unavailable
28
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
29
SOCKET SCREW M6 X 25 - Call your local BRP dealership
205462560
Unavailable
30
SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership | STD
204100144
Unavailable
31
Stainless Flat Washer M6
234061600
$0.33
32
Flat Washer M6, Stainless
234062600
$0.77
33
Loctite 243, 10 ml
293800060
$21.49
34
Hex. Elastic Stop Nut M6
232561600
$1.15
35
GRIP HANDLE, BLACK - Call your local BRP dealership
204070194
Unavailable
36
Silicone Sealant 51388, 300 ml
296000309
$36.99
37
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership
205364060
Unavailable
38
Loctite 243, 10 ml
293800060
$21.49
39
CLEAT - Call your local BRP dealership | STD
204070592
Unavailable
40
SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership | STD
204100144
Unavailable
41
Loctite 243, 10 ml
293800060
$21.49
42
BRACKET, ENGINE RELEASE CABLE - Call your local BRP dealership
204070886
Unavailable
