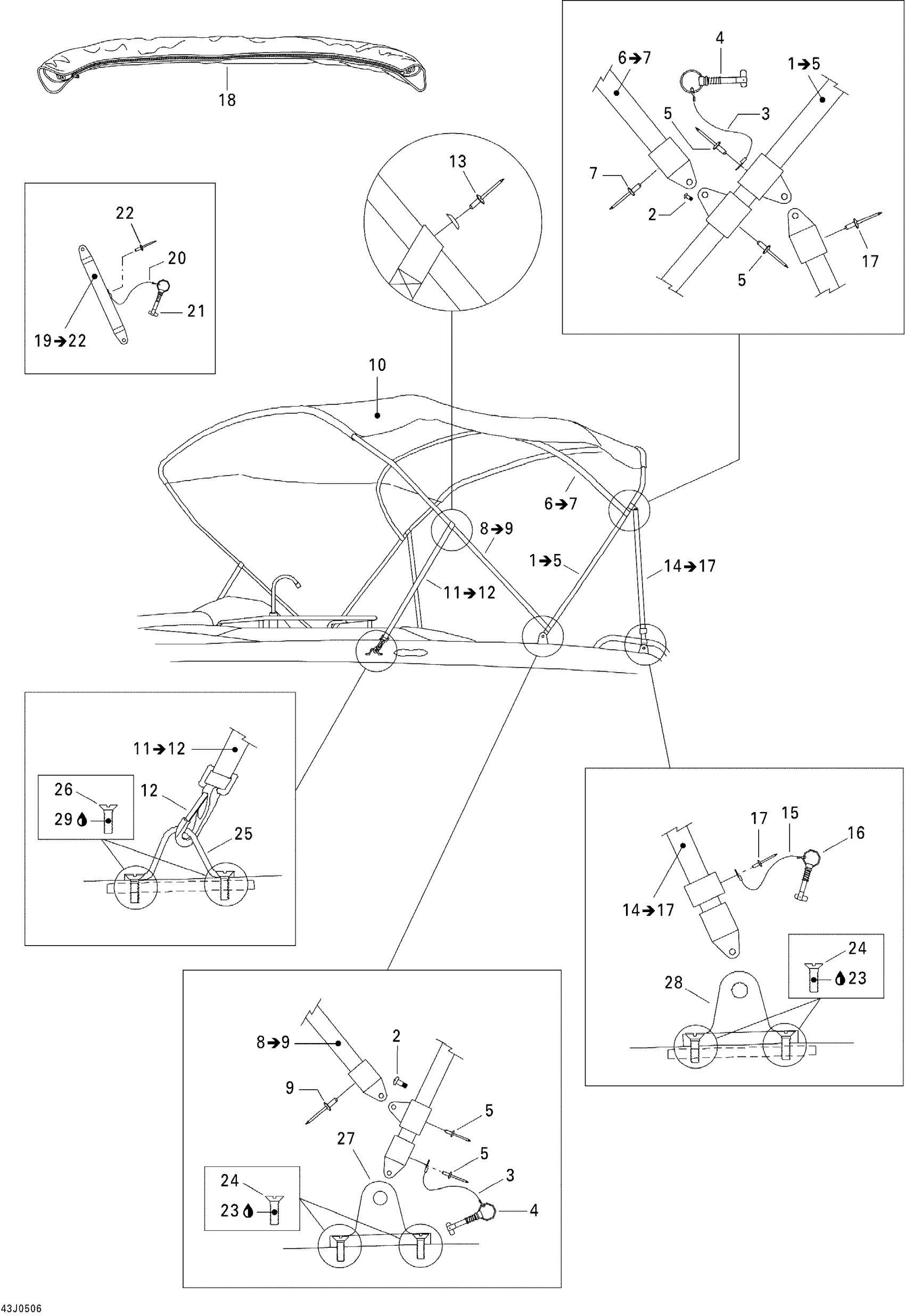

Sea-doo Islandia, 250 OPTI, 2005 09- Bimini Top Diagram
#
Description
Price
1
Rear Frame Ass’y | Includes 1 to 5
204071098
Unavailable
2
SCREW-PAN HD.1/4-20 SS - Call your local BRP dealership
204100066
Unavailable
3
Retaining Cable
204071012
Unavailable
4
Retaining Pin
204070960
Unavailable
5
Pop Rivet 3/16"
293150039
$1.49
6
Center Frame Ass’y | Includes 6 to 7
204071102
Unavailable
7
Pop Rivet 3/16"
293150039
$1.49
8
Front Frame Ass’y | Includes 8 to 9
204071104
Unavailable
9
Pop Rivet 3/16"
293150039
$1.49
10
Bimini Canvas
204071715
Unavailable
11
Bimini Strap Ass’y | Includes 11 to 12
204071008
Unavailable
12
Hook Snap
204071007
Unavailable
13
Pop Rivet 3/16"
293150039
$1.49
14
Brace Ass’y, Port Side | Includes 14 to 17
204071109
Unavailable
14
Brace Ass’y, Starbord | Includes 14 to 17
204071112
Unavailable
15
Retaining Cable
204071012
Unavailable
16
Retaining Pin
204070960
Unavailable
17
Pop Rivet 3/16"
293150039
$1.49
18
Bimini Cover
204071716
Unavailable
19
Storage Support Ass’y | Includes 19 to 22
204071113
Unavailable
20
Retaining Cable
204071012
Unavailable
21
Retaining Pin
204070960
Unavailable
22
Pop Rivet 3/16"
293150039
$1.49
23
Loctite 243, 10 ml
293800060
$21.49
24
PHILLIPS SCREW M5 X 30 - Call your local BRP dealership
208453060
Unavailable
25
Strap Tie
204070234
Unavailable
26
Phillips Screw M4 X 30
208443060
$1.48
27
BIMINI BRACKET - Call your local BRP dealership
204070910
Unavailable
28
BIMINI BRACKET - Call your local BRP dealership
204071011
Unavailable
29
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
