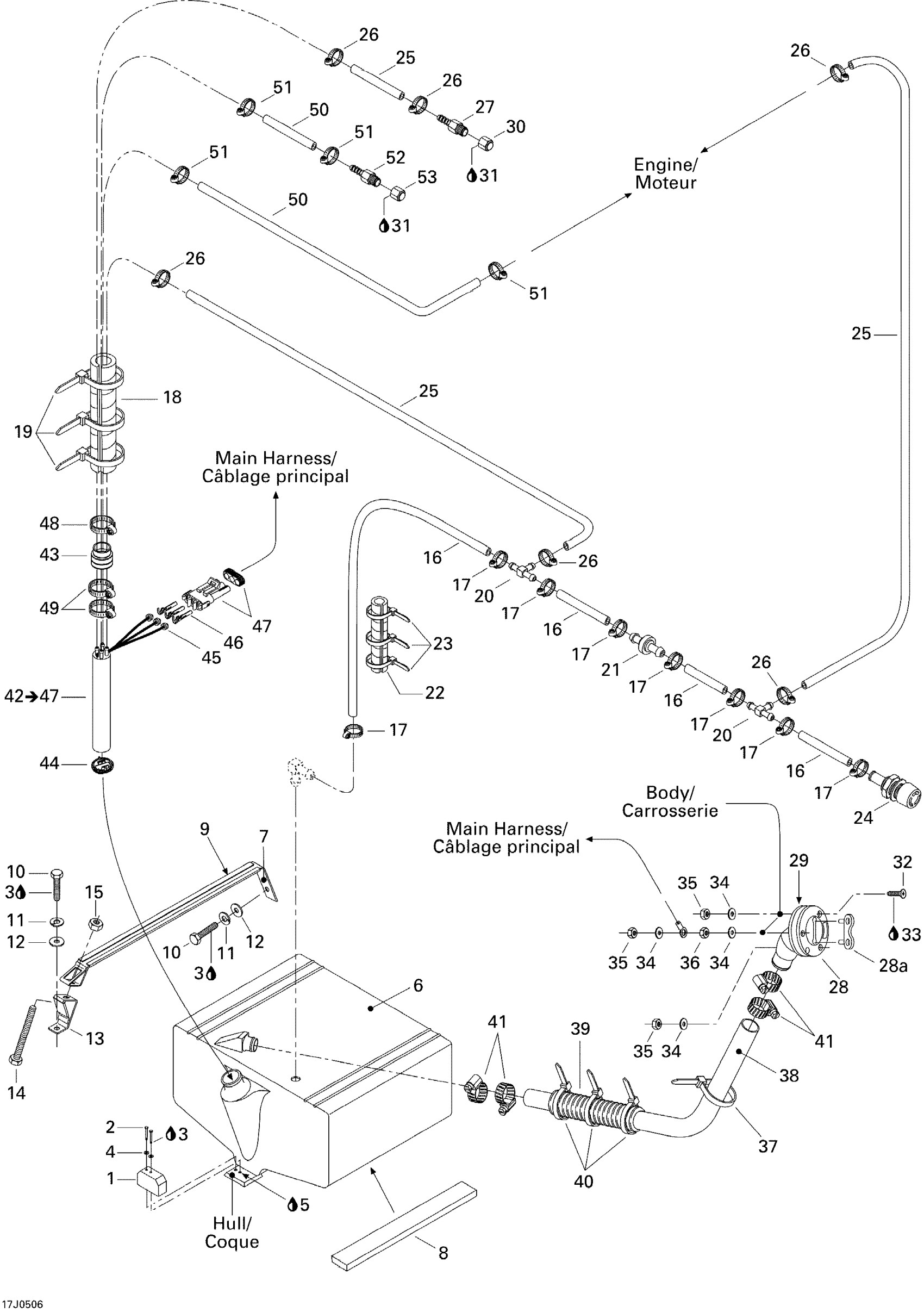

Sea-doo Islandia, 250 OPTI, 2005 Fuel System Diagram

#

Description
Price

1

Bumper

204390246

Unavailable

2

HEX. SCREW M8 X 65 - Call your local BRP dealership

207086560

Unavailable

3

Loctite 243, 10 ml

293800060

$21.49

4

Stainless, Flat Washer 8 mm

234081600

$0.55

5

Silicone Sealant 51388, 300 ml

296000309

$36.99

6

Fuel Tank Ass'y

204560328

Unavailable

7

FUEL TANK STRAP - Call your local BRP dealership

204560114

Unavailable

8

PROTECTOR PAD - Call your local BRP dealership

204560115

Unavailable

9

Protector Pad

204560029

Unavailable

10

Hex. Screw M8 X 30

207183060

$1.58

11

Lock Washer 8 mm, Stainless

234181601

$0.55

12

Flat Washer 8 mm, Stainless

234082600

$2.43

13

TANK BRACKET - Call your local BRP dealership

275500252

Unavailable

14

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

15

Hex. Elastic Nut M8

232581600

$1.48

16

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

17

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

18

Slit Conduit, Meter

204560131

Unavailable

19

Tie Wrap 368 mm

293750008

$1.04

20

T-Fitting

204560038

Unavailable

21

VENT FUEL SURGE PROTECTOR - Call your local BRP dealership

204560101

Unavailable

22

SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.

204130176

Unavailable

23

Tie-Rap 180 mm

414115200

$0.11

24

FUEL VENT - Call your local BRP dealership

204560126

Unavailable

25

HOSE 1/4 - Call your local BRP dealership

204560178

Unavailable

26

NORMA CLAMP - Call your local BRP dealership

293650121

Unavailable

27

COUPLER - Call your local BRP dealership

204560265

Unavailable

28

Filler Neck Ass'y

204560180

Unavailable

28a

FUEL CAP KEY - Call your local BRP dealership

219700344

Unavailable

29

GASKET - Call your local BRP dealership

204560119

Unavailable

30

Pipe Cap

204560263

Unavailable

31

Was 293800013 Loctite 56765

219704454

$65.99

32

Phillips Screw M5 X 3

208553060

Unavailable

33

Loctite 271, 10 ml

293800005

$26.99

34

Flat Washer M5, Stainless

234051600

$0.77

35

Hex. Elastic Nut M5 | X

232551600

$1.15

36

Hex. Nut M5

232051600

$1.15

37

Tie Wrap 368 mm

293750008

$1.04

38

Filler Neck Hose

204560294

Unavailable

39

Slit Conduit, Meter

204560131

Unavailable

40

Tie Wrap 368 mm

293750008

$1.04

41

NORMA CLAMP - Call your local BRP dealership

293650174

Unavailable

42

BAFFLE PICK-UP ASS?Y - Call your local BRP dealership | Includes 42 to 47

204560222

Unavailable

43

Fuel Tube Adaptor

204560066

Unavailable

44

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

45

Wire Seal

278000218

$4.39

46

Female Terminal

278000223

$3.19

47

Male Housing, 3 Circuits

278000273

$9.59

48

NORMA CLAMP - Call your local BRP dealership

293650174

Unavailable

49

Norma Clamp

293650081

$12.18

50

Hose 5/16”, Meter

204560177

Unavailable

51

NORMA CLAMP - Call your local BRP dealership

293650070

Unavailable

52

Hose Fitting

204560264

Unavailable

53

Pipe Cap

204560263

Unavailable
