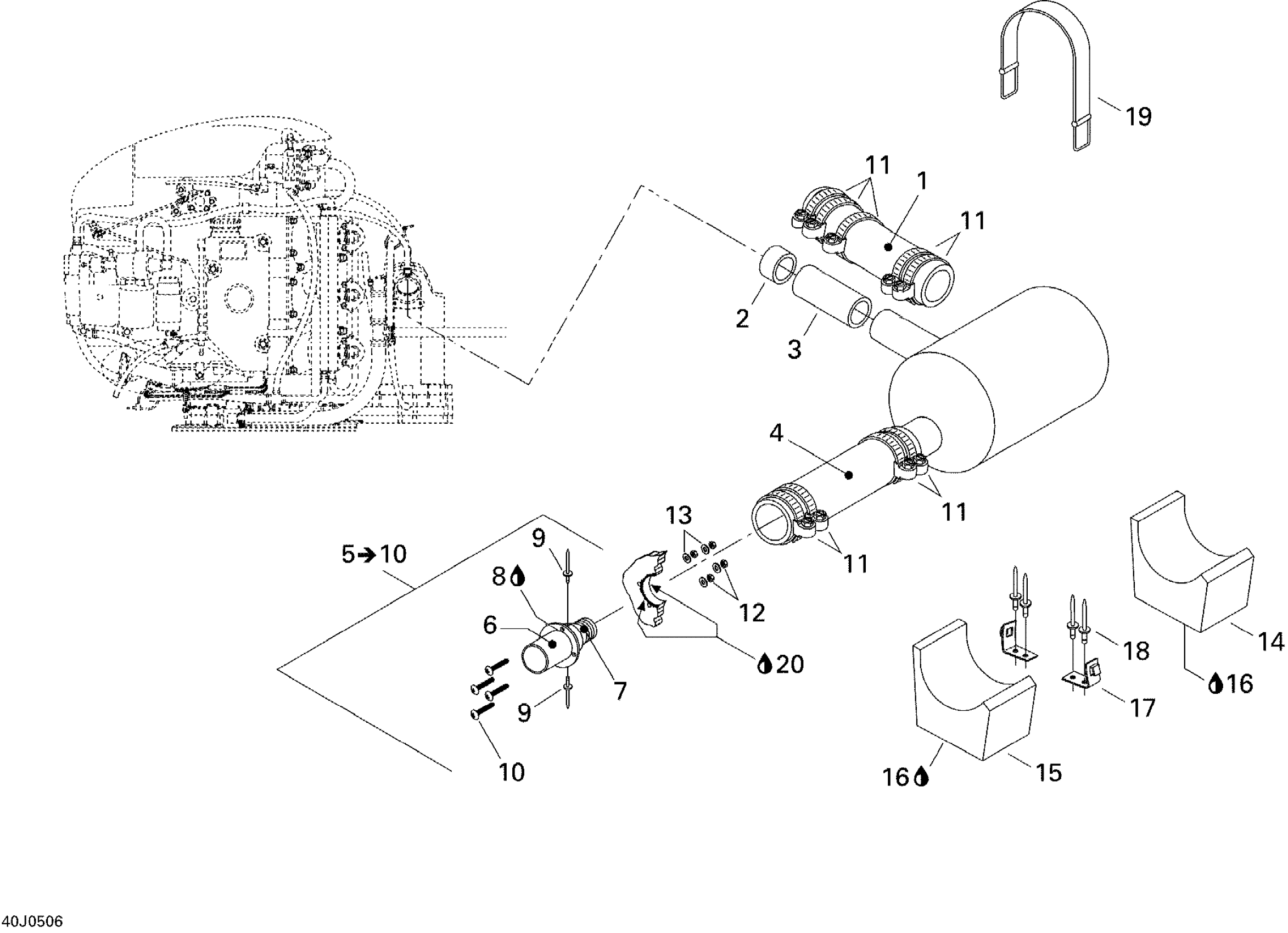

Sea-doo Islandia, 250 OPTI, 2005 Exhaust System Diagram

#

Description
Price

1

Exhaust Hose, Meter

204340256

Unavailable

2

Exhaust Spacer

204340403

$30.49

3

EXHAUST ADAPTER - Call your local BRP dealership

204340401

Unavailable

4

Exhaust Hose, Meter

204340256

Unavailable

5

Exhaust Outlet Ass’Y | Includes 7 to 10

204340322

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Exhaust Outlet

204340229

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Pop Rivet 3/16"

293150043

$2.09

10

PHILLIPS SCREW M6 X 35 - Call your local BRP dealership

208663560

Unavailable

11

Tridon Clamp

293650112

$12.99

12

Hex. Elastic Stop Nut M6

232561600

$1.15

13

Stainless Flat Washer M6

234061600

$0.33

14

Front Muffler Support

204340243

Unavailable

15

Rear Muffler Support

204340409

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Strap Clip 90°

204060017

Unavailable

18

Pop Rivet 3/16"

293150088

$0.99

19

STRAP - Call your local BRP dealership

293850022

Unavailable

20

Silicone Sealant 51388, 300 ml

296000309

$36.99
