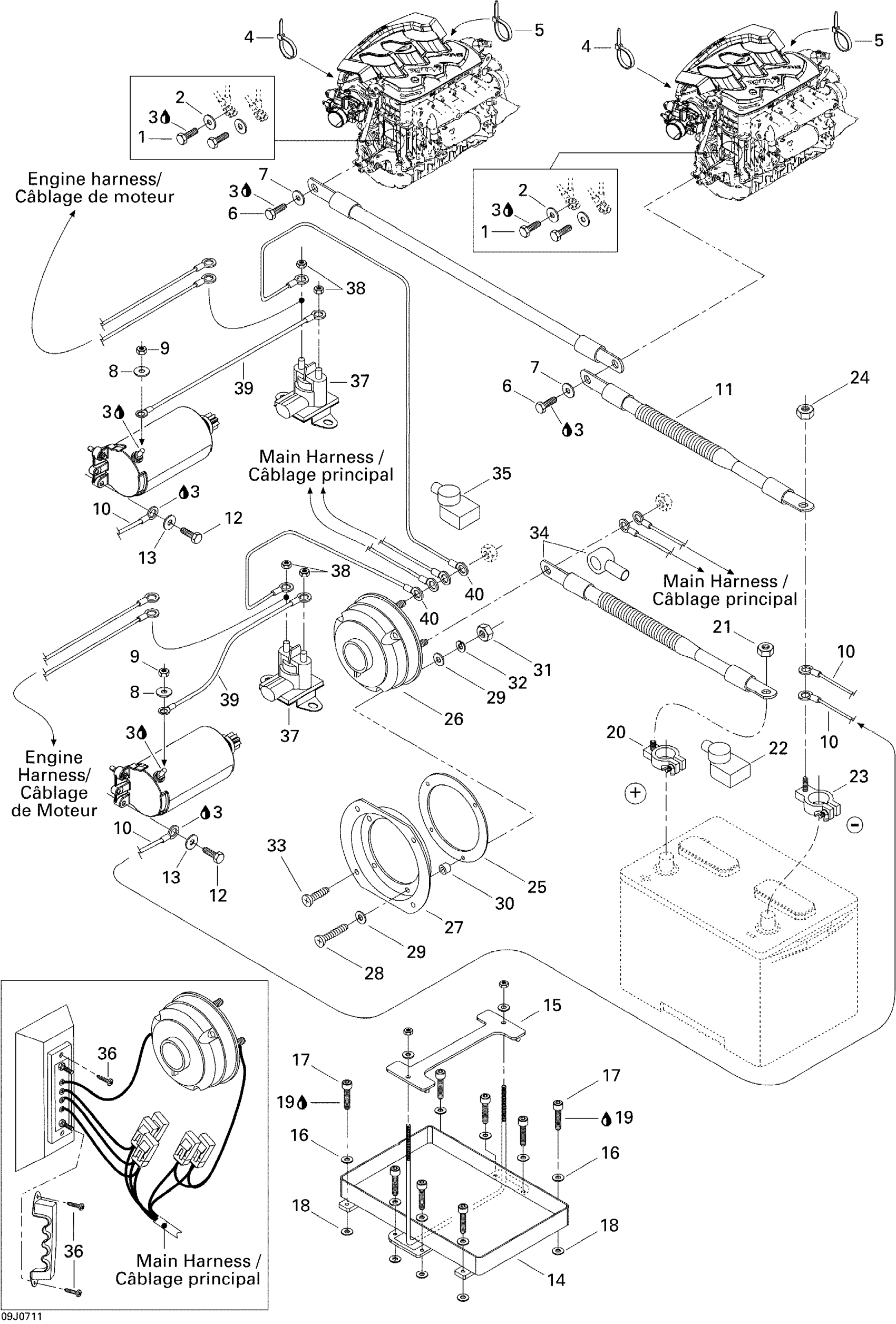

Sea-doo Islandia 220 SE (155NA), 2007 Electrical System Diagram

#

Description
Price

1

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

2

Stainless Flat Washer M6

234061600

$0.33

3

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

4

Tie-Rap 180 mm

414115200

$0.11

5

Tie Wrap 142 mm

293750002

$1.25

6

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

7

Flat Washer M6, Stainless

234062600

$0.77

8

Stainless Flat Washer M6

234061600

$0.33

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

GROUND CABLE, PORT SIDE - Call your local BRP dealership

204470854

Unavailable

10

GROUND CABLE, STARBOARD - Call your local BRP dealership

204470840

Unavailable

11

GROUND CABLE - Call your local BRP dealership

204470839

Unavailable

12

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

13

Stainless Flat Washer M6

234061600

$0.33

14

BATTERY SUPPORT KIT - Call your local BRP dealership

204470419

Unavailable

15

TOP BATTERY SUPPORT - Call your local BRP dealership

204471290

Unavailable

16

FLAT WASHER - Call your local BRP dealership

204100069

Unavailable

17

Socket Head Screw M6 X 25

205062560

$1.69

18

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

19

Loctite 243, 10 ml

293800060

$21.49

20

POSITIVE BATTERY POLE - Call your local BRP dealership

204470349

Unavailable

21

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

22

RED BOOT - Call your local BRP dealership

204470269

Unavailable

23

NEGATIVE BATTERY POLE - Call your local BRP dealership

204470348

Unavailable

24

HEX. NUT 5/16?-18 - Call your local BRP dealership

204100052

Unavailable

25

SWITCH ADAPTOR - Call your local BRP dealership

204470813

Unavailable

26

BATTERY SWITCH - Call your local BRP dealership

204470814

Unavailable

27

BATTERY SWITCH SUPPORT - Call your local BRP dealership

204470653

Unavailable

28

SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership

205455060

Unavailable

29

Flat Washer M5, Stainless

234051600

$0.77

30

NYLON SPACER - Call your local BRP dealership

204470330

Unavailable

31

Hex. Nut M5

232051600

$1.15

32

Helical Lock Washer M5

234151601

$1.15

33

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

34

POSITIVE CABLE, RED - Call your local BRP dealership

204470425

Unavailable

35

RED BOOT - Call your local BRP dealership

204470269

Unavailable

36

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

37

Starter Relay

278003012

$42.49

38

Hex. Elastic Stop Nut M6

232561600

$1.15

39

Red Cable

204470852

Unavailable

39

Red Cable | Starboard

204471089

Unavailable

40

RED CABLE - Call your local BRP dealership

204470853

Unavailable

40

RED CABLE - Call your local BRP dealership | Starboard

204470838

Unavailable
