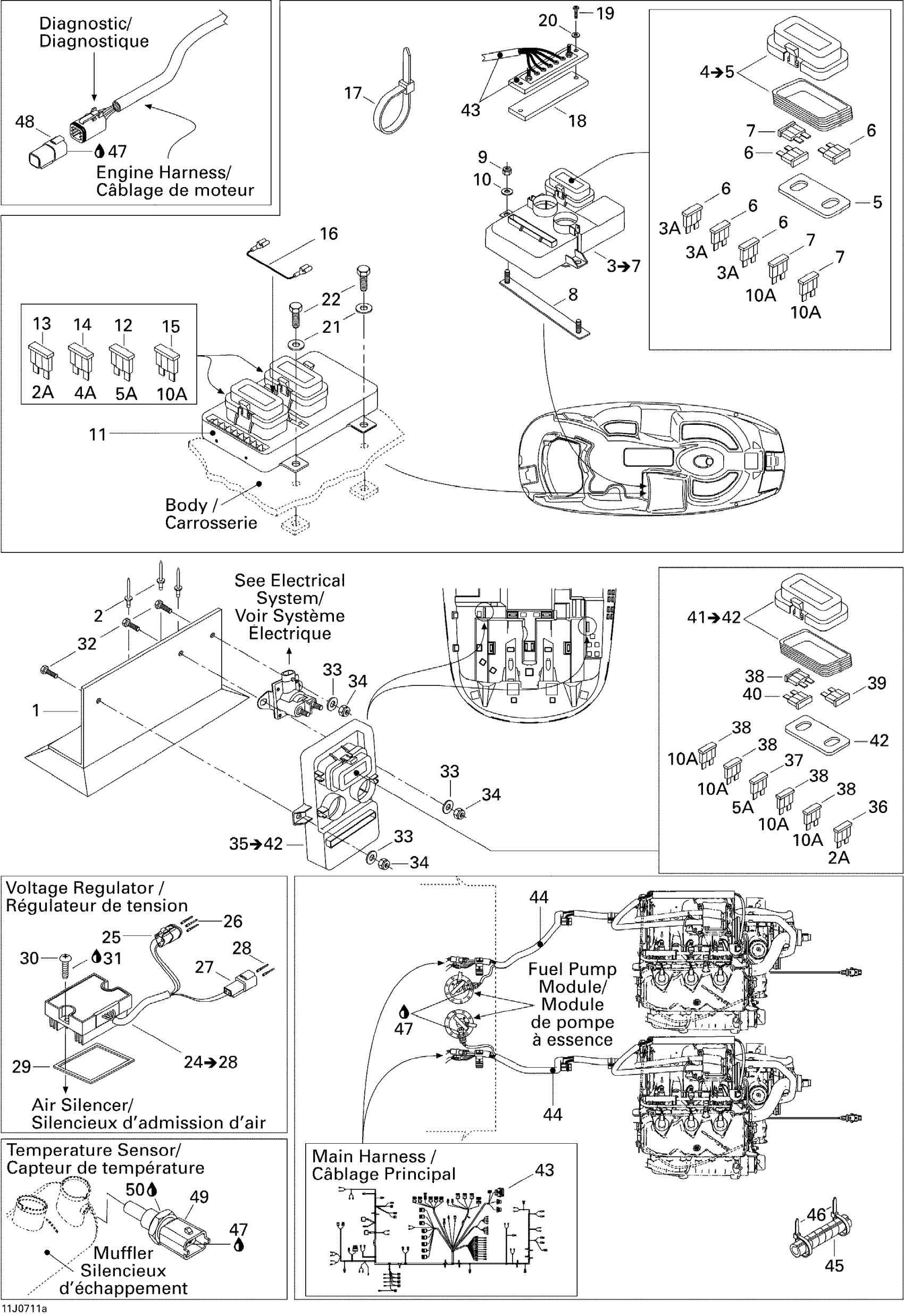

Sea-doo Islandia 220 SE (155NA), 2007 Electrical Accessories 1 Diagram

#

Description
Price

1

BRACKET - Call your local BRP dealership

204471071

Unavailable

2

Avdel Rivet 3/16"

293150037

$0.47

3

Twin Engine Interface | Includes 3 to 7

204471133

Unavailable

4

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

5

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

6

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

7

Fuse, 10 Amperes | North America

278001197

$1.79

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Hex. Elastic Stop Nut M6

232561600

$0.92

10

Flat Washer M6, Stainless

234062600

$0.64

11

FUSE BLOCK - Call your local BRP dealership

204470815

Unavailable

12

Fuse, 5 Amperes | CE

278000344

$3.12

13

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

14

FUSE, 4 AMPERES - Call your local BRP dealership

204471100

Unavailable

15

Fuse, 10 Amperes | North America

278001197

$1.79

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Tie Wrap 142 mm

293750002

$0.88

18

Aluminum Plate

204471076

Unavailable

19

Phillips Screw M4 X 10

208641060

$0.96

20

Flat Washer 4 mm, Stainless

234041600

$0.91

21

Flat Washer M6, Stainless

234062600

$0.64

22

Hex. Cap Screw M6 X 12

207161260

$1.21

23

Loctite 243, 10 ml

293800060

$20.77

24

REGULATOR - Call your local BRP dealership | Includes 11 to 15

278001969

Unavailable

25

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$27.58

26

Female Terminal

278000632

$1.69

27

Male Housing, 2 Circuits

409206900

$8.72

28

Female Terminal

515175567

$5.85

29

SEAL - Call your local BRP dealership

293250123

Unavailable

30

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

208663060

Unavailable

31

Loctite 271, 10 ml

293800005

$20.77

32

Hex. Forming Screw M6 X 20

207162060

$1.03

33

Flat Washer M6, Stainless

234062600

$0.64

34

Hex. Elastic Stop Nut M6

232561600

$0.92

35

FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24

204470770

Unavailable

36

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

37

Fuse, 5 Amperes | CE

278000344

$3.12

38

Fuse, 10 Amperes | North America

278001197

$1.79

39

Fuse, 20 Amperes

409003900

$3.12

40

Fuse, 30 Amperes

410917200

$3.12

41

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

42

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

43

Main Harness

204471134

Unavailable

44

Engine Harness

204470973

Unavailable

45

SLIT CONDUIT - Call your local BRP dealership

204471077

Unavailable

46

Tie Wrap 142 mm

293750002

$0.88

47

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

48

Diagnostic Connector

278002704

$15.57

49

Temperature Sensor

278002895

$31.82

50

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48
