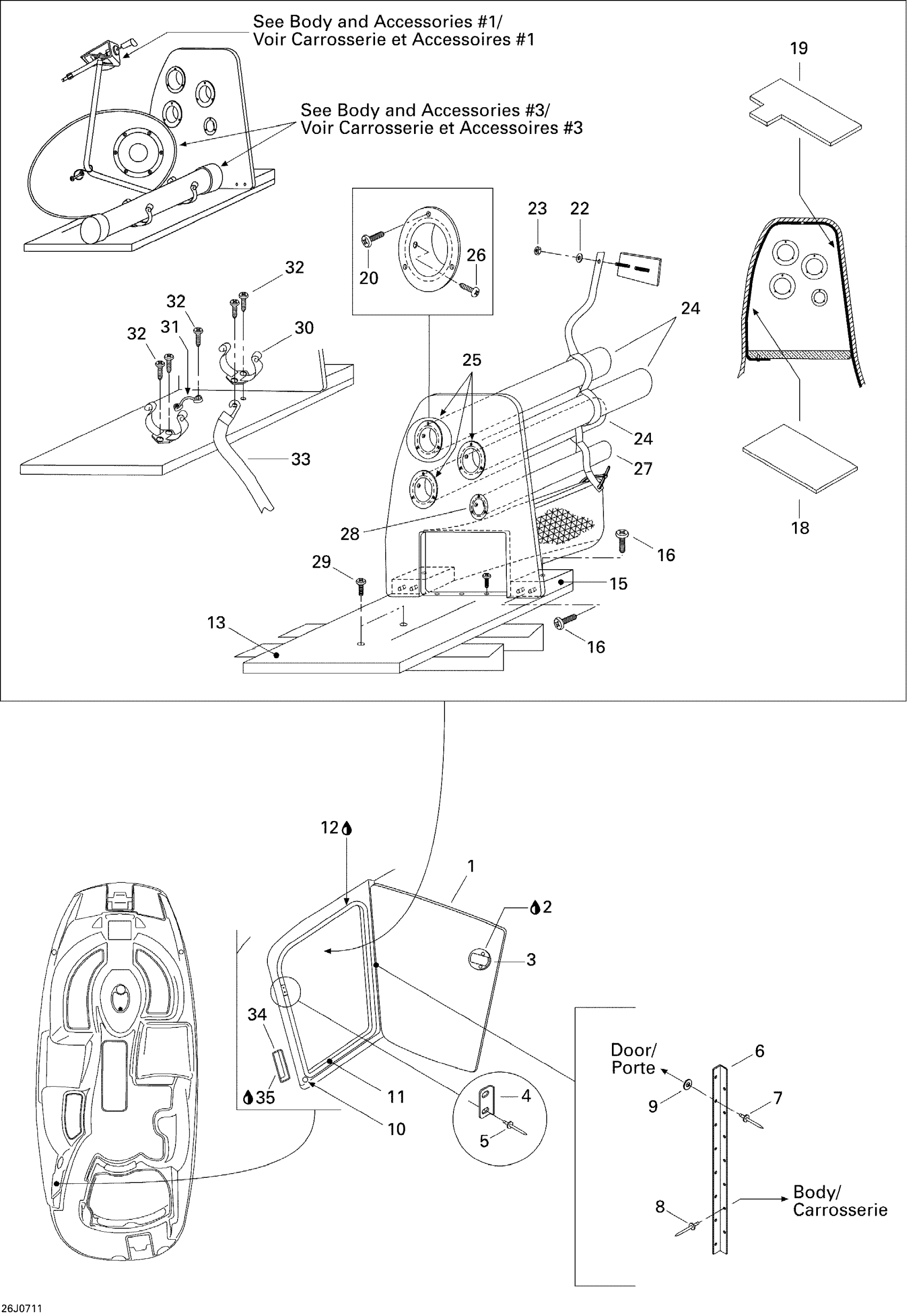

Sea-doo Islandia 220 SE (155NA), 2007 Storage Compartment Diagram
#
Description
Price
1
Storage Door
204072578
Unavailable
3
VERROU, WHITE - Call your local BRP dealership
204070063
Unavailable
4
KEEPER - Call your local BRP dealership
204071926
Unavailable
6
Hinge
204071809
Unavailable
10
BUMPER - Call your local BRP dealership
204070940
Unavailable
11
Rubber Trim
204070752
Unavailable
13
Floor
204072698
Unavailable
15
Mounting Block
204070751
Unavailable
16
TAPPING PHILLIPS SCREW 4.2 X 38 - Call your local BRP dealership
209643860
Unavailable
18
DECK CARPET, OUTER - Call your local BRP dealership
204072425
Unavailable
19
Inner Deck Carpet
204072699
Unavailable
22
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
24
Storage Tube 3” X 58”
204071033
Unavailable
25
Tube Collar
204071199
Unavailable
26
PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership
209630960
Unavailable
27
STORAGE TUBE 2? X 58? - Call your local BRP dealership
204071201
Unavailable
28
Tube Collar
204071202
Unavailable
29
TAPPING PHILLIPS SCREW 4.2 X 38 - Call your local BRP dealership
209643860
Unavailable
30
POLE CLIP - Call your local BRP dealership | Challenger S
204070342
Unavailable
31
Strap Tie
204070234
Unavailable
32
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
33
ICE CHEST STRAP - Call your local BRP dealership
204070905
Unavailable
34
GROMMET - Call your local BRP dealership
293720099
Unavailable
