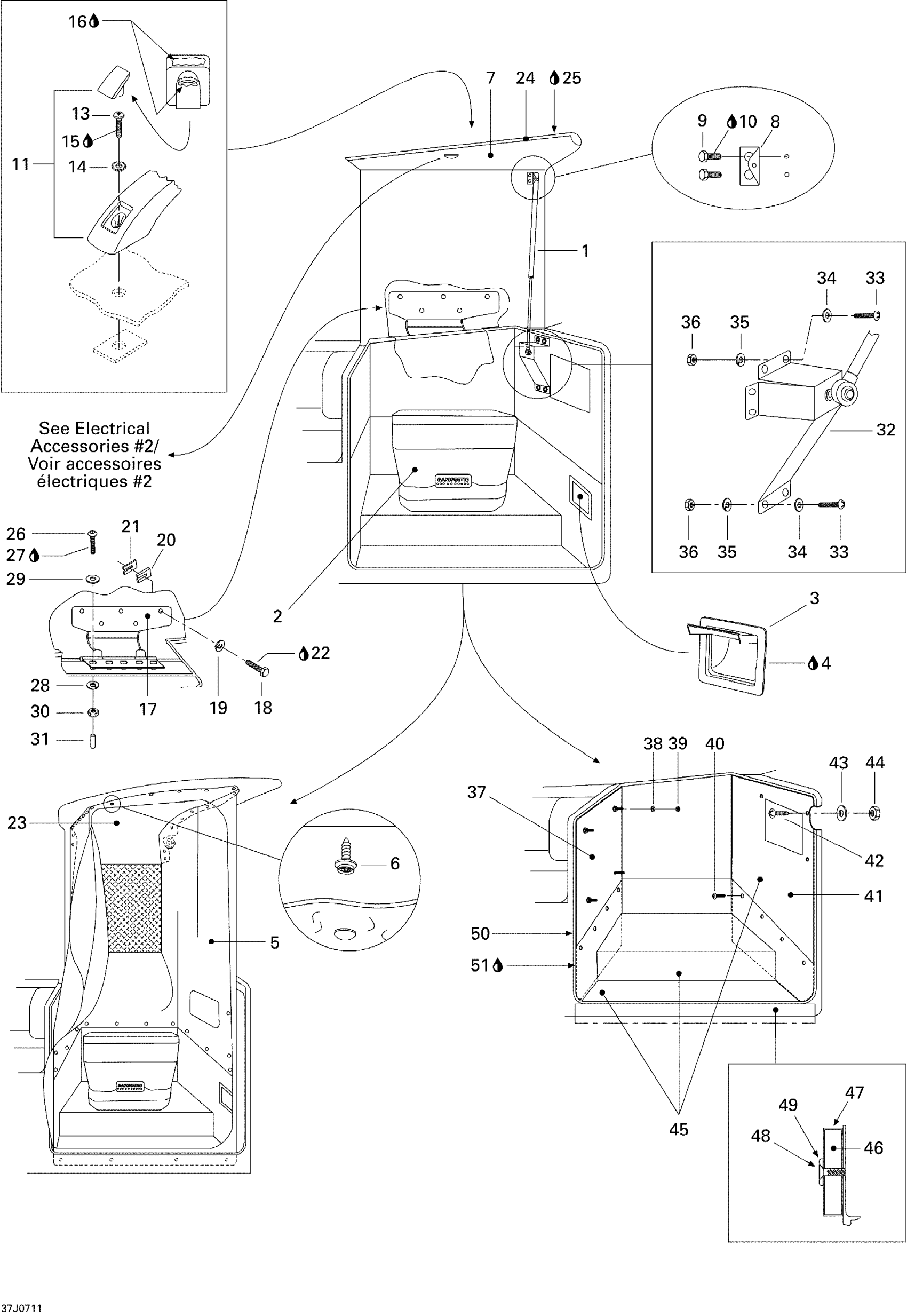

Sea-doo Islandia 220 SE (155NA), 2007 Portable Toilet Diagram

#

Description
Price

1

Gas Shock

204071925

Unavailable

2

PORTABLE TOILET - Call your local BRP dealership

204070636

Unavailable

3

Paper Holder

204070637

Unavailable

4

Silicone Sealant 51388, 300 ml

296000309

$36.99

5

Toilet Curtain

204072712

Unavailable

6

SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership

202000159

Unavailable

7

Toilet Door

204072582

Unavailable

8

Shock Bracket

204073074

$27.99

9

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

10

Loctite 243, 10 ml

293800060

$21.49

11

Handle Grip

204071710

Unavailable

13

PHILLIPS SCREW M6 X 35 - Call your local BRP dealership

208663560

Unavailable

14

Stainless Flat Washer M6

234061600

$0.33

15

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

16

Loctite 243, 10 ml

293800060

$21.49

17

TOILER DOOR HINGE - Call your local BRP dealership

204070642

Unavailable

18

Hex. Forming Screw M6 X 20

207162060

$1.29

19

Lock Washer Helical M6

234161601

$1.15

20

SPACER 3.2 MM - Call your local BRP dealership

204070047

Unavailable

21

SPACER 1.6 MM - Call your local BRP dealership

204070088

Unavailable

22

Loctite 243, 10 ml

293800060

$21.49

23

Headliner, Toilet Door

204070764

Unavailable

24

Trim, White, 7/16”, Meter

204072759

Unavailable

25

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

26

Socket Screw M6 X 40

205464060

$2.22

27

Loctite 243, 10 ml

293800060

$21.49

28

Lock Washer Helical M6

234161601

$1.15

29

Flat Washer M6, Stainless

234062600

$0.77

30

Hex. Elastic Stop Nut M6

232561600

$1.15

31

Cap

204070947

Unavailable

32

CYLINDER SUPPORT, TOILET - Call your local BRP dealership

204070765

Unavailable

33

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

208663060

Unavailable

34

FLAT WASHER 6 MM - Call your local BRP dealership

234060600

Unavailable

35

Lock Washer Helical M6

234161601

$1.15

36

Hex. Elastic Stop Nut M6

232561600

$1.15

37

PLASTIC FORM, FRONT BULKHEAD - Call your local BRP dealership

204071028

Unavailable

38

Flat Washer M6, Stainless

234062600

$0.77

39

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

40

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

41

PLASTIC FORM, REAR BULKHEAD - Call your local BRP dealership

204070776

Unavailable

42

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

208663060

Unavailable

43

Flat Washer M6, Stainless

234062600

$0.77

44

Hex. Elastic Stop Nut M6

232561600

$1.15

45

Headliner, Toilet Door

204070764

Unavailable

46

LOWER DOOR COVER - Call your local BRP dealership

204070779

Unavailable

47

Headliner, Toilet Door

204070764

Unavailable

48

PHILLIPS TAPPING SCREW M10 X 2 - Call your local BRP dealership

204100056

Unavailable

49

FINITION WASHER - Call your local BRP dealership

204100057

Unavailable

50

Rubber Trim

204070752

Unavailable

51

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99
