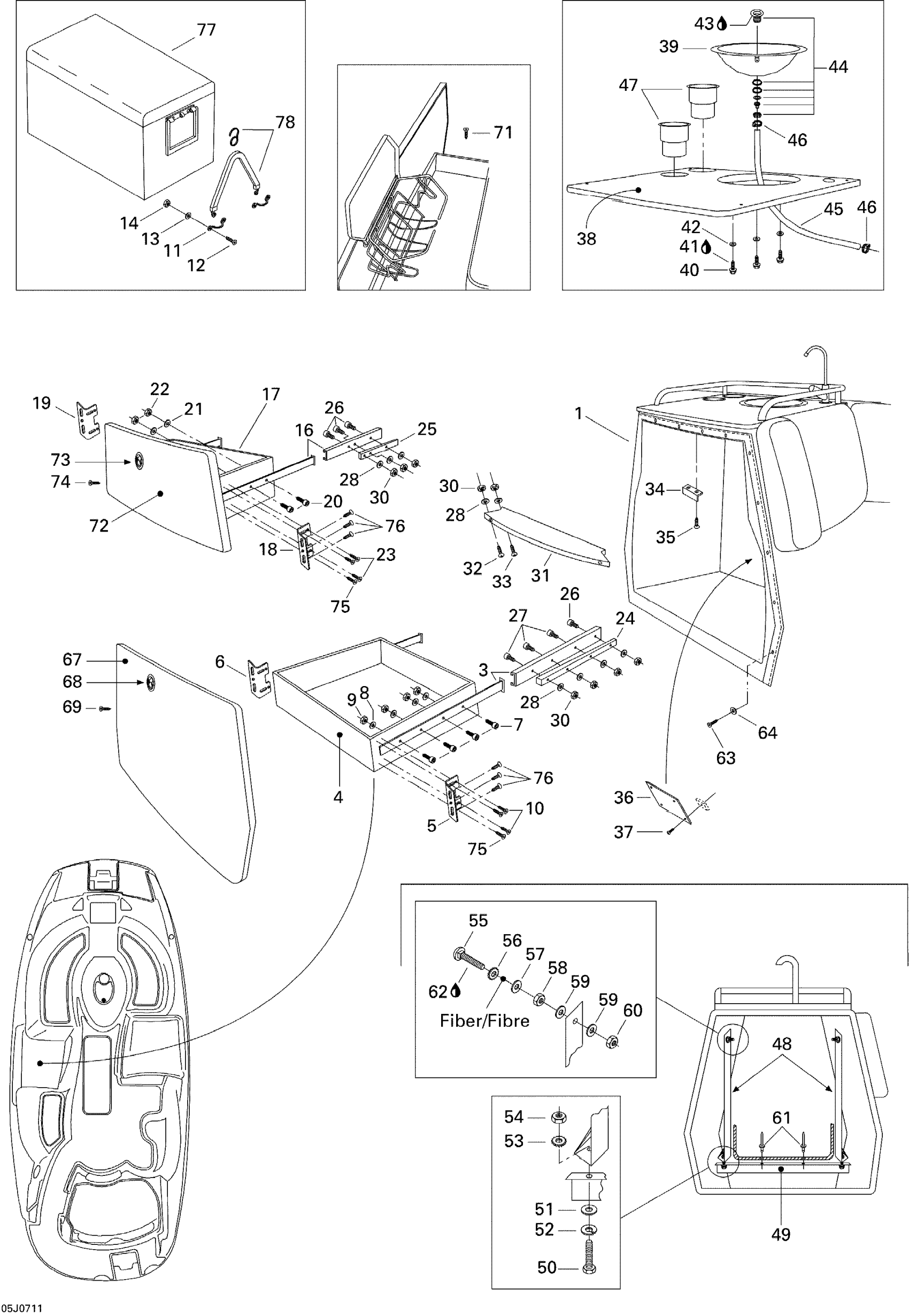

Sea-doo Islandia 220 SE (155NA), 2007 Cabinet, Galley Diagram

#

Description
Price

1

Galley Cabinet

204072577

Unavailable

3

Drawer Slides, Long

204070612

Unavailable

4

Drawer, Bottom

204070964

Unavailable

5

RH DRAWER BRACKET, 94DEG - Call your local BRP dealership

204070725

Unavailable

6

LH DRAWER BRACKET, 80DEG - Call your local BRP dealership

204070726

Unavailable

7

Socket Head Screw M4 X 16

205441660

$1.47

8

Flat Washer 4 mm, Stainless

234042600

$1.15

9

Elastic Stop Nut M4

232541600

$1.15

10

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

11

STRAP EYE - Call your local BRP dealership

204071845

Unavailable

12

Socket Head Screw M4 X 16

205441660

$1.47

13

Flat Washer 4 mm, Stainless

234042600

$1.15

14

Elastic Stop Nut M4

232541600

$1.15

16

DRAWER SLIDES, SHORT - Call your local BRP dealership

204070613

Unavailable

17

DRAWER, BOTTOM - Call your local BRP dealership

204070619

Unavailable

18

RH DRAWER BRACKET, 94DEG - Call your local BRP dealership

204070725

Unavailable

19

LH DRAWER BRACKET, 80DEG - Call your local BRP dealership

204070726

Unavailable

20

Socket Head Screw M4 X 16

205441660

$1.47

21

Flat Washer 4 mm, Stainless

234042600

$1.15

22

Elastic Stop Nut M4

232541600

$1.15

23

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

24

SLIDE SHIM, LONG - Call your local BRP dealership

204070727

Unavailable

25

SLIDE SHIM, SHORT - Call your local BRP dealership

204070728

Unavailable

26

Socket Screw M4 X 25

205442560

$1.15

27

SOCKET HEAD SCREW M4 X 35 - Call your local BRP dealership

205443560

Unavailable

28

Flat Washer 4 mm, Stainless

234042600

$1.15

30

Elastic Stop Nut M4

232541600

$1.15

31

LATCH SUPPORT - Call your local BRP dealership

204070965

Unavailable

32

Phillips Screw M4 X 30

208443060

$1.48

33

PHILLIPS SCREW M4 X 50 - Call your local BRP dealership

208445060

Unavailable

34

KEEPER - Call your local BRP dealership

204070060

Unavailable

35

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

36

ACCESS COVER - Call your local BRP dealership

204070916

Unavailable

37

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

38

COUNTER TOP - Call your local BRP dealership

204072467

Unavailable

39

Sink

204070625

Unavailable

40

Screw K40 X 10

241140060

$1.48

41

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

42

Flat Washer 4 mm, Stainless

234042600

$1.15

43

Silicone Sealant 51388, 300 ml

296000309

$36.99

44

SINK STRAINER ASS?Y - Call your local BRP dealership

204070626

Unavailable

45

Bilgeflex Hose 5/8”, Meter

204940033

Unavailable

46

Tridon Clamp

293650016

$10.99

47

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

48

STRAP 565 MM - Call your local BRP dealership

204070971

Unavailable

49

Angle 813 mm

204070972

Unavailable

50

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

51

Flat Washer 8 mm, Stainless

234082600

$2.43

52

Lock Washer 8 mm, Stainless

234181601

$0.55

53

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

54

Hex. Nut M8

232081600

$1.47

55

Elevator Bolt

204000130

Unavailable

56

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

57

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

58

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

59

Flat Washer M6, Stainless

234062600

$0.77

60

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

61

Not Available As Spare Part - Friction Washer

Unavailable

62

Loctite 243, 10 ml

293800060

$21.49

63

TAPPING PHILLIPS SCREW M4.8 X 38 - Call your local BRP dealership

250000086

Unavailable

64

FINITION WASHER - Call your local BRP dealership

204100057

Unavailable

67

Front Drawer, Ice Chest

204072590

Unavailable

68

DOOR LATCH - Call your local BRP dealership

204070951

Unavailable

69

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

71

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

72

Drawer Front

204072599

Unavailable

73

LATCH, WHITE - Call your local BRP dealership

204070120

Unavailable

74

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

75

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

76

Phillips Screw #8 X 1/2”

204100030

Unavailable

77

ICe Chest

204072591

Unavailable

78

ICE CHEST STRAP - Call your local BRP dealership

204070905

Unavailable
