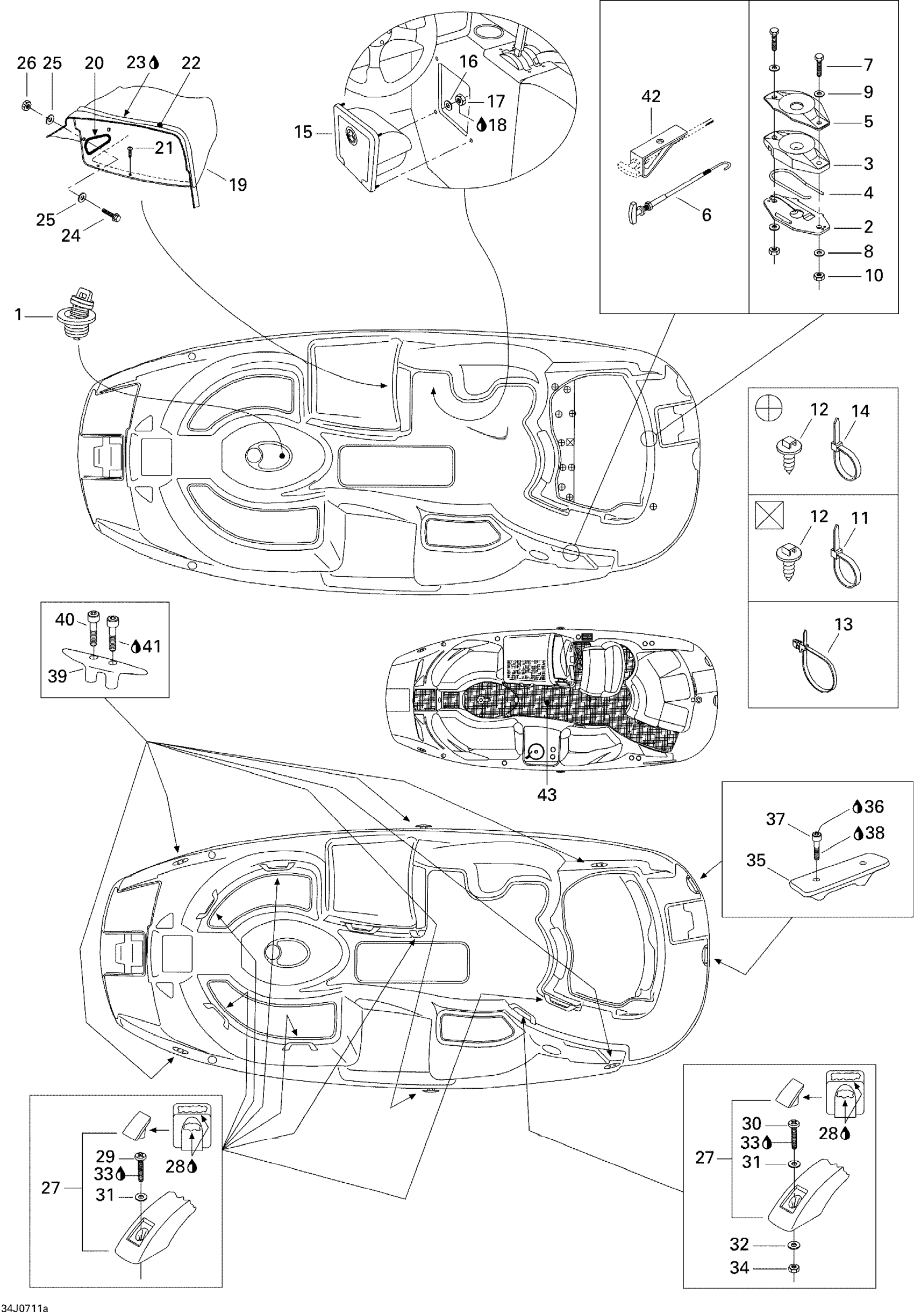

Sea-doo Islandia 220 SE (155NA), 2007 Body And Accessories 1 Diagram

#

Description
Price

1

Drain Plug

204070857

Unavailable

2

LATCH COVER - Call your local BRP dealership

204070036

Unavailable

3

LATCH BASE - Call your local BRP dealership

204070037

Unavailable

4

SPRING - Call your local BRP dealership

204070038

Unavailable

5

LATCH PROTECTOR - Call your local BRP dealership

204070952

Unavailable

6

LATCH CABLE - Call your local BRP dealership

204070049

Unavailable

7

Hex. Screw M6 X 35

207163560

$1.49

8

Flat Washer M6, Stainless

234062600

$0.77

9

Stainless Flat Washer M6

234061600

$0.33

10

Hex. Elastic Stop Nut M6

232561600

$1.15

11

Tie Wrap 368 mm

293750008

$1.04

12

Mount Dart

293730040

$1.04

13

TIE RAP WITH DART - Call your local BRP dealership

204130098

Unavailable

14

Tie-Rap 180 mm

414115200

$0.11

15

GLOVE BOX - Call your local BRP dealership

204071084

Unavailable

16

Flat Washer 5 mm, Stainless

234052600

$0.77

17

NEEDS DESCRIPTION This part replaces 204100034.

0460000

$0.60

18

Loctite 243, 10 ml

293800060

$21.49

19

Helm Console

204072328

Unavailable

20

SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.

204130176

Unavailable

21

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

22

TRIM, WHITE - Call your local BRP dealership

204050048

Unavailable

23

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

24

Hex. Screw M6 X 30

207163060

$1.48

25

Flat Washer M6, Stainless

234062600

$0.77

26

Hex. Elastic Stop Nut M6

232561600

$1.15

27

Handle Grip

204071710

Unavailable

28

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

29

SOCKET SCREW M6 X 25 - Call your local BRP dealership

205462560

Unavailable

30

SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership | STD

204100144

Unavailable

31

Stainless Flat Washer M6

234061600

$0.33

32

Flat Washer M6, Stainless

234062600

$0.77

33

Loctite 243, 10 ml

293800060

$21.49

34

Hex. Elastic Stop Nut M6

232561600

$1.15

35

GRIP HANDLE, BLACK - Call your local BRP dealership

204070194

Unavailable

36

Silicone Sealant 51388, 300 ml

296000309

$36.99

37

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

205364060

Unavailable

38

Loctite 243, 10 ml

293800060

$21.49

39

CLEAT - Call your local BRP dealership | STD

204070592

Unavailable

40

SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership | STD

204100144

Unavailable

41

Loctite 243, 10 ml

293800060

$21.49

42

BRACKET, ENGINE RELEASE CABLE - Call your local BRP dealership

204070886

Unavailable

43

Cockpit Carpet

204072368

Unavailable
