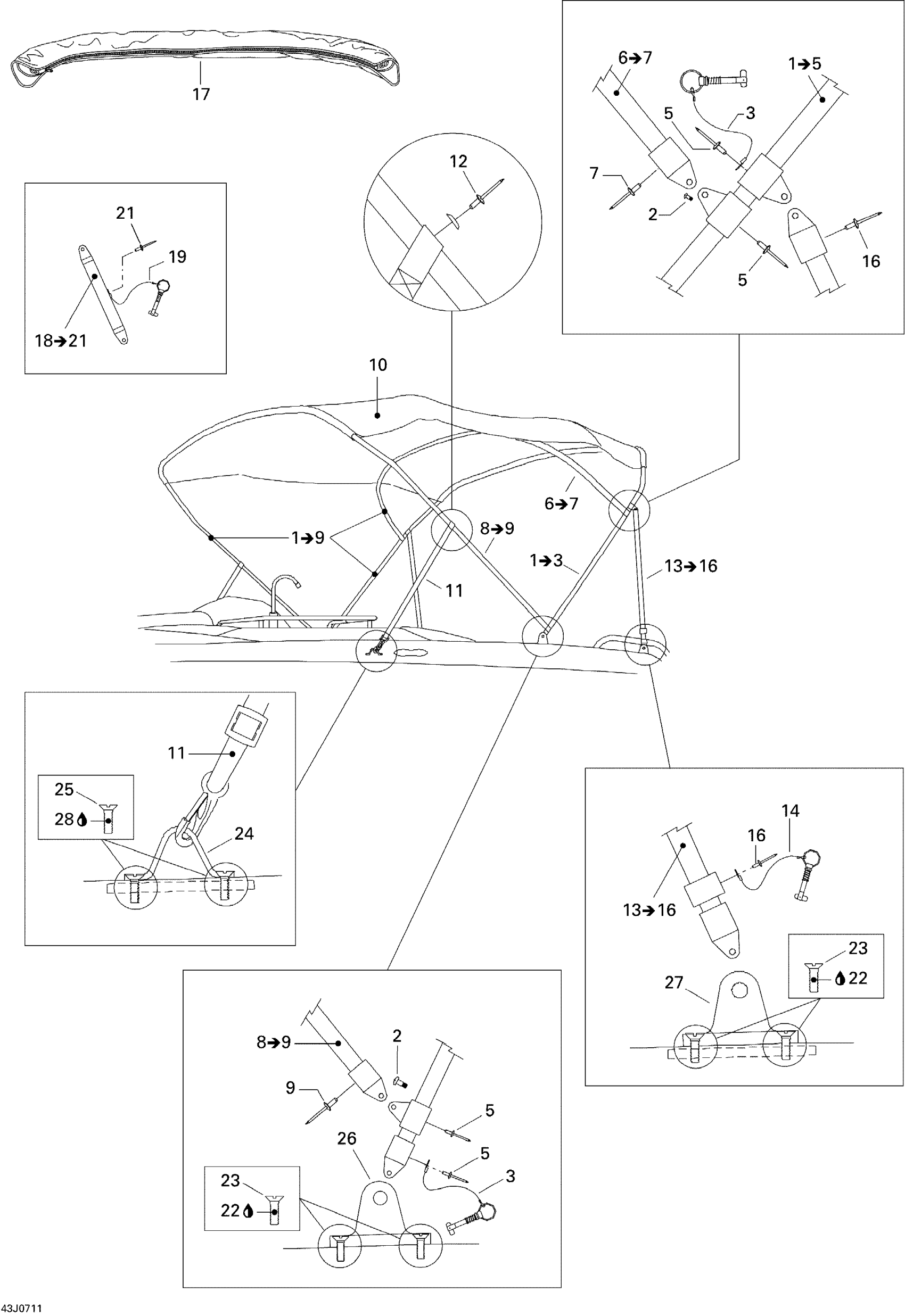

Sea-doo Islandia 220 SE (155NA), 2007 Bimini Top Diagram

#

Description
Price

1

BIMINI TOP FRAME ASS'Y - Call your local BRP dealership | Includes 1 to 4

204072439

Unavailable

2

SCREW-PAN HD.1/4-20 SS - Call your local BRP dealership

204100066

Unavailable

3

RETAINING CABLE ASS'Y - Call your local BRP dealership

204072441

Unavailable

5

Pop Rivet 3/16"

293150039

$1.49

6

Center Frame Ass’y | Includes 6 to 7

204071102

Unavailable

7

Pop Rivet 3/16"

293150039

$1.49

8

Front Frame Ass’y | Includes 8 to 9

204071104

Unavailable

9

Pop Rivet 3/16"

293150039

$1.49

10

Bimini Canvas

204072710

Unavailable

11

BIMINI STRAP ASS?Y - Call your local BRP dealership

204072442

Unavailable

12

Pop Rivet 3/16"

293150039

$1.49

13

BRACE ASS?Y, PORT SIDE - Call your local BRP dealership | Includes 9 to 11

204072444

Unavailable

13

Brace Ass’y, Starbord | Includes 12 to 14

204072445

Unavailable

14

RETAINING CABLE ASS'Y - Call your local BRP dealership

204072441

Unavailable

16

Pop Rivet 3/16"

293150039

$1.49

17

BIMINI COVER - Call your local BRP dealership

204072711

Unavailable

18

STORAGE SUPPORT ASS?Y - Call your local BRP dealership | Includes 15 to 17

204072446

Unavailable

19

RETAINING CABLE ASS'Y - Call your local BRP dealership

204072441

Unavailable

21

Pop Rivet 3/16"

293150039

$1.49

22

Loctite 243, 10 ml

293800060

$21.49

23

PHILLIPS SCREW M5 X 30 - Call your local BRP dealership

208453060

Unavailable

24

Strap Tie

204070234

Unavailable

25

Phillips Screw M4 X 30

208443060

$1.48

26

BIMINI BRACKET - Call your local BRP dealership

204070910

Unavailable

27

BIMINI BRACKET - Call your local BRP dealership

204071011

Unavailable

28

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99
