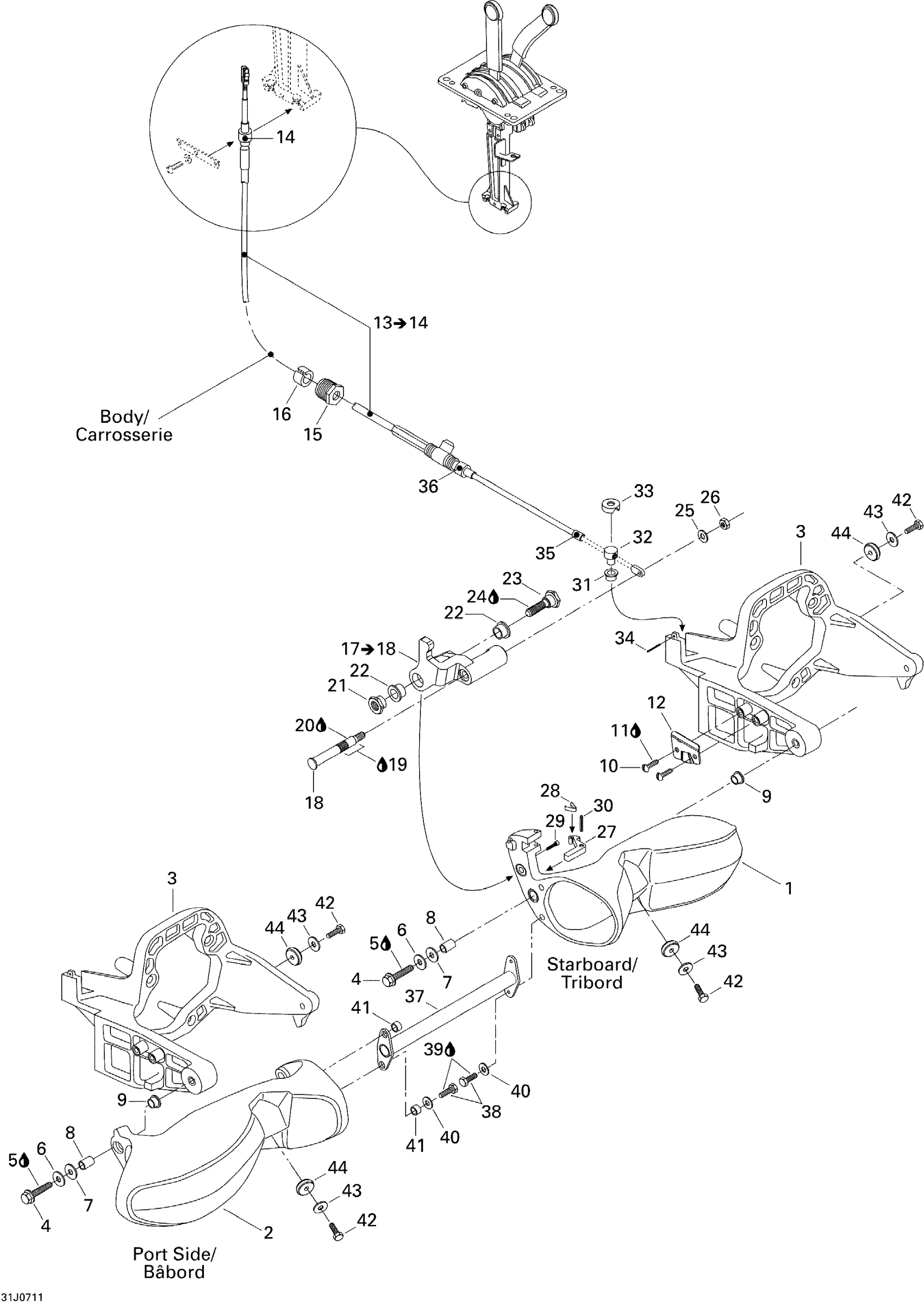

Sea-doo Islandia 220 SE (155NA), 2007 Reverse Diagram

#

Description
Price

1

Reverse Gate, Starboard

268000107

$359.99

2

NEEDS DESCRIPTION This part replaces 204170217.

423465080

$369.99

3

Reverse Gate Support

204170214

$189.99

4

Hex. Flange Screw 18 X 1.56

204100163

$9.09

5

Loctite 243, 10 ml

293800060

$21.49

6

Flat Washer 8 mm, Stainless

234082600

$2.43

7

WASHER, NYLON - Call your local BRP dealership

204100128

Unavailable

8

Sleeve

204170177

$33.99

9

Bushing

204130237

$12.11

10

SCREW-PAN HD. 10-24 UNC X .50 SS - Call your local BRP dealership

204100122

Unavailable

11

Loctite 243, 10 ml

293800060

$21.49

12

STOP PAWL - Call your local BRP dealership

271000485

Unavailable

13

Reverse Cable

268000109

$148.49

14

End Piece

277001583

$14.49

15

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

16

RUBBER GROMMET - Call your local BRP dealership

204130041

Unavailable

17

NEEDS DESCRIPTION | Includes 7 to 8 This part replaces 204170230.

0460979

$224.99

18

PIN - Call your local BRP dealership

204130037

Unavailable

19

Was 293800041 Loctite Primer 7649

219704458

$39.99

20

Sealant Loctite 648

219703000

$45.99

21

SHOULDER NUT - Call your local BRP dealership

204100123

Unavailable

22

BUSHING - Call your local BRP dealership

204130036

Unavailable

23

SHOULDER SCREW - Call your local BRP dealership

204100124

Unavailable

24

Loctite 271, 10 ml

293800005

$26.99

25

Flat Washer 5 mm, Stainless

234052600

$0.77

26

NEEDS DESCRIPTION This part replaces 204100034.

0460000

$0.60

27

HOOK - Call your local BRP dealership

204170220

Unavailable

28

Spring

271000431

$15.49

29

Socket Head Screw

204100127

$3.70

30

Pin

211400009

$1.68

31

Bushing

204130237

$12.11

32

THREADED END PIECE - Call your local BRP dealership

204130038

Unavailable

33

Reverse Cable Bushing - Call your local BRP dealership This part replaces 204170212.

296000396

Unavailable

34

Cotter Pin

204130040

$2.85

35

Wiper Rod

277001582

$11.11

36

End Piece

277001583

$14.49

37

Reverse Rod

204170231

Unavailable

38

SCREW HEX. M4 X 20 - Call your local BRP dealership

207142060

Unavailable

39

Loctite 243, 10 ml

293800060

$21.49

40

Flat Washer 4 mm, Stainless

234042600

$1.15

41

SPACER BUSHING - Call your local BRP dealership

204170026

Unavailable

42

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

43

Stainless Flat Washer M6

234061600

$0.33

44

Anode Zinc

271001813

$18.99
