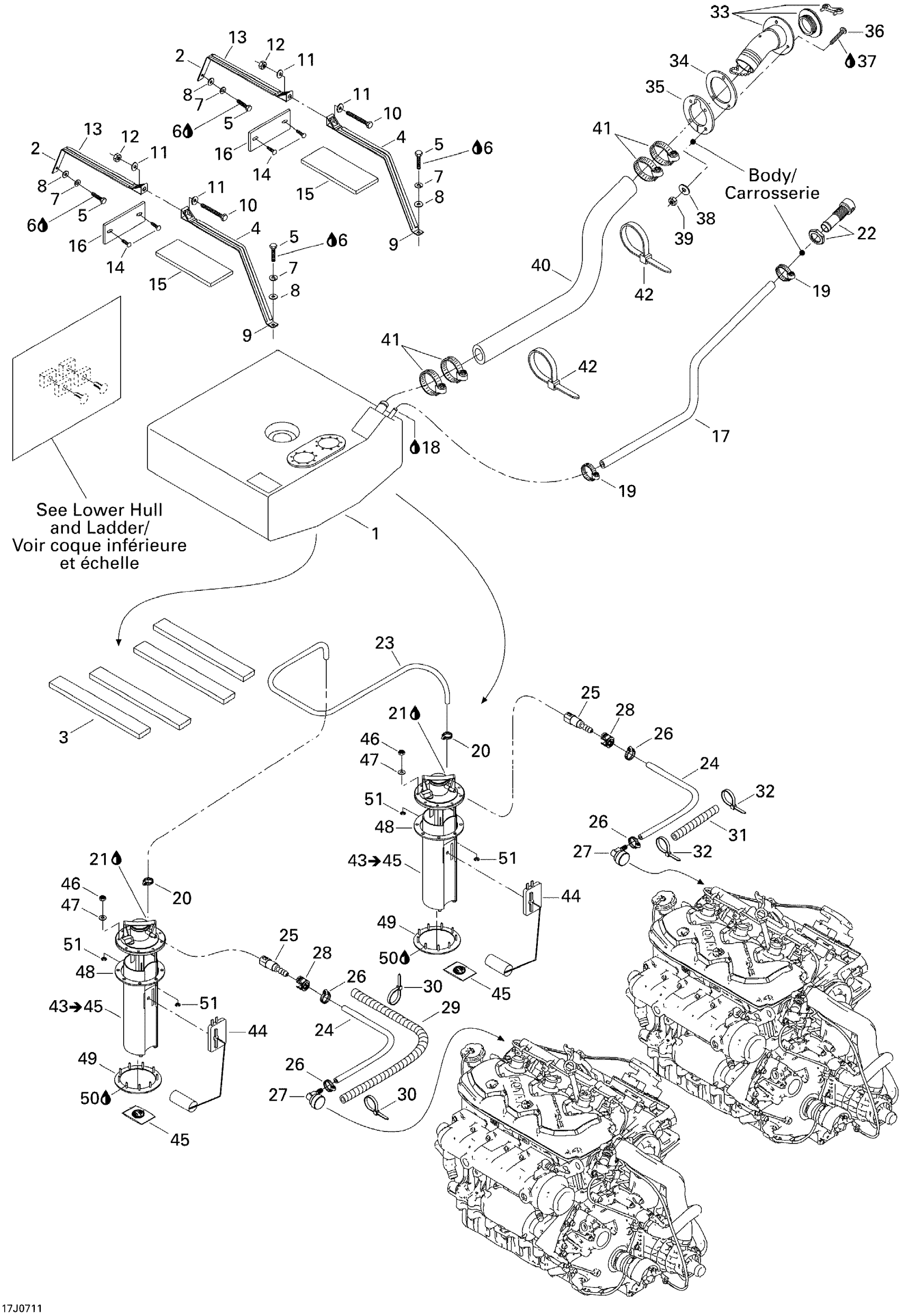

Sea-doo Islandia 220 SE (155NA), 2007 Fuel System Diagram

#

Description
Price

1

FUEL TANK 51 GAL - C/U - Call your local BRP dealership | Includes 10 to 10d This part replaces 275500860.

204560467

Unavailable

2

FUEL TANK STRAP - Call your local BRP dealership

204560235

Unavailable

3

PROTECTOR PAD - Call your local BRP dealership

204560115

Unavailable

4

PROTECTOR PAD - Call your local BRP dealership

204560185

Unavailable

5

Hex. Screw M8 X 30

207183060

$1.58

6

Loctite 271, 10 ml

293800005

$26.99

7

Lock Washer 8 mm, Stainless

234181601

$0.55

8

Flat Washer 8 mm, Stainless

234082600

$2.43

9

FUEL TANK STRAP - Call your local BRP dealership

204560181

Unavailable

10

HEX. SCREW M8 X 80 - Call your local BRP dealership

207188060

Unavailable

11

Flat Washer 8 mm, Stainless

234082600

$2.43

12

Hex. Elastic Nut M8

232581600

$1.48

13

PROTECTOR PAD - Call your local BRP dealership

293830044

Unavailable

14

Black, Dart

293730006

$0.99

15

NEOPRENE PAD - Call your local BRP dealership

204560191

Unavailable

16

MUFFLER RUBBER PAD - Call your local BRP dealership

204060702

Unavailable

17

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

20

Tridon Gear Clamp

293650170

$1.99

21

Not Available As Spare Part - Friction Washer

Unavailable

22

FUEL VENT - Call your local BRP dealership

204560126

Unavailable

23

HOSE 1/4 - Call your local BRP dealership

204560178

Unavailable

24

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

25

CONNECTOR BOX - Call your local BRP dealership

275500428

Unavailable

26

Hose Clamp

204130156

Unavailable

27

Elbow Fitting 90°

293710105

$14.22

28

STOPPER CONNECTOR - Call your local BRP dealership

275500429

Unavailable

29

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

30

Tie Wrap 142 mm

293750002

$1.25

31

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

32

Tie Wrap 142 mm

293750002

$1.25

33

Filler Neck Ass'y

204560180

Unavailable

34

GASKET - Call your local BRP dealership

204560119

Unavailable

35

SPACER - Call your local BRP dealership This part replaces 275500801.

204560188

Unavailable

36

Phillips Screw M5 X 3

208553060

Unavailable

37

Loctite 271, 10 ml

293800005

$26.99

38

Flat Washer M5, Stainless

234051600

$0.77

39

Hex. Elastic Nut M5 | X

232551600

$1.15

40

Filler Neck Hose

204560294

Unavailable

41

NORMA CLAMP - Call your local BRP dealership

293650174

Unavailable

42

Tie-Rap 180 mm

414115200

$0.11

43

FUEL PUMP MODULE ASS'Y - Call your local BRP dealership | Includes 47 to 49

270600087

Unavailable

44

SENSOR LEVER - Call your local BRP dealership

270600051

Unavailable

45

Fuel Filter, Bosch

219700368

$39.99

46

Elastic Stop Nut 5 mm

232551200

$1.47

47

Flat Washer 5 mm, Stainless

234052400

$2.85

48

Gasket

293250088

$14.99

49

C-Ring, 9 Studs

275500679

$77.49

50

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

51

Circlip 5 mm

293370002

$5.50
