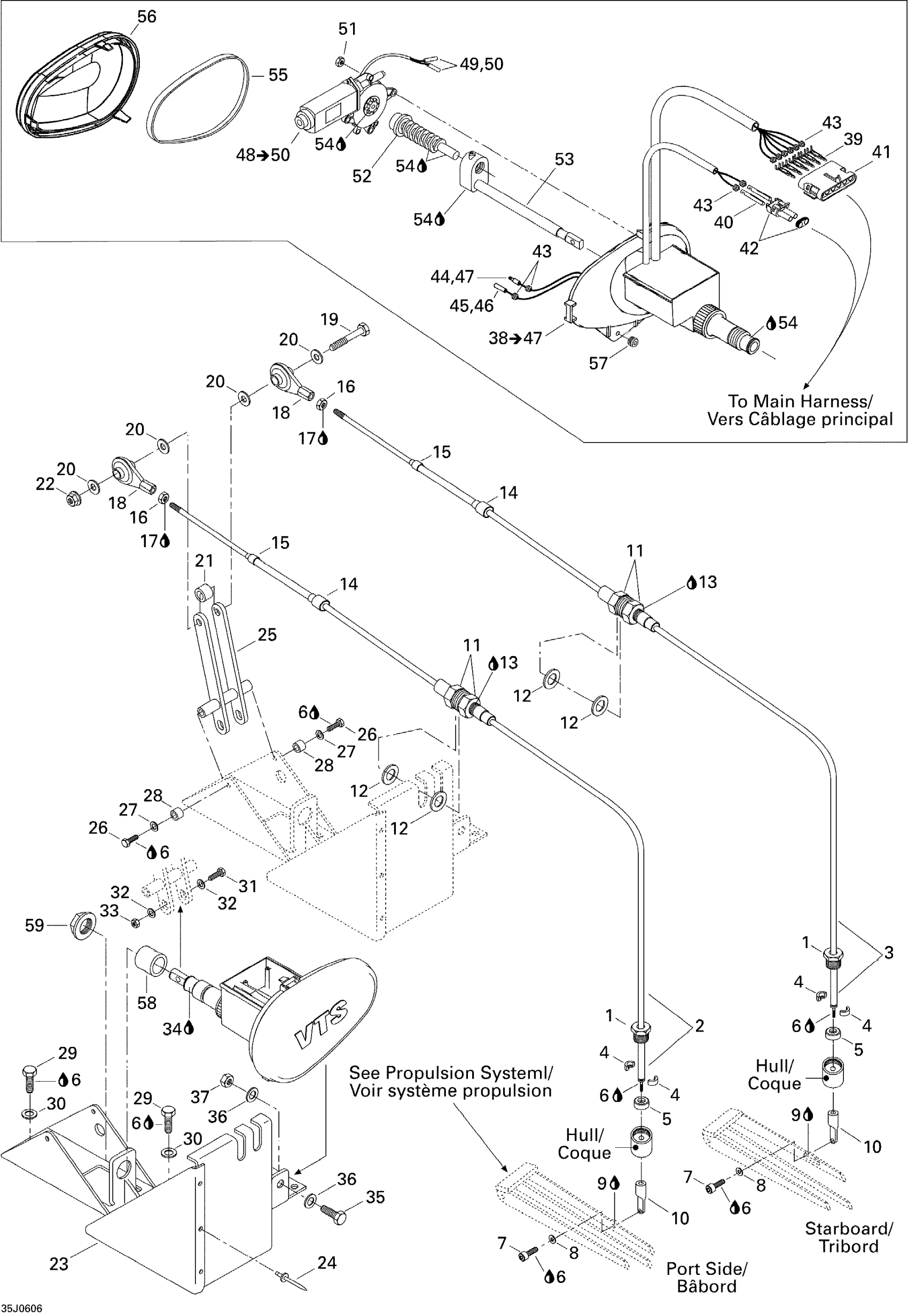

Sea-doo Islandia 220, 2006 Inlet Clearance System (ICS) Diagram

#

Description
Price

1

Steering Cable Lock This part replaces 277000784.

277001729

$10.41

2

LH WEEDLESS CABLE, PORT SIDE - Call your local BRP dealership

204200123

Unavailable

3

RH WEEDLESS CABLE, STARBOARD - Call your local BRP dealership

204200124

Unavailable

4

HALF RING - Call your local BRP dealership

204200009

Unavailable

5

THRU HULL SEAL - Call your local BRP dealership

204200118

Unavailable

6

Loctite 243, 10 ml

293800060

$20.77

7

Pivot Socket Screw M5 x 0.8

204100138

Unavailable

8

FLAT WASHER 5 MM - Call your local BRP dealership

234052100

$1.78

9

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

10

Joint

204200006

Unavailable

11

Hex. Jam Nut

212100006

Unavailable

12

Flat Washer

213200017

Unavailable

13

Loctite 243, 10 ml

293800060

$20.77

14

Boot, Large

277000473

Unavailable

15

Boot, Small

277000466

Unavailable

16

Hex. Nut

212100005

$0.90

17

Loctite 243, 10 ml

293800060

$20.77

18

BALL JOINT - Call your local BRP dealership

277000153

Unavailable

19

Hex. Screw M6 X 70

207067060

$4.62

20

Flat Washer M6, Stainless

234062600

$0.64

21

NYLON SPACER - Call your local BRP dealership

204200112

Unavailable

22

Hex. Elastic Stop Nut M6

232561600

$0.92

23

Weedless Support Ass'y

204471003

Unavailable

24

Pop Rivet 3/16"

293150039

$1.31

25

Pivot-arm Ass'y

204471006

Unavailable

26

Hex. Screw M6 X 16

207161660

$1.22

27

Stainless Flat Washer M6

234061600

$0.25

28

SPACER 6.7 MM - Call your local BRP dealership

277000584

Unavailable

29

Hex. Screw M6 X 30

207163060

$1.25

30

Stainless Flat Washer M6

234061600

$0.25

31

Hex. Screw M6 X 40

207164060

$2.74

32

Flat Washer M6, Stainless

234062600

$0.64

33

Hex. Elastic Stop Nut M6

232561600

$0.92

34

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

35

Hex. Screw M8 X 30

207183060

$1.30

36

Flat Washer M8, Stainless

234080600

$1.25

37

Hex. Elastic Nut M8

232581600

$1.25

38

V.T.S. HOUSING ASSY - Call your local BRP dealership | Includes 27 to 36

278001606

Unavailable

39

Male Terminal | XT Models

278000222

$2.55

40

Female Terminal

278000223

$2.55

41

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

42

Male Connector, 2 Circuits

278000220

$11.02

43

Wire Seal

278000218

$3.48

44

Insulated Sheath

278001008

$3.10

45

Insulated Sheath

278001007

$3.12

46

Female Terminal | DS 650 X

278001009

$2.55

47

Male Terminal

278000230

$3.48

48

Windshield Motor

278002579

$184.57

49

Insulation Sheath

278000231

$4.13

50

Male Terminal

278000230

$3.48

51

Hex. Elastic Stop Nut M6

232561600

$0.92

52

Worm Screw

278000428

$11.53

53

Sliding Block Ass’y

278001698

$34.42

54

Synthetic Grease, 400 G

293550010

Unavailable

55

GASKET - Call your local BRP dealership

293200027

Unavailable

56

V.T.S. COVER - Call your local BRP dealership

278000595

Unavailable

57

GROMMET - Call your local BRP dealership

293720015

Unavailable

58

ABS SPACER - Call your local BRP dealership

204470857

Unavailable

59

SPECIAL NUT M27 - Call your local BRP dealership

211100020

Unavailable
