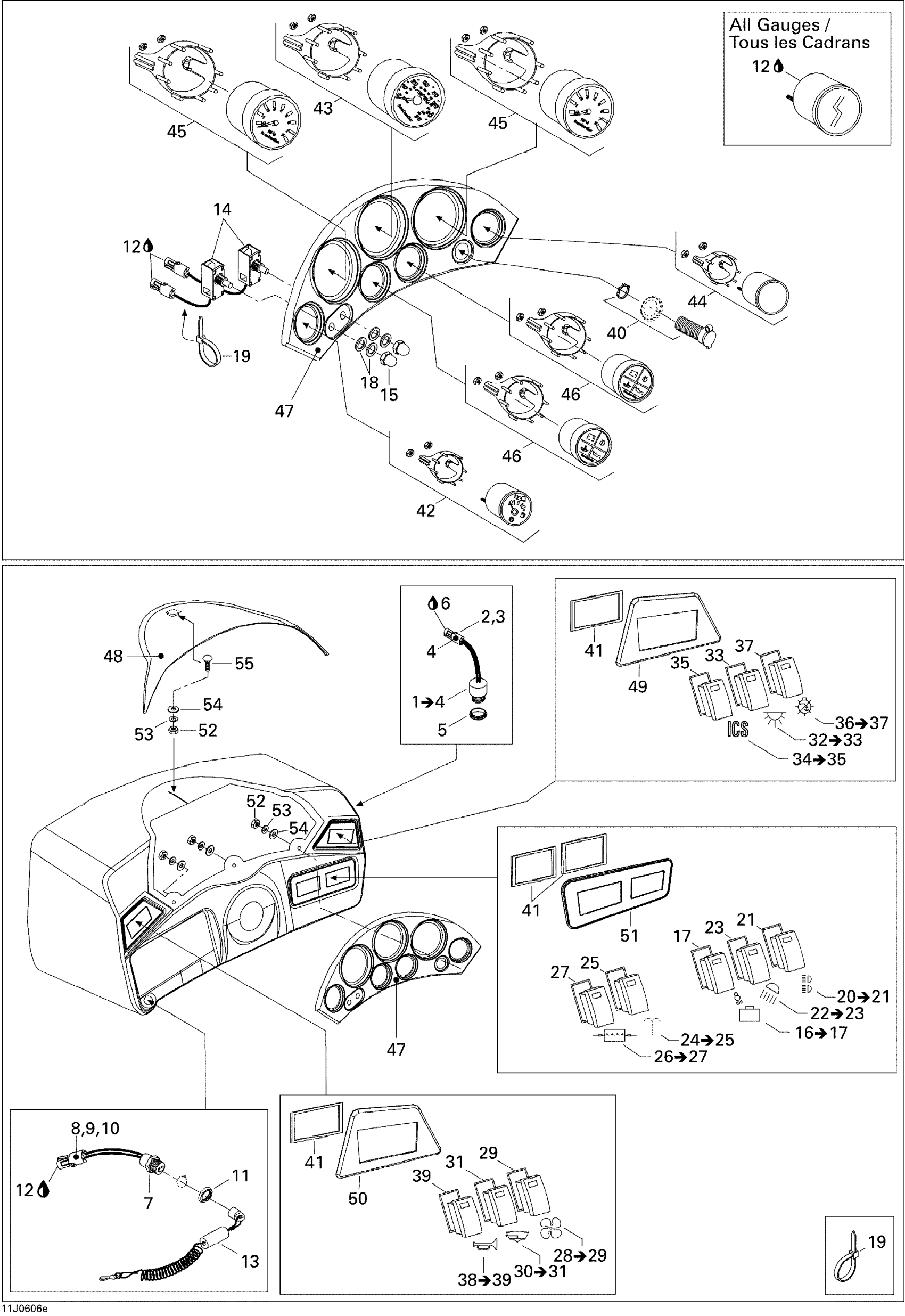

Sea-doo Islandia 220, 2006 Electrical Accessories 5 Diagram

#

Description
Price

1

Buzzer Ass'y

204470913

$92.99

2

Male Terminal | XT Models

278000222

$3.19

3

Wire Seal

278000218

$4.39

4

Female Housing, 2 Circuits

278000217

$9.59

5

Buzzer Nut

278000707

Unavailable

55

Elevator Bolt

204000130

Unavailable

6

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

7

Safety Switch This part replaces 278002325.

278002773

$114.99

8

Male Housing, 3 Circuits

278000273

$9.59

9

Wire Seal

278000218

$4.39

10

Female Terminal

278000223

$3.19

11

Safety Nut (DESS Switch)

278002963

$3.28

12

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

13

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99

14

IGNITION SWITCH - Call your local BRP dealership

278000621

Unavailable

15

IGNITION SWITCH CAP, RED - Call your local BRP dealership

278000565

Unavailable

16

LIGHT SWITCH - Call your local BRP dealership | Includes 51 to 52

204470402

Unavailable

17

Gasket

204470132

Unavailable

18

FLAT WASHER - Call your local BRP dealership

204100027

Unavailable

19

Tie Wrap 142 mm

293750002

$1.25

20

LIGHT SWITCH, BOARDING - Call your local BRP dealership | Includes 47 to 48

204470403

Unavailable

21

Gasket

204470132

Unavailable

22

LIGHT SWITCH, DOCKING - Call your local BRP dealership | Includes 49 to 50

204470404

Unavailable

23

Gasket

204470132

Unavailable

24

SWITCH, SMALL POOL PUMP - Call your local BRP dealership | Includes 53 to 54

204470405

Unavailable

25

Gasket

204470132

Unavailable

26

SWITCH, PASSENGER WATER PUMP - Call your local BRP dealership | Includes 54 to 55

204470406

Unavailable

27

Gasket

204470132

Unavailable

28

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

29

Gasket

204470132

Unavailable

30

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

31

Gasket

204470132

Unavailable

32

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

33

Gasket

204470132

Unavailable

34

INLET CLEARANCE SYSTEM SWITCH, ICS - Call your local BRP dealership | Includes 34 To 35

204471048

Unavailable

35

Gasket

204470132

Unavailable

36

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

37

Gasket

204470132

Unavailable

38

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$49.99

39

Gasket

204470132

Unavailable

40

DC Outlet

710001248

$37.99

41

LOCKING PLATE - Call your local BRP dealership

204470343

Unavailable

42

Fuel Gauge

204471055

Unavailable

43

Speedometer

204470943

Unavailable

44

GAUGE CAP - Call your local BRP dealership

204470969

Unavailable

45

Tachometer Gauge

204471019

Unavailable

46

ENGINE WARNING GAUGE - Call your local BRP dealership

204470959

Unavailable

47

DASH PANEL ASS?Y - Call your local BRP dealership

204471049

Unavailable

48

Dash Panel Top

204471080

Unavailable

49

RH Switch Panel

204471025

Unavailable

50

LH Switch Panel

204471026

Unavailable

51

Lower Switch Panel

204471051

Unavailable

52

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

53

Lock Washer 1/4”

211200025

$1.29

54

Flat Washer M6, Stainless

234062600

$0.77
