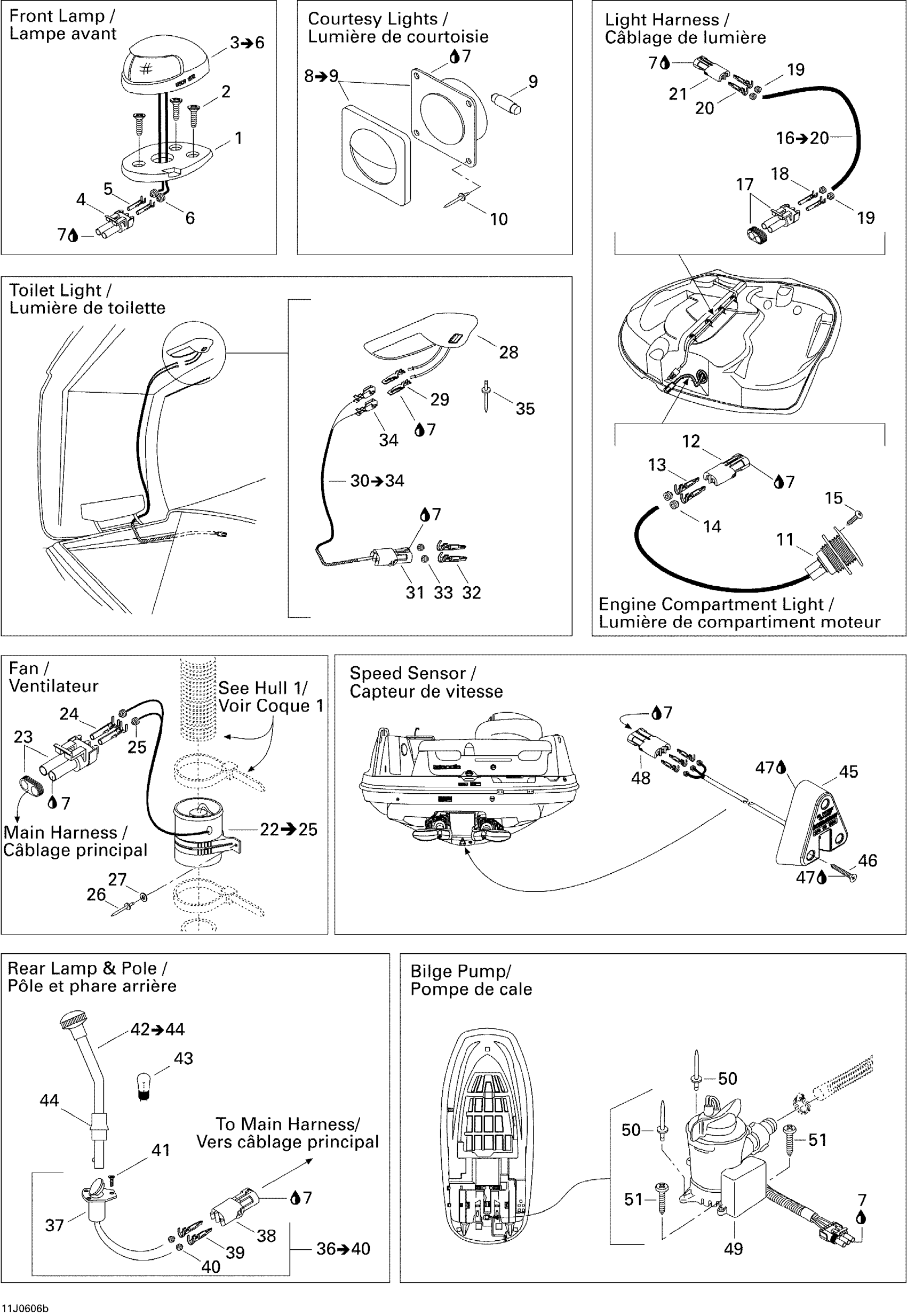

Sea-doo Islandia 220, 2006 Electrical Accessories 2 Diagram

#

Description
Price

1

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

2

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

3

NAVIGATION LIGHT, GREEN, STARBOARD - Call your local BRP dealership | Includes 5 to 8

204470407

Unavailable

3

Navigation Light, Red, Port Side | Includes 5 to 8

204470409

Unavailable

4

Female Housing, 2 Circuits

409209500

$15.27

5

Female Terminal

278001014

$3.28

6

Wire Seal

278001013

$3.28

7

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

8

Courtesy Light Ass'y | Includes 29 to 30

204470026

$47.49

9

BULB - Call your local BRP dealership

204470081

Unavailable

10

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

11

Engine Compartment Light

204470412

Unavailable

12

Female Housing, 2 Circuits

278000217

$9.59

13

Male Terminal | XT Models

278000222

$3.19

14

Wire Seal

278000218

$4.39

15

Hex. Flange Screw K40 X 25

241142560

$2.64

16

LIGHT HARNESS - Call your local BRP dealership

204470551

Unavailable

17

Male Connector, 2 Circuits

278000220

$15.49

18

Female Terminal

409007300

$0.45

19

Wire Seal

278000218

$4.39

20

Male Terminal | XT Models

278000222

$3.19

21

Female Housing, 2 Circuits

278000217

$9.59

22

Fan Ass'y | Includes 44 to 47

204470108

$144.99

23

Male Connector, 2 Circuits

278000220

$15.49

24

Female Terminal

278000223

$3.19

25

Wire Seal

278000218

$4.39

26

Pop Rivet 3/16"

293150008

$0.50

27

Flat Washer 5 mm, Stainless

234052600

$0.77

28

TOILET LIGHT ASS?Y - Call your local BRP dealership

204470414

Unavailable

29

Male Terminal

204470553

Unavailable

30

Toilet Light Harness | Includes 30 To 34

204470552

Unavailable

31

Female Housing, 2 Circuits

278000217

$9.59

32

Male Terminal | XT Models

278000222

$3.19

33

Wire Seal

278000218

$4.39

34

Not Available As Spare Part - Friction Washer

Unavailable

35

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

36

Rear Light Base Ass'y | Includes 33 to 36

278000674

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Female Housing, 2 Circuits

278000217

$9.59

39

Male Terminal | XT Models

278000222

$3.19

40

Wire Seal

278000218

$4.39

41

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

42

Rear Lamp Pole | Includes 19 to 21

204470816

Unavailable

43

Bulb

204470053

Unavailable

44

COLLAR - Call your local BRP dealership

204470350

Unavailable

45

Speed Sensor

278001993

$169.99

46

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

47

Silicone Sealant 51388, 300 ml

296000309

$36.99

48

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

49

Bilge Pump

204471072

Unavailable

50

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

51

TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

250000090

Unavailable
