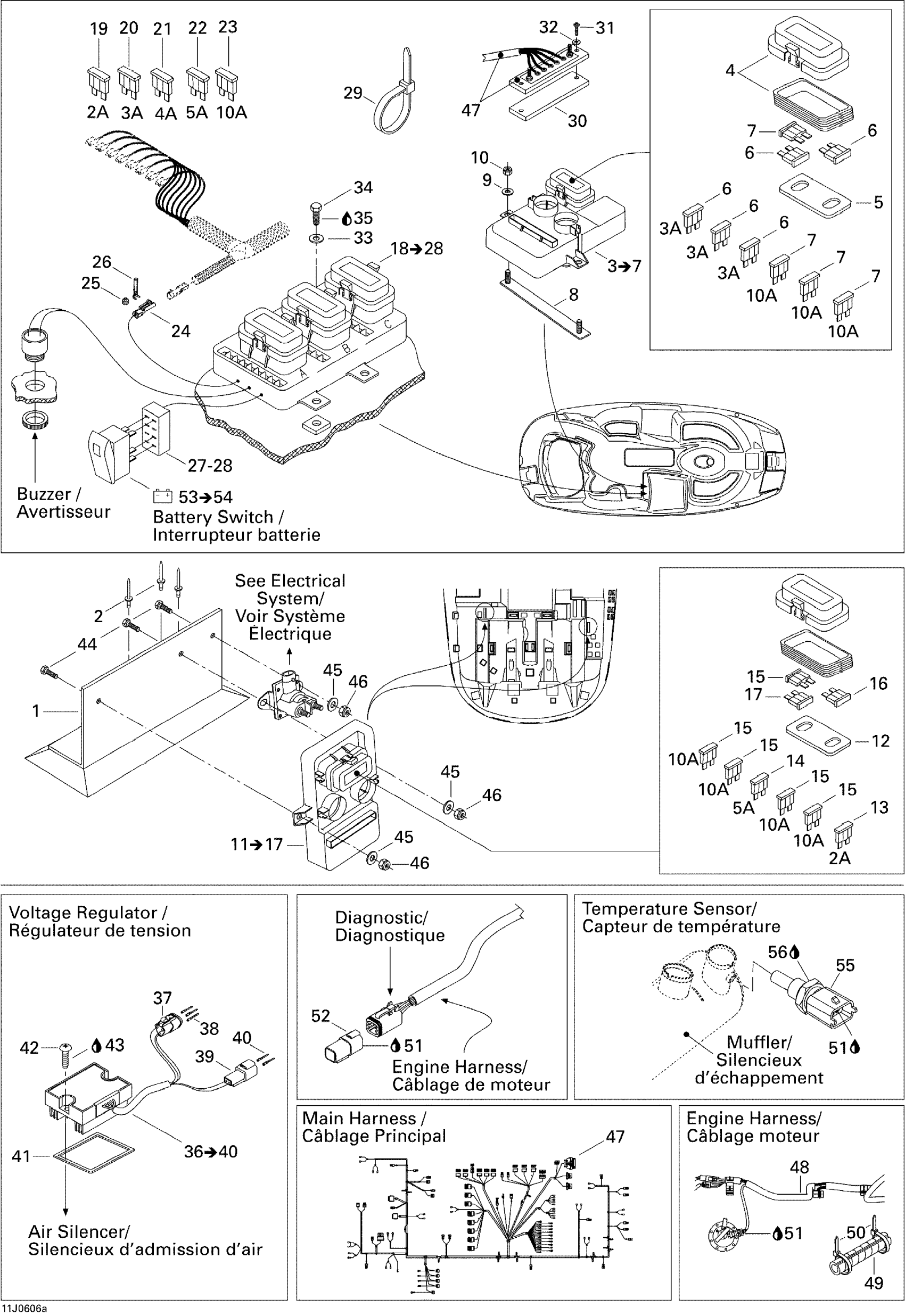

Sea-doo Islandia 220, 2006 Electrical Accessories 1 Diagram

#

Description
Price

1

BRACKET - Call your local BRP dealership

204471071

Unavailable

2

Avdel Rivet 3/16"

293150037

$0.47

3

Twin Engine Interface | Includes 3 to 7

204471065

Unavailable

4

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

5

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

6

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

7

Fuse, 10 Amperes | North America

278001197

$1.79

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Flat Washer M6, Stainless

234062600

$0.64

10

Hex. Elastic Stop Nut M6

232561600

$0.92

11

FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24

204470770

Unavailable

12

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

13

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

14

Fuse, 5 Amperes | CE

278000344

$3.12

15

Fuse, 10 Amperes | North America

278001197

$1.79

16

Fuse, 20 Amperes

409003900

$3.12

17

Fuse, 30 Amperes

410917200

$3.12

18

FUSE BLOCK - Call your local BRP dealership | Includes 18 To 28

204470610

Unavailable

19

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

20

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Fuse, 5 Amperes | CE

278000344

$3.12

23

Fuse, 10 Amperes | North America

278001197

$1.79

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Male Terminal | Europe Models

409012900

$3.12

26

Not Available As Spare Part - Friction Washer

Unavailable

27

MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001321

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Tie Wrap 142 mm

293750002

$0.88

30

Aluminum Plate

204471076

Unavailable

31

Phillips Screw M4 X 10

208641060

$0.96

32

Flat Washer 4 mm, Stainless

234041600

$0.91

33

Flat Washer M6, Stainless

234062600

$0.64

34

Hex. Cap Screw M6 X 12

207161260

$1.21

35

Loctite 243, 10 ml

293800060

$20.77

36

REGULATOR - Call your local BRP dealership | Includes 11 to 15

278001969

Unavailable

37

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$27.58

38

Female Terminal

278000632

$1.69

39

Male Housing, 2 Circuits

409206900

$8.72

40

Female Terminal

515175567

$5.85

41

SEAL - Call your local BRP dealership

293250123

Unavailable

42

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

208663060

Unavailable

43

Loctite 271, 10 ml

293800005

$20.77

44

Hex. Forming Screw M6 X 20

207162060

$1.03

45

Flat Washer M6, Stainless

234062600

$0.64

46

Hex. Elastic Stop Nut M6

232561600

$0.92

47

Main Harness

204471017

Unavailable

48

Engine Harness | Starboard

204470811

Unavailable

48

Engine Harness

204470973

Unavailable

49

SLIT CONDUIT - Call your local BRP dealership

204471077

Unavailable

50

Tie Wrap 142 mm

293750002

$0.88

51

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

52

Diagnostic Connector

278002704

$15.57

53

BATTERY SWITCH - Call your local BRP dealership | Includes 53 to 54

204470544

Unavailable

54

Gasket

204470132

Unavailable

55

Temperature Sensor

278002895

$31.82

56

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48
