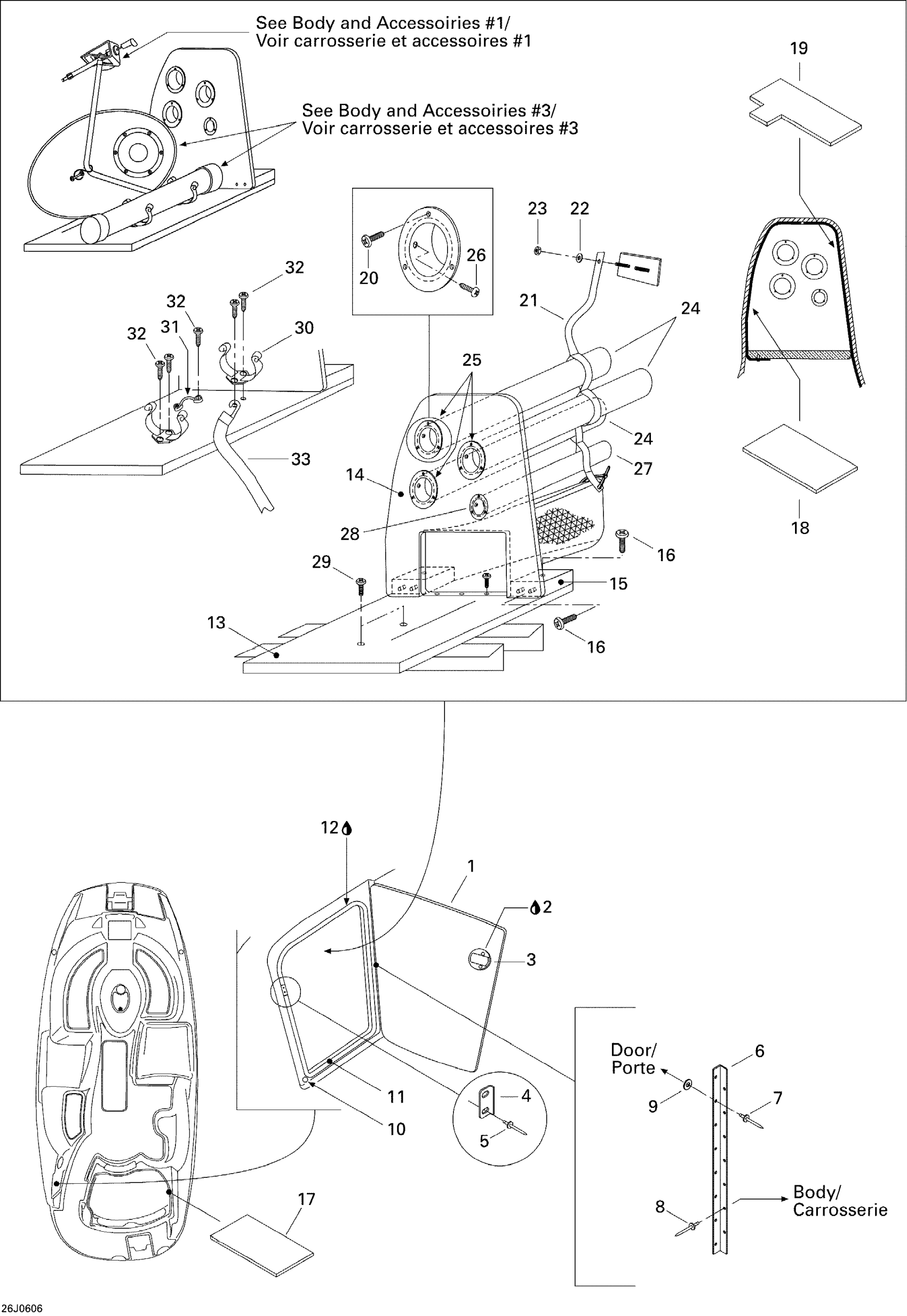

Sea-doo Islandia 220, 2006 Storage Compartment Diagram

#

Description
Price

1

Storage Door

204072154

Unavailable

2

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

3

VERROU, WHITE - Call your local BRP dealership

204070063

Unavailable

4

KEEPER - Call your local BRP dealership

204071926

Unavailable

5

Pop Rivet 3/16"

293150008

$0.50

6

Hinge

204071809

Unavailable

7

Pop Rivet 3/16"

293150008

$0.50

8

Pop Rivet 3/16"

293150014

$1.09

9

Flat Washer M5, Stainless

234051600

$0.77

10

BUMPER - Call your local BRP dealership

204070940

Unavailable

11

Rubber Trim

204070752

Unavailable

12

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

13

Floor

204072420

Unavailable

14

Bulkhead

204072422

Unavailable

15

Mounting Block

204070751

Unavailable

16

TAPPING PHILLIPS SCREW 4.2 X 38 - Call your local BRP dealership

209643860

Unavailable

17

DECK CARPET, OUTER - Call your local BRP dealership

204072425

Unavailable

18

DECK CARPET, OUTER - Call your local BRP dealership

204072425

Unavailable

19

Deck Carpet, Inner

204072426

Unavailable

20

Phillips Tapping Screw

204100058

$0.66

21

Not Available As Spare Part - Friction Washer

Unavailable

22

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

23

Hex. Elastic Stop Nut M6

232561600

$1.15

24

Storage Tube 3” X 58”

204071033

Unavailable

25

Tube Collar

204071199

Unavailable

26

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

27

STORAGE TUBE 2? X 58? - Call your local BRP dealership

204071201

Unavailable

28

Tube Collar

204071202

Unavailable

29

TAPPING PHILLIPS SCREW 4.2 X 38 - Call your local BRP dealership

209643860

Unavailable

30

POLE CLIP - Call your local BRP dealership | Challenger S

204070342

Unavailable

31

Strap Tie

204070234

Unavailable

32

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

33

ICE CHEST STRAP - Call your local BRP dealership

204070905

Unavailable
