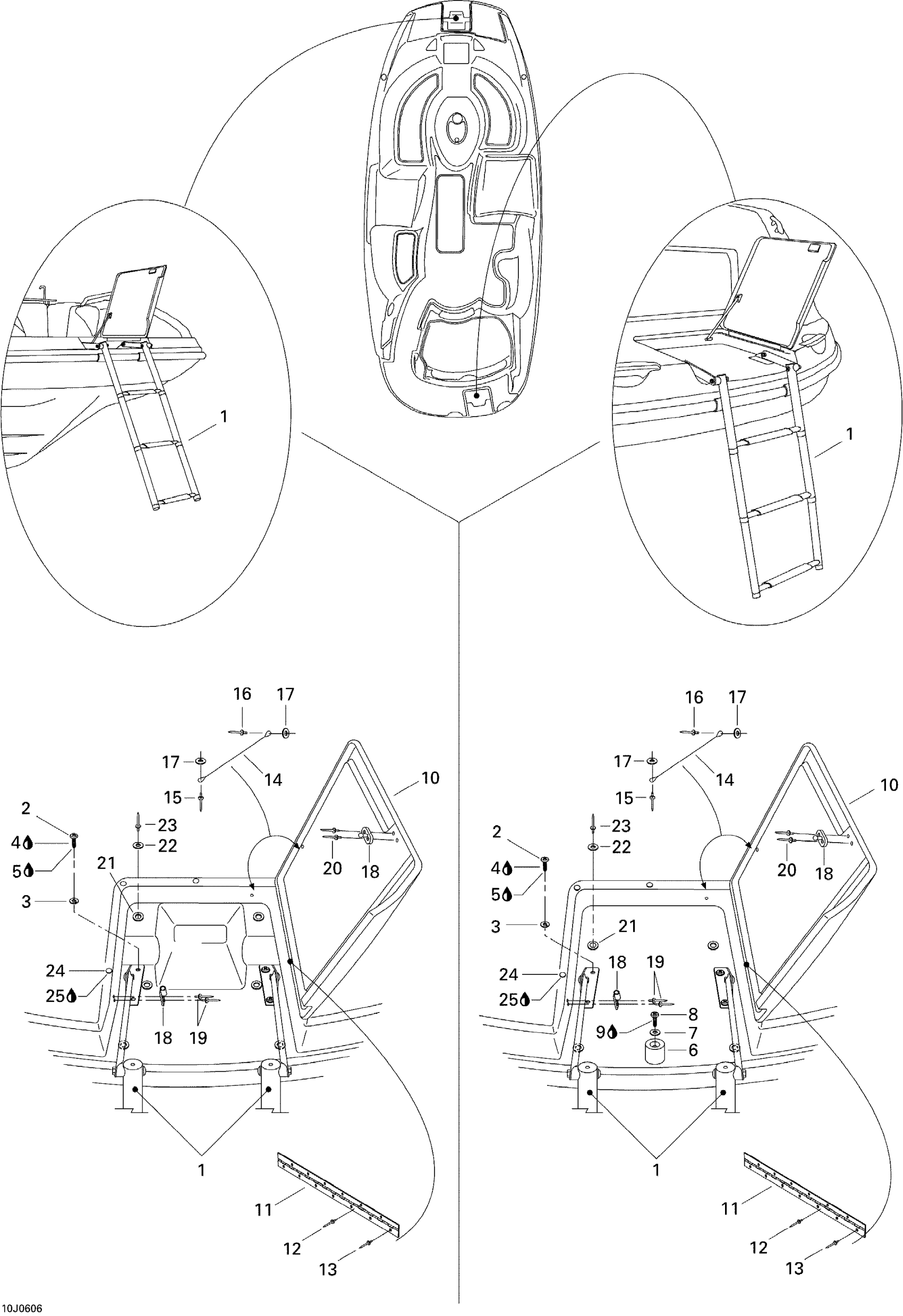

Sea-doo Islandia 220, 2006 Ladder, Front and Rear Diagram

#

Description
Price

1

LADDER, 3 STEPS - Call your local BRP dealership

204071530

Unavailable

2

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

208663060

Unavailable

3

Lock Washer Helical M6

234161601

$1.15

4

Loctite 243, 10 ml

293800060

$21.49

5

Silicone Sealant 51388, 300 ml

296000309

$36.99

6

RUBBER BUMPER - Call your local BRP dealership

204071720

Unavailable

7

Flat Washer 4 mm, Stainless

234042600

$1.15

8

TAPPING PHILLIPS SCREW 4.2 X 38 - Call your local BRP dealership

209643860

Unavailable

9

Silicone Sealant 51388, 300 ml

296000309

$36.99

10

Ladder Door

204072580

Unavailable

11

LADDER DOOR HINGE - Call your local BRP dealership

204071811

Unavailable

12

Pop Rivet 3/16"

293150008

$0.50

13

Pop Rivet 3/16"

293150088

$0.99

14

RETAINER CABLE - Call your local BRP dealership

204071498

Unavailable

15

Pop Rivet 3/16"

293150043

$2.09

16

Pop Rivet 3/16"

293150039

$1.49

17

Flat Washer M5, Stainless

234051600

$0.77

18

Door Catch

204070759

Unavailable

19

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

20

Pop Rivet 1/8”

293150015

$0.40

21

BUMPER PAD - Call your local BRP dealership

204073815

Unavailable

22

Flat Washer 4 mm, Stainless

234041600

$1.15

23

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

24

BUMPER - Call your local BRP dealership

204070940

Unavailable

25

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99
