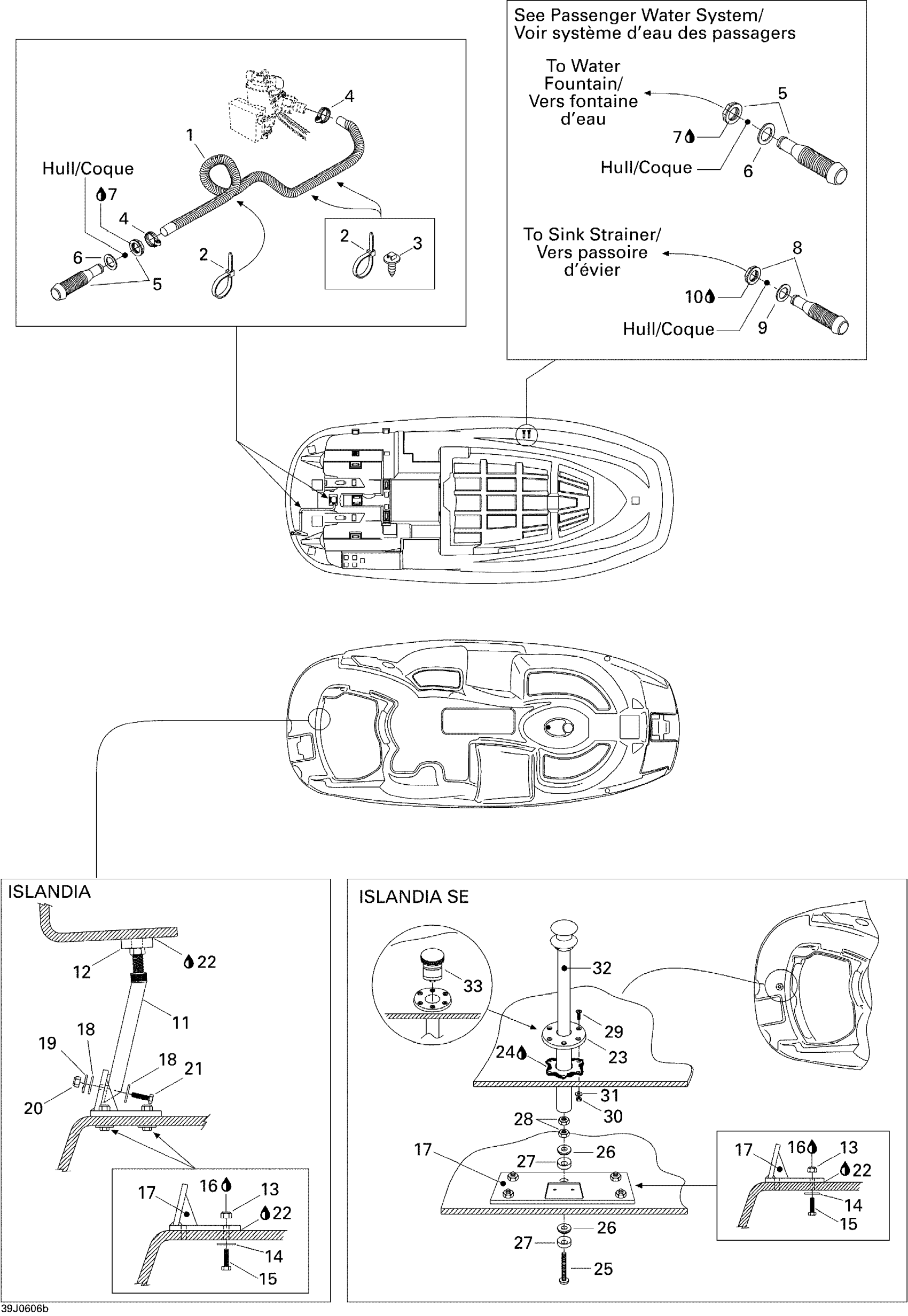

Sea-doo Islandia 220, 2006 Hull 2 Diagram

#

Description
Price

1

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

2

Tie-Rap 180 mm

414115200

$0.11

3

Black, Dart

293730006

$0.99

4

Tridon Clamp

293650016

$10.99

5

Fitting

293710162

$13.49

6

GASKET - Call your local BRP dealership This part replaces 293250251.

293250006

Unavailable

7

Silicone Sealant 51388, 300 ml

296000309

$36.99

8

Thru Hull Fitting 5/8"

204100028

Unavailable

9

GASKET - Call your local BRP dealership

293250028

Unavailable

10

Silicone Sealant 51388, 300 ml

296000309

$36.99

11

Upper Deck Support | Except Islandia SE

204050372

Unavailable

12

Support Insert | Except Islandia SE

204050675

Unavailable

13

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

14

Flat Washer 10 mm, Stainless

234002600

$2.22

15

HEX. SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership

250000188

Unavailable

16

Silicone Sealant 51388, 300 ml

296000309

$36.99

17

Deck Support Ass'y - Call your local BRP dealership

204050671

Unavailable

18

Flat Washer 8 mm, Stainless

234082600

$2.43

19

Lock Spring Washer 8 mm, Stainless

234180602

$1.16

20

Hex. Elastic Nut M8

232581600

$1.48

21

HEX. SCREW M8 X 35 - Call your local BRP dealership

207183560

Unavailable

22

Silicone Sealant 51388, 300 ml

296000309

$36.99

23

Ski Post Ass'y

204050677

Unavailable

24

Silicone Sealant 51388, 300 ml

296000309

$36.99

25

Screw Hex. 6"

204100172

Unavailable

26

SPHERICAL WASHER A - Call your local BRP dealership

204100167

Unavailable

27

SPHERICAL WASHER B - Call your local BRP dealership

204100168

Unavailable

28

Hex. Nut 3/4-10

204100169

Unavailable

29

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

30

Hex. Elastic Stop Nut M6

232561600

$1.15

31

Flat Washer M6, Stainless

234062600

$0.77

32

SKI PYLON ASS'Y - Call your local BRP dealership

204050682

Unavailable

33

Plug Ass'y

204050688

Unavailable
