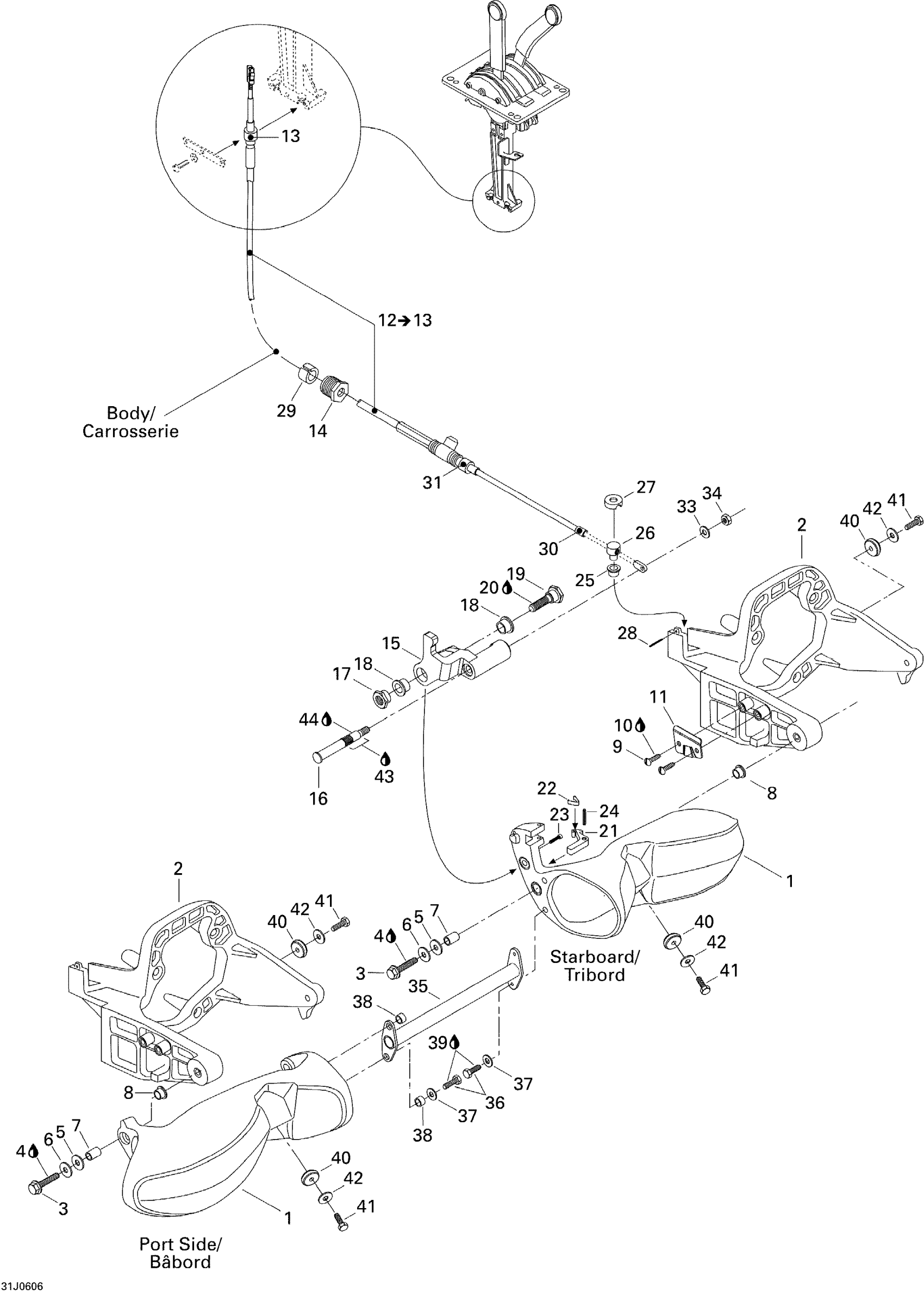

Sea-doo Islandia 220, 2006 Reverse Diagram

#

Description
Price

1

NEEDS DESCRIPTION This part replaces 204170217.

423465080

Unavailable

1

Reverse Gate, Starboard

268000107

$220.32

2

Reverse Gate Support

204170214

$145.57

3

Hex. Flange Screw 18 X 1.56

204100163

$7.22

4

Loctite 243, 10 ml

293800060

$20.77

5

WASHER, NYLON - Call your local BRP dealership

204100128

Unavailable

6

Flat Washer 8 mm, Stainless

234082600

$1.98

7

Sleeve

204170177

$27.27

8

Bushing

204130237

$8.80

9

SCREW-PAN HD. 10-24 UNC X .50 SS - Call your local BRP dealership

204100122

Unavailable

10

Loctite 243, 10 ml

293800060

$20.77

11

STOP PAWL - Call your local BRP dealership

271000485

Unavailable

12

Reverse Cable

268000109

$119.57

13

End Piece

277001583

$11.14

14

Steering Cable Lock This part replaces 277000784.

277001729

$10.41

15

NEEDS DESCRIPTION | Includes 7 to 8 This part replaces 204170230.

0460979

Unavailable

16

PIN - Call your local BRP dealership

204130037

Unavailable

17

SHOULDER NUT - Call your local BRP dealership

204100123

Unavailable

18

BUSHING - Call your local BRP dealership

204130036

Unavailable

19

SHOULDER SCREW - Call your local BRP dealership

204100124

Unavailable

20

Loctite 271, 10 ml

293800005

$20.77

21

HOOK - Call your local BRP dealership

204170220

Unavailable

22

Spring

271000431

$12.13

23

Socket Head Screw

204100127

$3.07

24

Pin

211400009

$1.31

25

Bushing

204130237

$8.80

26

THREADED END PIECE - Call your local BRP dealership

204130038

Unavailable

27

Reverse Cable Bushing - Call your local BRP dealership This part replaces 204170212.

296000396

Unavailable

28

Cotter Pin

204130040

$2.30

29

RUBBER GROMMET - Call your local BRP dealership

204130041

Unavailable

30

Wiper Rod

277001582

$8.83

31

End Piece

277001583

$11.14

33

Flat Washer 5 mm, Stainless

234052600

$0.64

34

NEEDS DESCRIPTION This part replaces 204100034.

0460000

Unavailable

35

Reverse Rod

204170180

Unavailable

36

SCREW HEX. M4 X 20 - Call your local BRP dealership

207142060

Unavailable

37

Flat Washer 4 mm, Stainless

234042600

$0.92

38

SPACER BUSHING - Call your local BRP dealership

204170026

Unavailable

39

Loctite 243, 10 ml

293800060

$20.77

40

Anode Zinc

271001813

$13.62

41

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

42

Stainless Flat Washer M6

234061600

$0.25

43

Was 293800041 Loctite Primer 7649

219704458

$41.99

44

Sealant Loctite 648

219703000

$35.72
