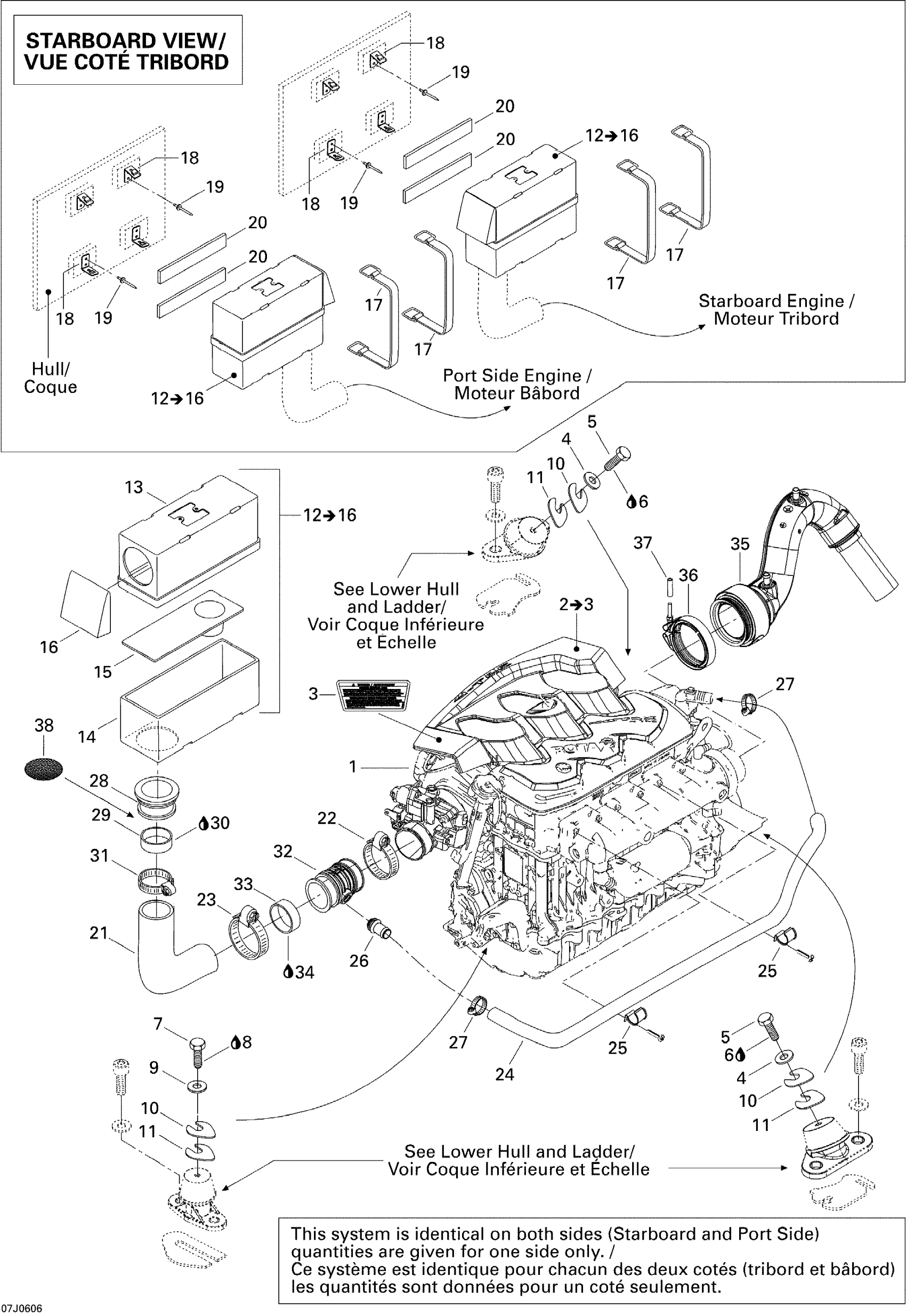

Sea-doo Islandia 220, 2006 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Rotax Engine 4 Strokes, 1503 NA

270000639

Unavailable

2

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

3

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

4

Flat Washer 8 mm, Stainless

234082600

$2.43

5

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

6

Loctite 243, 10 ml

293800060

$21.49

7

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

8

Loctite 243, 10 ml

293800060

$21.49

9

Flat Washer 8 mm, Stainless

234082600

$2.43

10

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

11

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

12

Air Silencer Ass'y

204250258

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Retainer Strap

293850097

$11.64

18

Strap Clip 90°

204060017

Unavailable

19

Pop Rivet 3/16"

293150088

$0.99

20

NEOPRENE, METER - Call your local BRP dealership

202000024

Unavailable

21

INTAKE HOSE - Call your local BRP dealership

204340435

Unavailable

22

TRIDON GEAR CLAMP - Call your local BRP dealership

293650061

Unavailable

23

Tridon Clamp

293650179

$11.49

24

Formed Hose

270000949

$47.99

25

Retainer

275500664

$14.75

26

Breather Valve

273000234

$14.49

27

Tridon Gear Clamp

293650051

$4.19

28

INTAKE ADAPTATOR - Call your local BRP dealership

508000254

Unavailable

29

ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership

204250275

Unavailable

30

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

31

Tridon Clamp

293650179

$11.49

32

Adaptor Hose, Engine

204250276

Unavailable

33

ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership

204250275

Unavailable

34

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

35

EXHAUST PIPE - Call your local BRP dealership

274001030

Unavailable

36

Exhaust Clamp This part replaces 274000959.

274001472

$58.99

37

Polyurethane Hose 10000Mm Long

219704410

$56.99

38

Intake Screen

204250395

$25.99
