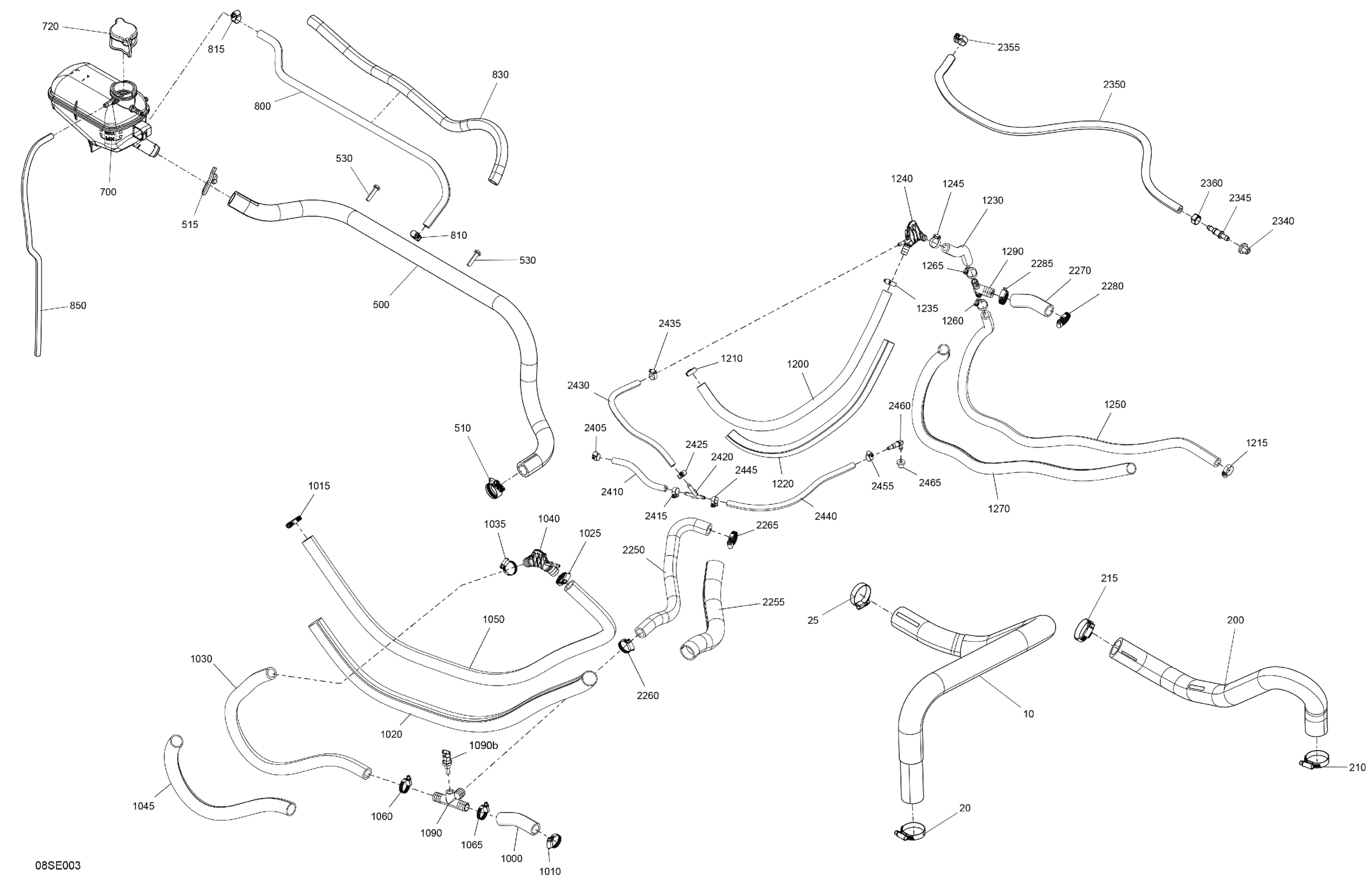

Sea-doo WAKE - PRO - 13SB - Northern Lichen - Audio, 2025 Engine - Cooling Diagram

#

Description
Price

10

Hose

276000516

$59.67

20

Norma Clamp

293650245

$13.51

25

Norma Clamp

293650245

$13.51

200

Formed Hose

276000517

$52.21

210

Norma Clamp

293650245

$13.51

215

Norma Clamp

293650245

$13.51

500

Coolant Tank Hose

276000537

$35.04

510

Tridon Gear Clamp

293650019

$5.52

515

Spring Clamp

293650115

$2.82

530

Hex. Screw 10-14 X 7/8”

211000023

$3.34

700

Coolant Tank

276000419

$108.18

720

Pressure Cap | Includes 720 to 720a

276000100

$23.85

800

Hose 6,4 MM ID

276000425

$6.91

810

Gear Clamp

293650287

$2.00

815

Gear Clamp

293650287

$2.00

830

Was 409901800 Tubing (13 mm)

219704400

$10.79

850

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

1000

Hose 19Mm X 4000 mm Long

219704613

$46.99

1010

Gear Clamp

293650284

$4.15

1015

Gear Clamp

293650284

$4.15

1020

Tubing 25 MM 1000MM Long

219704402

$14.57

1025

Gear Clamp

293650284

$4.15

1030

Hose 19Mm X 4000 mm Long

219704613

$46.99

1035

Gear Clamp

293650284

$4.15

1040

Fitting

276000547

$4.85

1045

Tubing 25 MM 1000MM Long

219704402

$14.57

1050

Hose 19Mm X 4000 mm Long

219704613

$46.99

1060

Gear Clamp

293650284

$4.15

1065

Gear Clamp

293650284

$4.15

1090

Temperature Sensor Fitting Ass'y | Includes 1090 to 1090b

293710164

$54.45

1090b

Temperature Sensor

278002895

$36.54

1200

Was 276000001 Hose 12.5 mm

219704394

$49.22

1210

Clamp Gear

293650285

$3.07

1215

Clamp Gear

293650285

$3.07

1220

Was 515175319 Tubing 22 mm

219704423

$13.60

1230

Was 276000001 Hose 12.5 mm

219704394

$49.22

1235

Clamp Gear

293650285

$3.07

1240

Fitting

276000565

$4.85

1245

Clamp Gear

293650285

$3.07

1250

Was 276000001 Hose 12.5 mm

219704394

$49.22

1260

Clamp Gear

293650285

$3.07

1265

Clamp Gear

293650285

$3.07

1270

Was 515175319 Tubing 22 mm

219704423

$13.60

1290

T-Fitting

293710132

$10.88

2250

Formed Hose

276000422

$22.36

2255

Tubing 25 MM 1000MM Long

219704402

$14.57

2260

Gear Clamp

293650284

$4.15

2265

Gear Clamp

293650284

$4.15

2270

Hose 19Mm X 4000 mm Long

219704613

$46.99

2280

Gear Clamp

293650284

$4.15

2285

Gear Clamp

293650284

$4.15

2340

Grommet

293720029

$1.30

2345

Male Connector

414518500

$4.01

2350

Hose 6,35 Mm Id 4000Mm Long

219704547

$11.48

2355

Gear Clamp

293650287

$2.00

2360

Oetiker Gear Clamp

293650025

$2.82

2405

Gear Clamp

293650287

$2.00

2410

Hose 6,35 Mm Id 4000Mm Long

219704547

$11.48

2415

Gear Clamp

293650287

$2.00

2420

Y-Fitting

293710059

$9.40

2425

Gear Clamp

293650287

$2.00

2430

Hose 6,35 Mm Id 4000Mm Long

219704547

$11.48

2435

Gear Clamp

293650287

$2.00

2440

Hose 6,35 Mm Id 4000Mm Long

219704547

$11.48

2445

Gear Clamp

293650287

$2.00

2455

Gear Clamp

293650287

$2.00

2460

Elbow Male Connector

414580600

$4.01

2465

Grommet

293720029

$1.30
