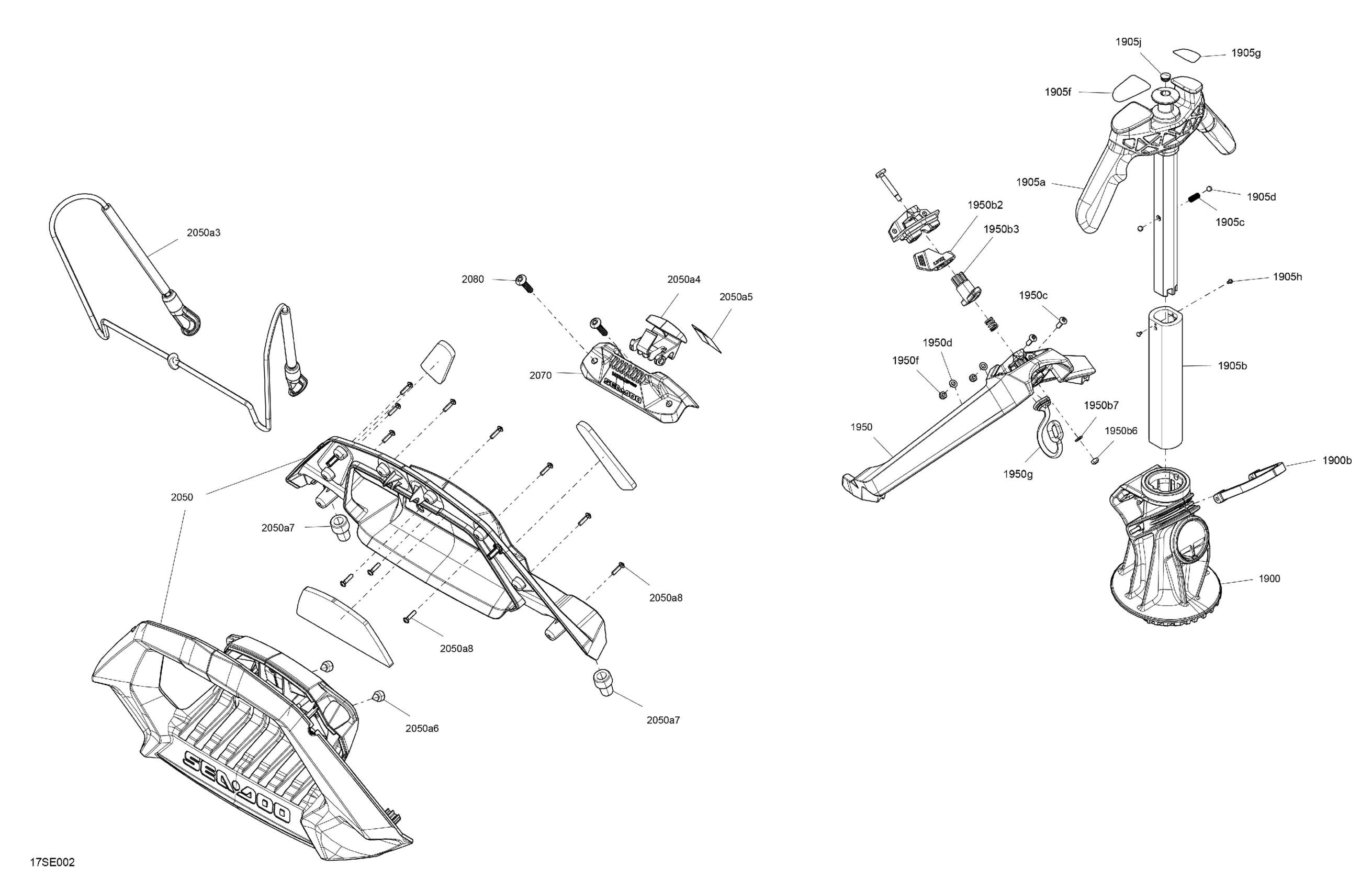

Sea-doo WAKE - BASE - 35SC - Northern Lichen, 2025 Body - Accessories Diagram

Description

Price

1900

Pylon Base Assembly | Includes 1900 to 1900b

291004994

$284.99

1900b

Replacing Kit for Pylon Strap

295100740

$26.49

1905a

Ski Handles

291005230

$291.49

1905b

Aluminum Post

291004948

$224.99

1905c

Ball Spring

269501651

$11.99

1905d

Ball 1/4"

293350062

$2.69

1905f

Warning Decal Ski Post

219905699

$11.99

1905g

Warning Decal Ski Post

219905700

$11.99

1905h

Type "U" Metallic Drive Screw

293150167

$2.29

1905j

Bumper Plug, Black

291001519

$5.49

1950

Wishbone Support Ass'y | Includes 1950 to 1950g

291005180

$85.99

1950b2

RH Lever

708200374

$4.02

1950b3

RH Latch

708200772

$7.94

1950b6

Elastic Stop Nut 5 mm

232551200

$1.47

1950b7

Flat Washer | XT

211200035

$0.55

1950c

Socket Head Screw M5 X 16

205451660

$1.15

1950d

Flat Washer M5, Stainless

234051600

$0.77

1950f

Elastic Stop Nut 5 mm

232551200

$1.47

1950g

Strap

273000344

$15.99

2050

Wakeboard Support Kit

295100838

$254.49

2050a3

Elastic Rope Ass'y

291002979

$37.99

2050a4

Latch

291002980

$28.99

2050a5

Warning WAKE

219903228

Unavailable

2050a6

Rubber Bumper

293830005

$8.09

2050a7

Rubber Buffer

293830119

$18.49

2050a8

Flange Torx Screw K40 X 16

250000287

$2.11

2070

Upper Anchorage

291004675

$18.99

2080

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30
