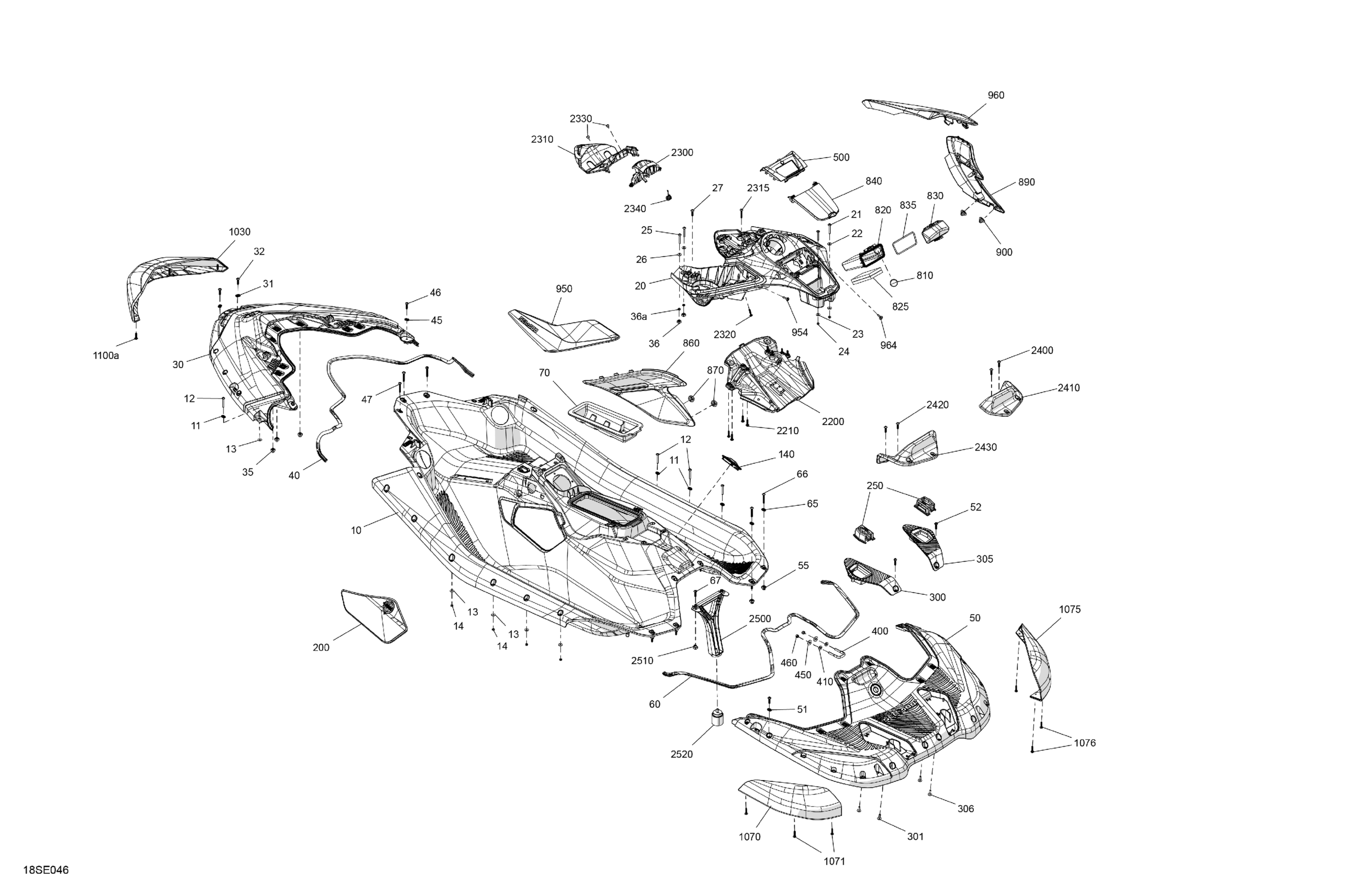

Sea-doo SPARK - TRIXX - 1UP - 67SC - Northern Lichen - Audio, 2025 Body - System Diagram

#

Description
Price

10

Deep Black, Central Deck

291005936

$1.00

11

Oval Washer

291006387

$1.77

12

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

13

Flat Washer M6, Stainless

234062600

$0.77

14

Elastic Stop Nut M6, Brass

232561200

$4.23

20

Deep Black, Console

291005937

$189.99

21

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

22

Flat Washer M6, Stainless

250200150

$3.49

23

Flat Washer M6, Stainless

234062600

$0.77

24

Elastic Stop Nut M6, Brass

232561200

$4.23

25

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

26

Flat Washer M6, Stainless

250200150

$3.49

27

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

30

Norther Lichen, Front Deck

291006382

$259.99

31

Oval Washer

291006387

$1.77

32

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

35

Insert

291003793

$3.56

36

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

36a

Elastic Stop Nut M6, Brass

232561200

$4.23

40

Gasket

293250608

$43.99

45

Oval Washer

291006387

$1.77

46

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

47

Screw-Plastite Torx Cone M6.81X50

250001283

$4.76

50

Norther Lichen, Rear Deck

291006383

$249.99

51

Oval Washer

291006387

$1.77

52

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

55

Insert

291003793

$3.56

60

Gasket

293250609

$43.99

65

Oval Washer

291006387

$1.77

66

Screw-Plastite Torx Cone M6.81X50

250001283

$4.76

67

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

70

Upper Access Cover Ass'y

291006167

$16.99

140

RH Rear Access Cover Ass'y

291006039

$43.99

200

LH Front Access Cover Ass'y

291005940

$48.99

250

Linq Bases Kit

295100858

$13.30

300

LH LINQ Support

291005979

$44.99

301

Hexagonal Cap Screw M6 X 25

250000978

$4.44

305

RH LINQ Support

291006029

$44.99

306

Hexagonal Cap Screw M6 X 25

250000978

$4.44

400

U-Clamp

292000933

$59.49

410

Flat Washer M8.5 x 18

293050001

$3.07

450

Flat Washer 8 mm, Stainless

234082600

$2.43

460

Hex. Elastic Nut M8 Brass

232581200

$2.22

500

Deep Black, Console Panel

291006007

$73.99

810

USB Plug

269502324

$3.09

820

Storage Box

291006037

$24.49

825

Box Storage Foam

264000159

$13.49

830

Box Cover

291006028

$62.99

835

Gasket

293250605

$19.99

840

Deep Black, Box Cover

291006006

$62.99

860

Dazzling Blue, LH Knee Pad

291006384

$105.99

870

Oval Washer

705018553

$5.61

890

Dazzling Blue, RH Knee Pad

291006385

$102.99

900

Oval Washer

705018553

$5.61

950

Dazzling Blue, LH Body Panel

291006271

$49.99

954

Hexagonal Cap Screw M6 X 25

250000978

$4.44

960

Dazzling Blue, RH Body Panel

291006272

$49.99

964

Hexagonal Cap Screw M6 X 25

250000978

$4.44

1030

Front Bumper Kit

291006242

$116.49

1070

LH Rear Bumper

291005944

$35.99

1071

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

1075

RH Rear Bumper

291005945

$35.99

1076

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

1100a

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

2200

Under Console Trim

291005957

$92.99

2210

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

2300

Latch

269502524

$12.99

2310

Deep Black, System Audio Support

269502525

$14.82

2315

Screw-Plastite Torx Cone Hd. M6.81X

250001279

$4.76

2320

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

2330

Rubber Bumper

293830005

$8.09

2340

Torsion Spring

269502534

$28.99

2400

RH Footrest Ass'y

291006034

$73.99

2410

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

2420

LH Footrest Ass'y

291006031

$73.99

2430

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

2500

Rear Support

291006030

$27.99

2510

Insert

291003793

$3.56

2520

Rear Support Mount

291003694

$20.99
