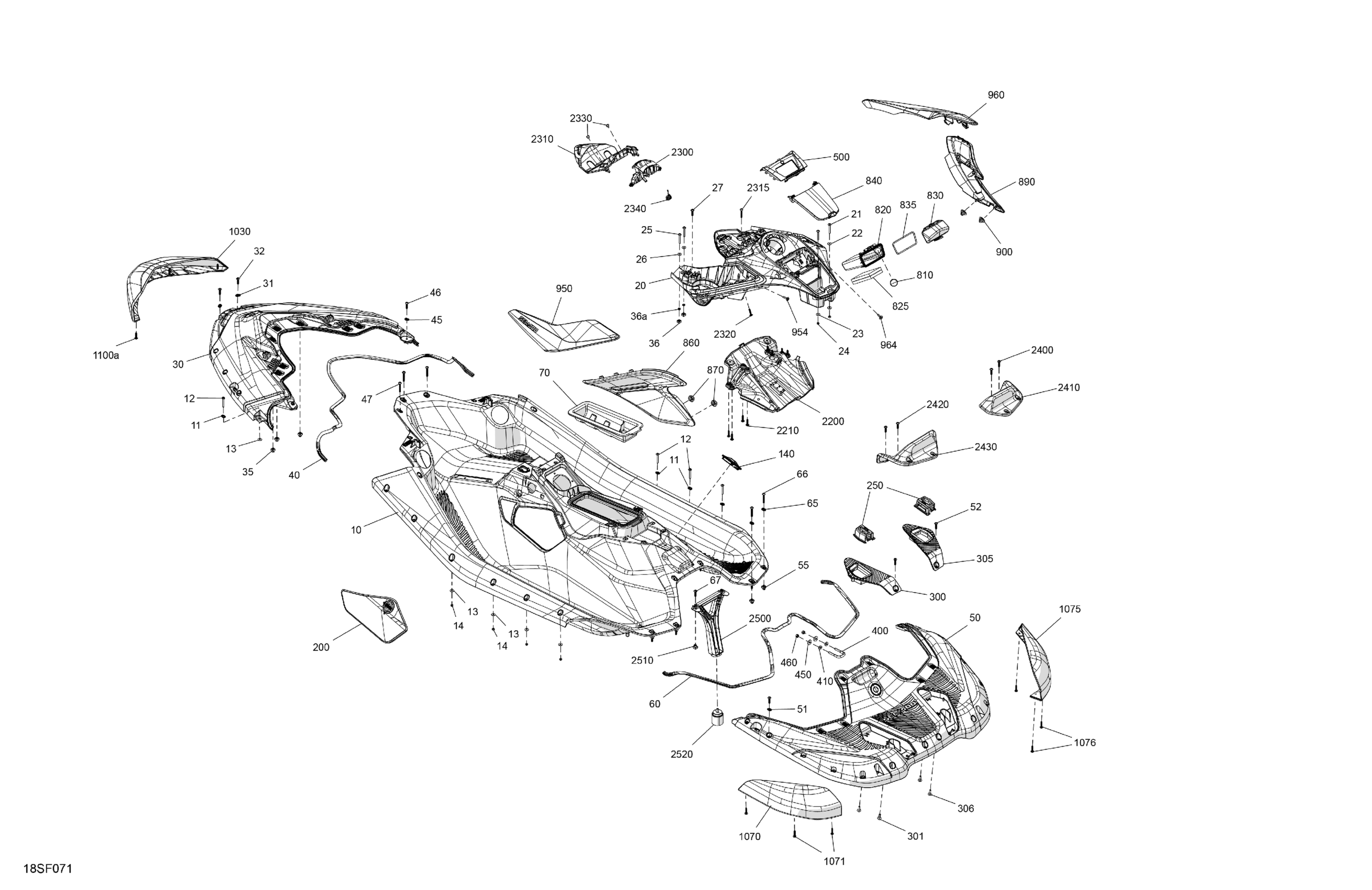

Sea-doo SPARK - 900 HO ACE - TRIXX - 67TF - Gulfstream Blue - 1UP, 2026 Body - System Diagram

#

Description
Price

10

Deep Black, Central Deck

291005936

$960.67

11

Oval Washer

291006387

$1.36

12

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

13

Flat Washer M6, Stainless

234062600

$0.64

14

Elastic Stop Nut M6, Brass

232561200

$3.51

20

Deep Black, Console

291005937

$146.22

21

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

22

Flat Washer M6, Stainless

250200150

$2.87

23

Flat Washer M6, Stainless

234062600

$0.64

24

Elastic Stop Nut M6, Brass

232561200

$3.51

25

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

26

Flat Washer M6, Stainless

250200150

$2.87

27

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

30

Gulf Stream Blue, Front Deck

291006663

$232.06

31

Oval Washer

291006387

$1.36

32

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

35

Insert

291003793

$2.44

36

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

36a

Elastic Stop Nut M6, Brass

232561200

$3.51

40

Gasket

293250608

$39.52

45

Oval Washer

291006387

$1.36

46

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

47

Screw-Plastite Torx Cone M6.81X50

250001283

$3.95

50

Gulf Stream Blue, Rear Deck

291006664

$223.10

51

Oval Washer

291006387

$1.36

52

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

55

Insert

291003793

$2.44

60

Gasket

293250609

$39.52

65

Oval Washer

291006387

$1.36

66

Screw-Plastite Torx Cone M6.81X50

250001283

$3.95

67

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

70

Upper Access Cover Ass'y

291006167

$12.18

140

RH Rear Access Cover Ass'y

291006039

$33.77

200

LH Front Access Cover Ass'y

291005940

$37.67

250

Linq Bases Kit

295100858

$21.42

300

LH LINQ Support

291005979

$40.27

301

Hexagonal Cap Screw M6 X 25

250000978

$3.61

305

RH LINQ Support

291006029

$40.27

306

Hexagonal Cap Screw M6 X 25

250000978

$3.61

400

U-Clamp

292000933

$32.47

410

Flat Washer M8.5 x 18

293050001

$1.29

450

Flat Washer 8 mm, Stainless

234082600

$1.98

460

Hex. Elastic Nut M8 Brass

232581200

$1.29

500

Deep Black, Console Panel

291006007

$66.39

810

USB Plug

269502324

$2.39

820

Storage Box

291006037

$18.82

825

Box Storage Foam

264000159

$10.82

830

Box Cover

291006028

$48.72

835

Gasket

293250605

$14.27

840

Deep Black, Box Cover

291006006

$48.72

860

Orange Crush, LH Knee Pad

291006667

$98.48

870

Oval Washer

705018553

$5.22

890

Orange Crush, RH Knee Pad

291006668

$95.49

900

Oval Washer

705018553

$5.22

950

Orange Crush, LH Front Body Panel

291006665

$44.75

954

Hexagonal Cap Screw M6 X 25

250000978

$3.61

960

Orange Crush, RH Front Body Panel

291006666

$99.22

964

Hexagonal Cap Screw M6 X 25

250000978

$3.61

1030

Front Bumper Kit

291006242

$94.87

1070

LH Rear Bumper

291005944

$28.57

1071

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

1075

RH Rear Bumper

291005945

$28.57

1076

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

1100a

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

2200

Under Console Trim

291005957

$72.12

2210

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

2300

Latch

269502524

$11.00

2310

Deep Black, System Audio Support

269502525

$11.84

2315

Screw-Plastite Torx Cone Hd. M6.81X

250001279

$4.54

2320

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

2330

Rubber Bumper

293830005

$5.33

2340

Torsion Spring

269502534

$22.07

2400

RH Footrest Ass'y

291006034

$66.39

2410

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

2420

LH Footrest Ass'y

291006031

$66.39

2430

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

2500

Rear Support

291006030

$21.42

2510

Insert

291003793

$2.44

2520

Rear Support Mount

291003694

$16.22
