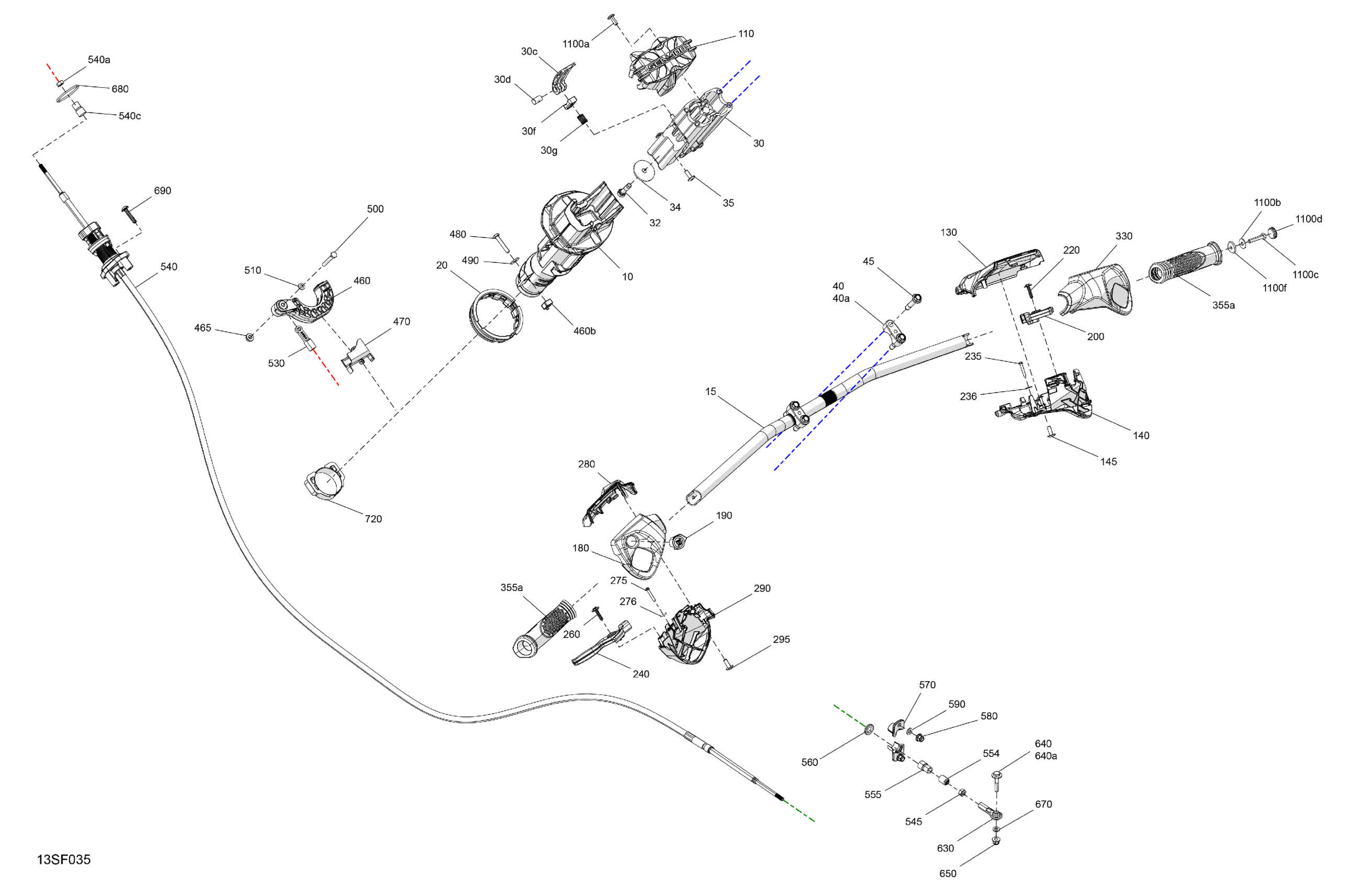

Sea-doo SPARK - 900 HO ACE - TRIXX - 66TA - Bright White - 3UP, 2026 Mechanic - Steering Diagram

#

Description
Price

10

Steering Column

277002263

$214.99

15

Brighht White, Handlebar

277002172

$105.99

20

Wear Ring

277001874

$12.17

30

Handlebar Rise Block Adjust Ass'y | Includes 30 to 30g

277002253

$153.49

30c

Anodized Lock Lever

277002094

$38.99

30d

Lever Pin

506153052

$6.89

30f

Compression Bloc

506153045

$3.29

30g

Spring

506152820

$9.09

32

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.77

34

Flat Washer M8.4 x 40

250200188

$6.03

35

Torx Truss Screw M6 X 16

250000922

$1.90

40

Steering Support | Includes 40 to 40a

506152751

$13.99

40a

Not Available As Spare Parts

XXX

Unavailable

45

Hex. Screw Flange DIN.6921 S.Grip

250000834

$3.91

110

Deep Black, Steering Pad

277002005

$28.99

130

RH Upper Housing

277002040

$109.99

140

RH Lower Housing

277002036

$104.99

145

Torx Truss Screw M6 X 16

250000922

$1.90

180

LH Cover

277002314

$18.99

190

Red Button Switch

277002327

$9.21

200

Hand Lever Accelerator

277002138

$38.99

220

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

235

Hex. Flange Screw K40 X 25

241142560

$2.64

236

Flat Washer 4 mm, Stainless

234042600

$1.15

240

Reverse Handle

277001945

$43.99

260

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

275

Hex. Flange Screw K40 X 25

241142560

$2.64

276

Flat Washer 4 mm, Stainless

234042600

$1.15

280

LH Upper Housing

277002041

$109.99

290

LH Lower Housing

277002035

$104.99

295

Torx Truss Screw M6 X 16

250000922

$1.90

330

RH Cover

277002288

$18.99

355a

Can-Am Red, Handlebar Grip

277002334

$19.99

460

Support Ass'y | Includes 460 to 460b

277002179

$22.49

460b

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

465

Nut Flange Elastic M6

233261200

$0.99

470

Spacer

277001654

$15.99

480

Hex. Screw M6 X 35

207163560

$1.49

490

Flat Washer M6, Stainless

234062600

$0.77

500

Hex. Screw M6 X 40

207064060

$1.69

510

Stainless Flat Washer M6

234061600

$0.33

530

Ball Joint

277001180

$35.99

540

Steering Cable | Includes 540 to 540c

277002449

$259.49

540a

Hex. Nut 1/4"-28

211100056

$0.69

540b

Wiper Rod

277001582

$11.11

540c

End Piece

277001583

$14.49

545

Hex. Nut 1/4"-28

211100056

$0.69

554

Wiper Rod

277001582

$11.11

555

End Piece

277001583

$14.49

560

Rubber Washer

293830063

$1.90

570

Ring Halves

277001856

$12.99

580

Elastic Stop Nut M6, Brass

232561200

$4.23

590

Stainless Flat Washer M6

234061600

$0.33

630

Ball Joint

277000775

$51.99

640

Hex Sems Screw M6X35

250000970

$2.11

640a

Hex Screw SEMS M6X35, SS

250000969

$2.11

650

Elastic Stop Nut M6, Brass

232561200

$4.23

670

Stainless Flat Washer M6

234061600

$0.33

680

O-Ring

293300176

$1.36

690

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

720

Wear Ring

277002318

$15.99

1100a

Torx Truss Screw M6 X 16

250000922

$1.90

1100b

Flat Washer M6, Stainless

234062600

$0.77

1100c

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

1100d

Black, Cap

277000203

$9.39

1100f

Insert Grip Handle

277001863

$8.83
