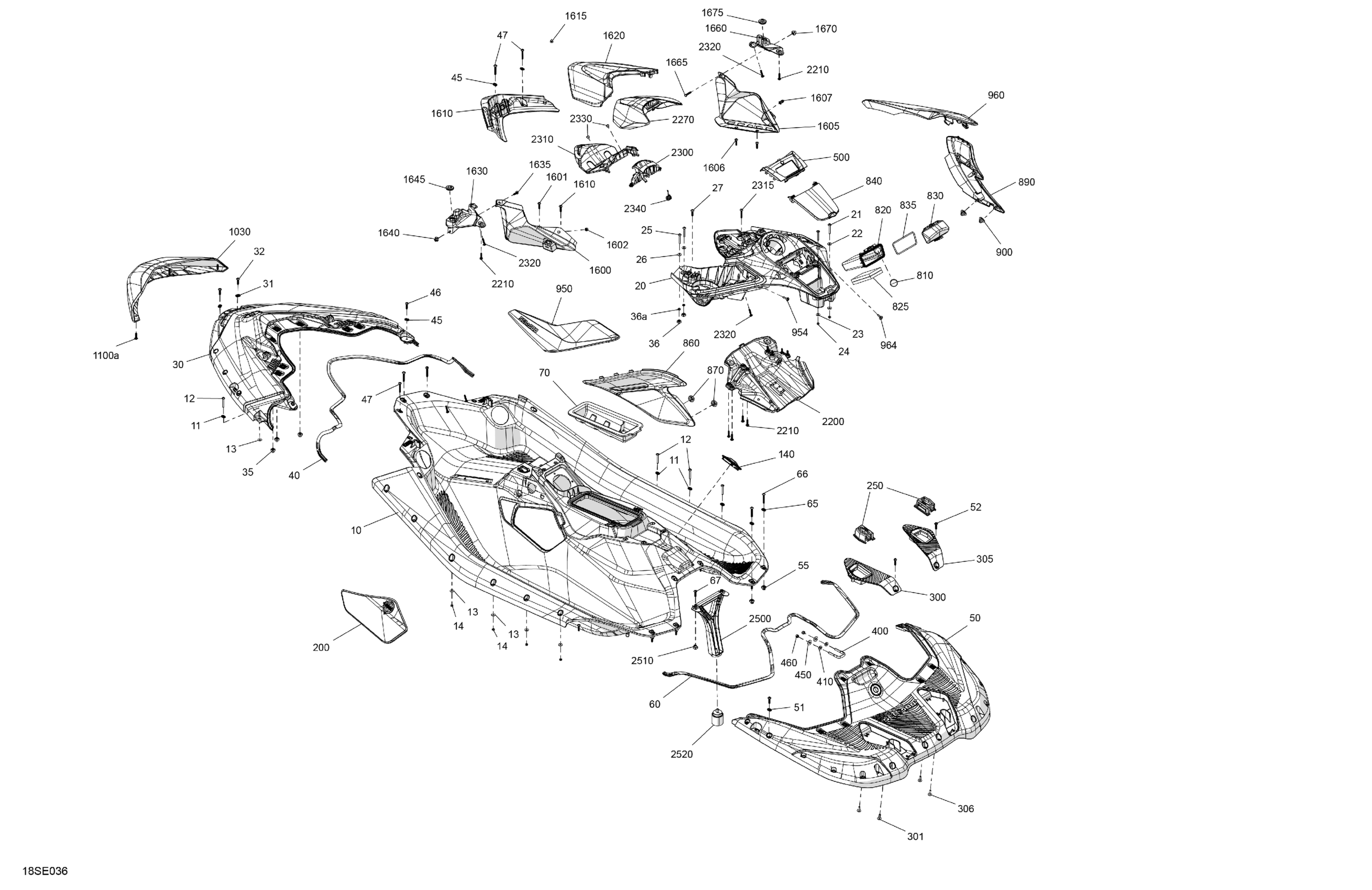

Sea-doo SPARK - 900 HO ACE - CONV - 3UP - 63SK - Blue High Gloss, 2025 Body - System Diagram

Deep Black, Central Deck

291005936

$1.00

Oval Washer

291006387

$1.77

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

Flat Washer M6, Stainless

234062600

$0.77

Elastic Stop Nut M6, Brass

232561200

$4.23

Deep Black, Console

291005937

$189.99

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

Flat Washer M6, Stainless

250200150

$3.49

Flat Washer M6, Stainless

234062600

$0.77

Elastic Stop Nut M6, Brass

232561200

$4.23

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

Flat Washer M6, Stainless

250200150

$3.49

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

Vapor Blue, Front Deck

291006136

$259.99

Oval Washer

291006387

$1.77

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

Insert

291003793

$3.56

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

Elastic Stop Nut M6, Brass

232561200

$4.23

Gasket

293250608

$43.99

Oval Washer

291006387

$1.77

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

Screw-Plastite Torx Cone M6.81X50

250001283

$4.76

Deck Rear Vapor Blue,

291006139

$249.99

Oval Washer

291006387

$1.77

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

Insert

291003793

$3.56

Gasket

293250609

$43.99

Oval Washer

291006387

$1.77

Screw-Plastite Torx Cone M6.81X50

250001283

$4.76

Screw-Plastite Torx Cone M6.81X50

250001283

$4.76

Upper Access Cover Ass'y

291006167

$16.99

RH Rear Access Cover Ass'y

291006039

$43.99

LH Front Access Cover Ass'y

291005940

$48.99

Linq Bases Kit

295100858

$13.30

LH LINQ Support

291005979

$44.99

Hexagonal Cap Screw M6 X 25

250000978

$4.44

RH LINQ Support

291006029

$44.99

Hexagonal Cap Screw M6 X 25

250000978

$4.44

U-Clamp

292000933

$59.49

Flat Washer M8.5 x 18

293050001

$3.07

Flat Washer 8 mm, Stainless

234082600

$2.43

Hex. Elastic Nut M8 Brass

232581200

$2.22

Deep Black, Console Panel

291006007

$73.99

USB Plug

269502324

$3.09

Storage Box

291006037

$24.49

Box Storage Foam

264000159

$13.49

Box Cover

291006028

$62.99

Gasket

293250605

$19.99

Deep Black, Box Cover

291006006

$62.99

Bright White, LH Knee Pad

291005948

$105.99

Oval Washer

705018553

$5.61

Bright White, RH Knee Pad

291005949

$102.99

Oval Washer

705018553

$5.61

Dazzling Blue, LH Body Panel

291006271

$49.99

Hexagonal Cap Screw M6 X 25

250000978

$4.44

Dazzling Blue, RH Body Panel

291006272

$49.99

Hexagonal Cap Screw M6 X 25

250000978

$4.44

Front Bumper Kit

291006242

$116.49

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

LH Seperation Panel

269801277

$104.99

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

Tuflok Plastic Rivet

293150230

$1.47

RH Seperation Panel

269801278

$104.99

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

Tuflok Plastic Rivet

293150230

$1.47

Deflector

269801276

$28.99

Rubber Bumper

293830005

$8.09

Front Box Cover

269801279

$39.99

LH Striker Support

269801280

$4.39

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

Insert

291003793

$3.56

Oblong Grommet

293720138

$2.51

RH Striker Support

269801443

$4.39

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

Insert

291003793

$3.56

Oblong Grommet

293720138

$2.51

Under Console Trim

291005957

$92.99

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

Dazzling Blue, Front Console Trim

291006270

$71.99

Latch

269502524

$12.99

Deep Black, System Audio Support

269502525

$14.82

Screw-Plastite Torx Cone Hd. M6.81X

250001279

$4.76

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

Rubber Bumper

293830005

$8.09

Torsion Spring

269502534

$28.99

Rear Support

291006030

$27.99

Insert

291003793

$3.56

Rear Support Mount

291003694

$20.99
