07- Body - System

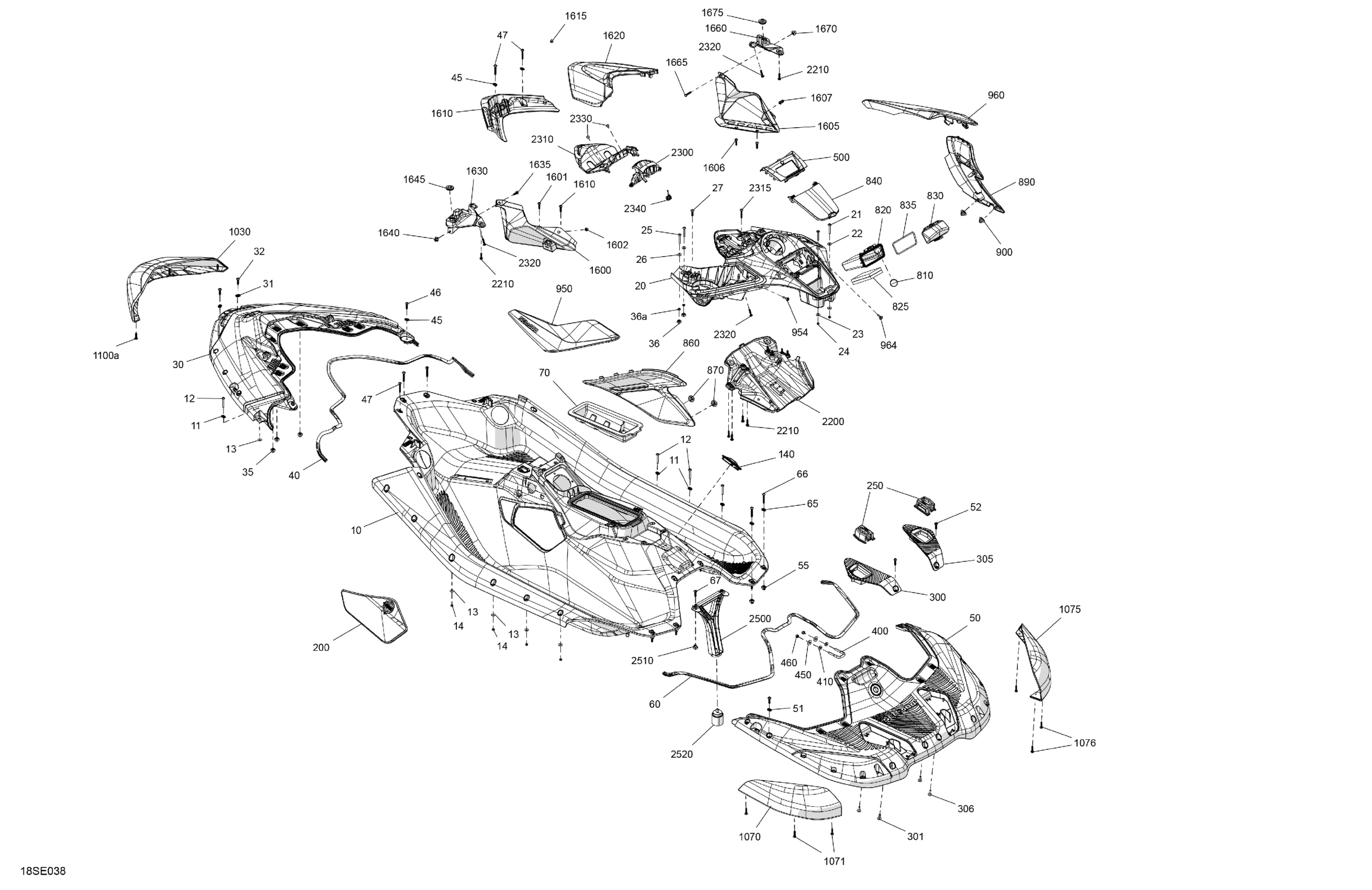

Sea-doo International - SPARK - 900 HO ACE - CONV - 2UP - 64SC - Sunrise Orange - Audio, 2025 07- Body - System Diagram
#
10
Deep Black, Central Deck
291005936
$1.00
11
Oval Washer
291006387
$1.77
12
Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270
250000827
$4.44
13
Flat Washer M6, Stainless
234062600
$0.77
14
Elastic Stop Nut M6, Brass
232561200
$4.23
20
Deep Black, Console
291005937
$189.99
21
Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270
250000827
$4.44
22
Flat Washer M6, Stainless
250200150
$3.49
23
Flat Washer M6, Stainless
234062600
$0.77
24
Elastic Stop Nut M6, Brass
232561200
$4.23
25
Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270
250000827
$4.44
26
Flat Washer M6, Stainless
250200150
$3.49
27
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
30
Sunrise Orange, Front Deck
291006138
$259.99
31
Oval Washer
291006387
$1.77
32
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
35
Insert
291003793
$3.56
36
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
36a
Elastic Stop Nut M6, Brass
232561200
$4.23
40
Gasket
293250608
$43.99
45
Oval Washer
291006387
$1.77
46
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
47
Screw-Plastite Torx Cone M6.81X50
250001283
$4.76
50
Sunrise Orange, Rear Deck
291006141
$249.99
51
Oval Washer
291006387
$1.77
52
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
55
Insert
291003793
$3.56
60
Gasket
293250609
$43.99
65
Oval Washer
291006387
$1.77
66
Screw-Plastite Torx Cone M6.81X50
250001283
$4.76
67
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
70
Upper Access Cover Ass'y
291006167
$16.99
140
RH Rear Access Cover Ass'y
291006039
$43.99
200
LH Front Access Cover Ass'y
291005940
$48.99
250
Linq Bases Kit
295100858
$13.30
300
LH LINQ Support
291005979
$44.99
301
Hexagonal Cap Screw M6 X 25
250000978
$4.44
305
RH LINQ Support
291006029
$44.99
306
Hexagonal Cap Screw M6 X 25
250000978
$4.44
400
U-Clamp
292000933
$59.49
410
Flat Washer M8.5 x 18
293050001
$3.07
450
Flat Washer 8 mm, Stainless
234082600
$2.43
460
Hex. Elastic Nut M8 Brass
232581200
$2.22
500
Deep Black, Console Panel
291006007
$73.99
810
USB Plug
269502324
$3.09
820
Storage Box
291006037
$24.49
825
Box Storage Foam
264000159
$13.49
830
Box Cover
291006028
$62.99
835
Gasket
293250605
$19.99
840
Deep Black, Box Cover
291006006
$62.99
860
Bright White, LH Knee Pad
291005948
$105.99
870
Oval Washer
705018553
$5.61
890
Bright White, RH Knee Pad
291005949
$102.99
900
Oval Washer
705018553
$5.61
950
Can-Am Red, LH Body Panel
291005946
$49.99
954
Hexagonal Cap Screw M6 X 25
250000978
$4.44
960
Can-Am Red, RH Body Panel
291005947
$109.99
964
Hexagonal Cap Screw M6 X 25
250000978
$4.44
1030
Front Bumper Kit
291006242
$116.49
1070
LH Rear Bumper
291005944
$35.99
1071
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
1075
RH Rear Bumper
291005945
$35.99
1076
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
1100a
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
1600
LH Seperation Panel
269801277
$104.99
1601
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
1602
Tuflok Plastic Rivet
293150230
$1.47
1605
RH Seperation Panel
269801278
$104.99
1606
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
1607
Tuflok Plastic Rivet
293150230
$1.47
1610
Deflector
269801276
$28.99
1615
Rubber Bumper
293830005
$8.09
1620
Front Box Cover
269801279
$39.99
1630
LH Striker Support
269801280
$4.39
1635
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
1640
Insert
291003793
$3.56
1645
Oblong Grommet
293720138
$2.51
1660
RH Striker Support
269801443
$4.39
1665
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
1670
Insert
291003793
$3.56
1675
Oblong Grommet
293720138
$2.51
2200
Under Console Trim
291005957
$92.99
2210
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
2300
Latch
269502524
$12.99
2310
Deep Black, System Audio Support
269502525
$14.82
2315
Screw-Plastite Torx Cone Hd. M6.81X
250001279
$4.76
2320
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
2330
Rubber Bumper
293830005
$8.09
2340
Torsion Spring
269502534
$28.99
2500
Rear Support
291006030
$27.99
2510
Insert
291003793
$3.56
2520
Rear Support Mount
291003694
$20.99
