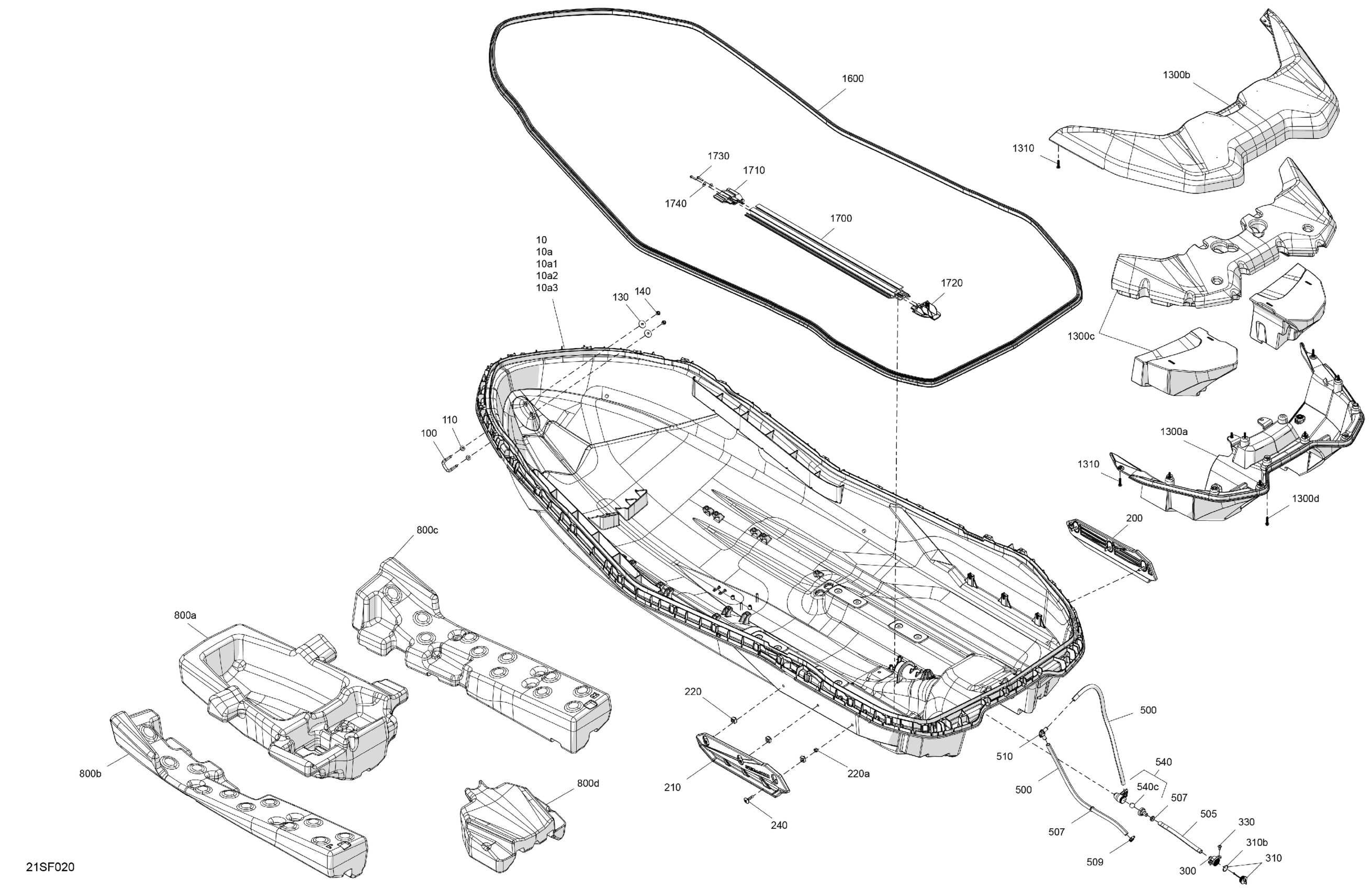

Sea-doo SPARK - 900 HO ACE - BASE - 62TA - Sunrise Orange - 3UP, 2026 Body - Hull Diagram

Hull | Includes 10 to 10a

292002590

$1.00

Hull Insert Kit | Includes 10a to 10a3

295501139

$43.99

Not Available As Spare Parts

XXX

Unavailable

Torx Screw M6 X 20

250000711

$1.90

Drill Bite N Size

529036505

Unavailable

U-Clamp

292000933

$59.49

Flat Washer M8.5 x 18

293050001

$3.07

Flat Washer 8 mm, Stainless

250200175

$3.06

Hex. Elastic Nut M8 Brass

232581200

$2.22

RH Sponson

292002009

$82.99

LH Sponson

292002008

$82.99

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

Hex. Elastic Nut M8 Brass

232581200

$2.22

Torx-Head Screw M8 X 35

250001276

$5.92

Neck Drain

292001552

$14.49

Plug Drain Ass'y | Includes 310 to 310b

292002024

$13.49

O-Ring

293300067

$1.04

Torx Screw M6 X 14

250000384

$7.51

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$7.20

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$7.20

Rubber Washer

293830063

$1.90

Clamp Gear

293650285

$3.27

Fitting Elbow 90°

293710152

$18.49

Bailer Pick-up Ass'y | Includes 540 to 540c

292001636

$25.99

Floating Ball

293830080

$7.19

Front Hull Float

292002593

$92.99

LH Hull Float

292002594

$92.99

RH Hull Float

292002595

$92.99

Rear Hull Float

292002596

$27.99

Hull Extension

292002598

$144.99

Deck Extension

292002599

$204.99

Rear Hull Float Kit

292002600

$92.99

Hex. Flange Screw M6.81 X 30

243163060

$2.32

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

Seal Joint

293250338

$64.99

Hull Reinforcement

292001549

$92.99

Front End Piece Reinforcement

292001550

$12.99

Rear End Piece Reinforcement

292001551

$12.99

Hex. Flange Screw K50 X 25

250000680

$1.89

Flat Washer 5 mm, Stainless

234052600

$0.77
