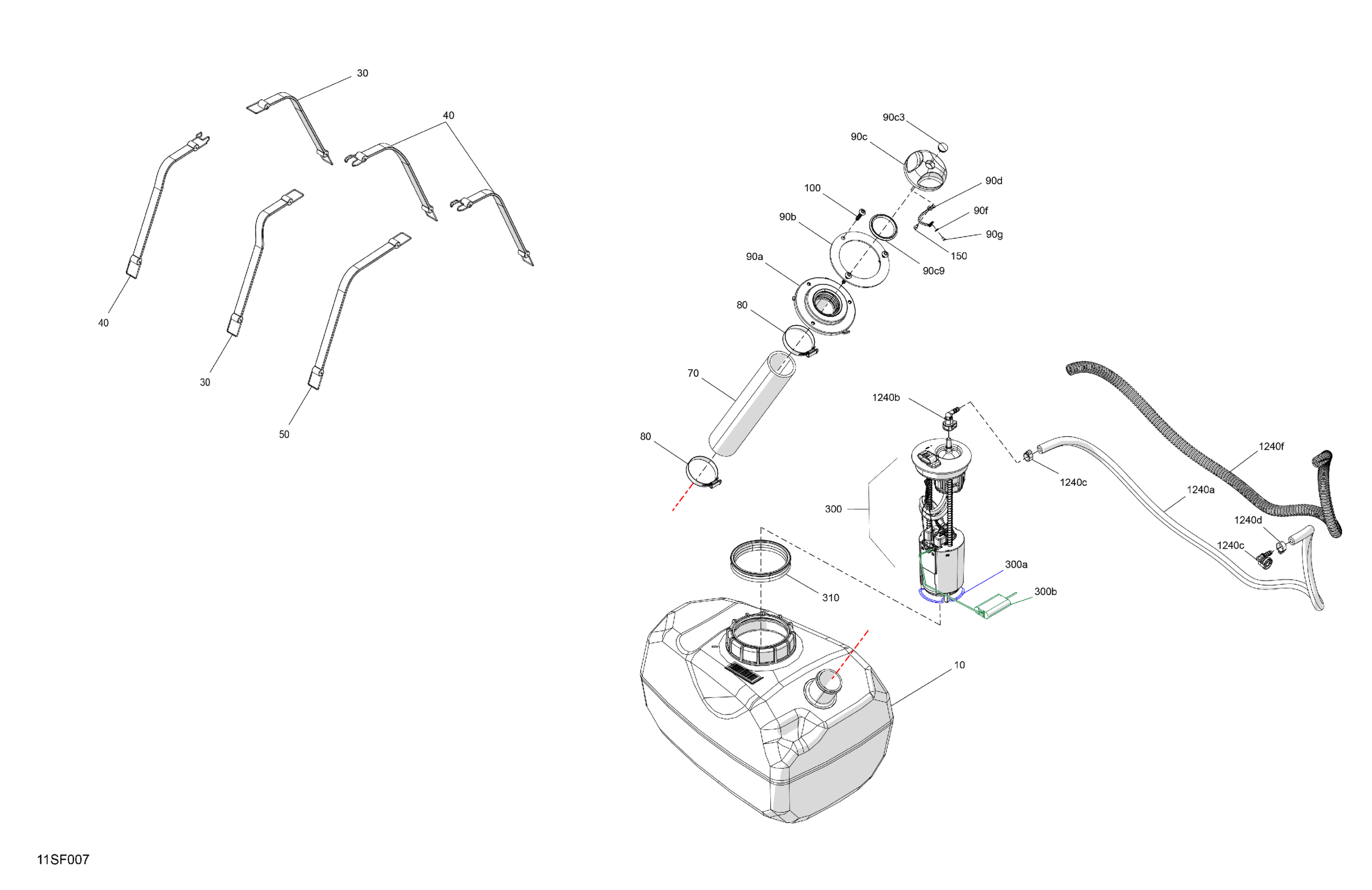

Sea-doo SPARK - 900 ACE - BASE - 61TA - Sunrise Orange - 2UP, 2026 Engine - Fuel Diagram

Description

Price

Fuel Tank

275500982

$271.02

Fuel Tank Strap

293850095

$14.27

Fuel Tank Strap

293850094

$17.52

Fuel Tank Strap

293850093

$16.87

Filler Neck Hose

275500935

$74.60

Norma Clamp

293650081

$9.87

90a

Filler Neck

275500857

$12.88

90b

Gasket

293250298

$14.90

90c

Fuel Cap Ass'y | Includes 90b to 90b9

275501094

$48.07

90c3

Black, Snap Cap

293000034

$7.48

90c9

Gasket

293250417

$3.17

90d

Fuel Cap Chain

275500974

$14.27

90f

Flat Washer M3, Stainless

234032600

$0.52

90g

Pop Rivet 1/8"

390407900

$1.17

100

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

150

Screw K40 X 10

241140060

$1.25

300

Pump Fuel Ass'y | Includes 300 to 300b

275500996

$371.77

300a

Fuel Filter

270600113

$27.27

300b

Sensor Lever

275500780

$176.12

310

Pump Gasket

293250514

$15.57

1240a

Hose I.D. 7.9Mm 3000Mm Long

219704359

$305.94

1240b

Quick Disconnect

275500921

$12.61

1240c

Crimp Clamp

293650053

$2.42

1240d

Elbow Fitting 90°

293710105

$10.58

1240f

Tubing 16 Mm 1000Mm Long

219704408

$6.23
