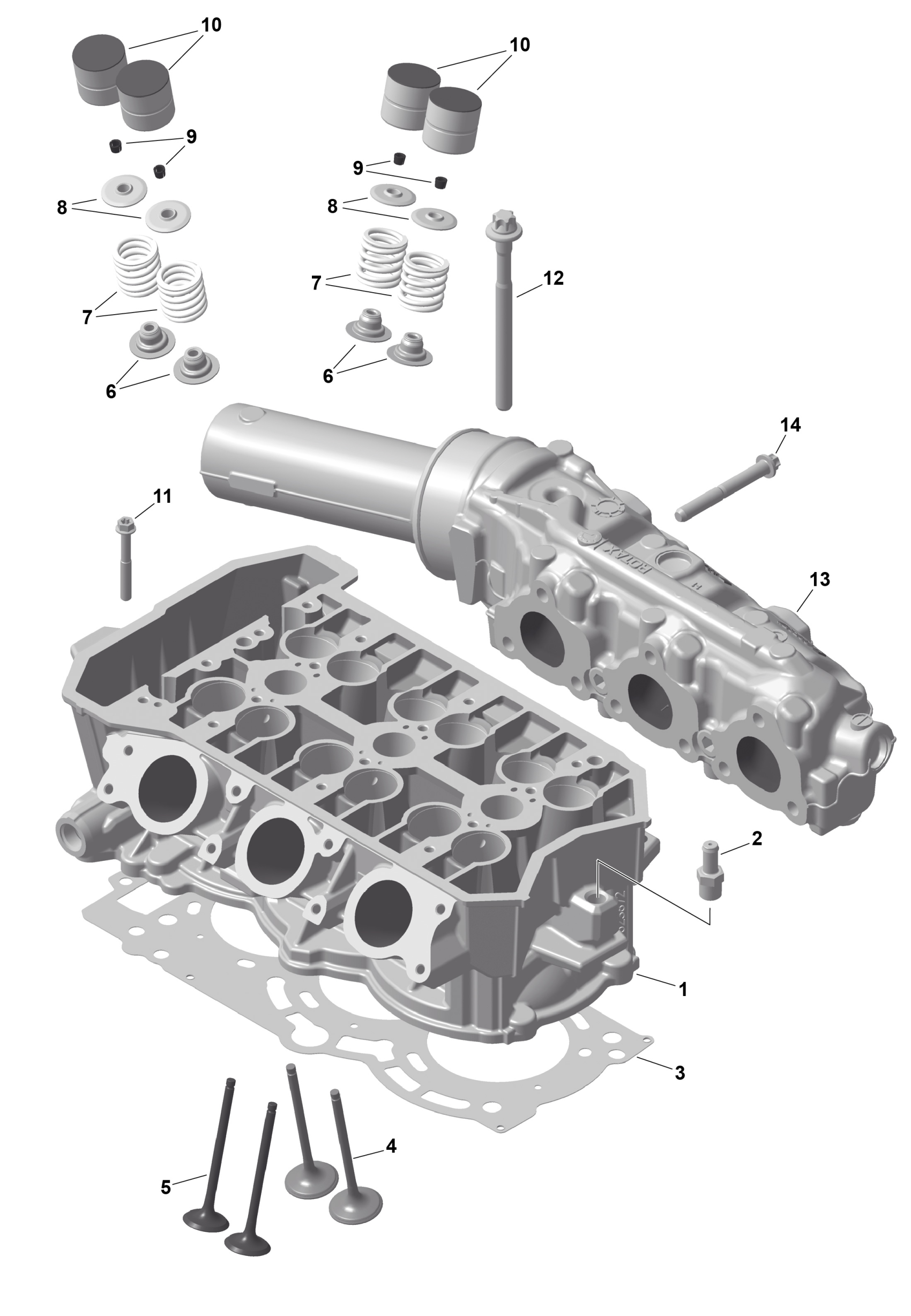

Sea-doo SPARK - 900 ACE - BASE - 61TA - Sunrise Orange - 2UP, 2026 ROTAX - Cylinder Head Diagram

#

Description
Price

1

Cylinder Head Ass'y

420213265

$830.49

2

Hose Nipple

420441420

$14.22

3

Cylinder Head Gasket

420431813

$45.49

4

Intake Valve 29MM

420855131

$22.49

5

Exhaust Valve 25 MM This part replaces 420855148.

420855146

$36.99

6

Valve Stem Seal

420431671

$5.39

7

Valve Spring

420939540

$7.51

8

Valve Spring Retainer

420855150

$4.44

9

Cotter Valve

420254630

$1.01

10

Valve Lifter Bucket

420855165

$46.49

11

Torx Flange Screw M6 X 45

420440324

$0.98

12

Torx Flange Screw M9 X 113

420940945

$13.70

13

Exhaust Manifold

420673511

$439.99

14

Torx Flange Screw M8 x 65

420640333

$6.50
