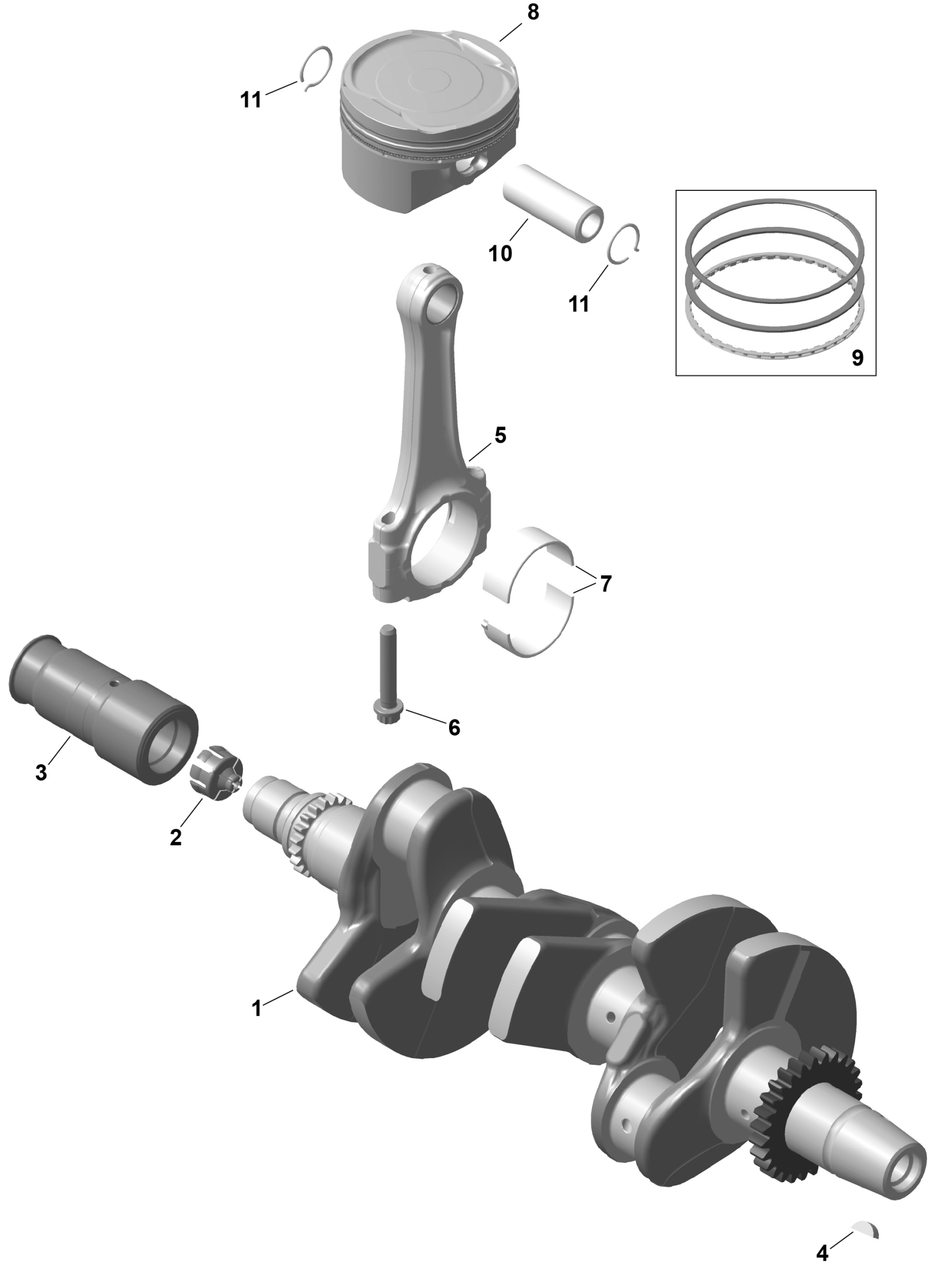

Sea-doo SPARK - 900 ACE - BASE - 61TA - Sunrise Orange - 2UP, 2026 ROTAX - Crankshaft and Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes no. 1-4

420819333

Unavailable

2

Stop Sleeve

420660283

$2.57

3

Output Sleeve

420947574

$248.92

4

Woodruff Key

420246571

$3.61

5

Connecting Rod Ass'y

420917703

$218.37

6

Connecting rod Screw M7 X 1

420641794

$12.97

7

Plain Bearing

420933191

$9.54

8

Piston Ass'y, 73.958 Mm | Includes no. 8-9

420892826

$194.00

9

Piston Ring Set

420892832

$58.18

10

Piston Pin

420916510

$21.42

11

Piston Circlip

420845810

$4.33
