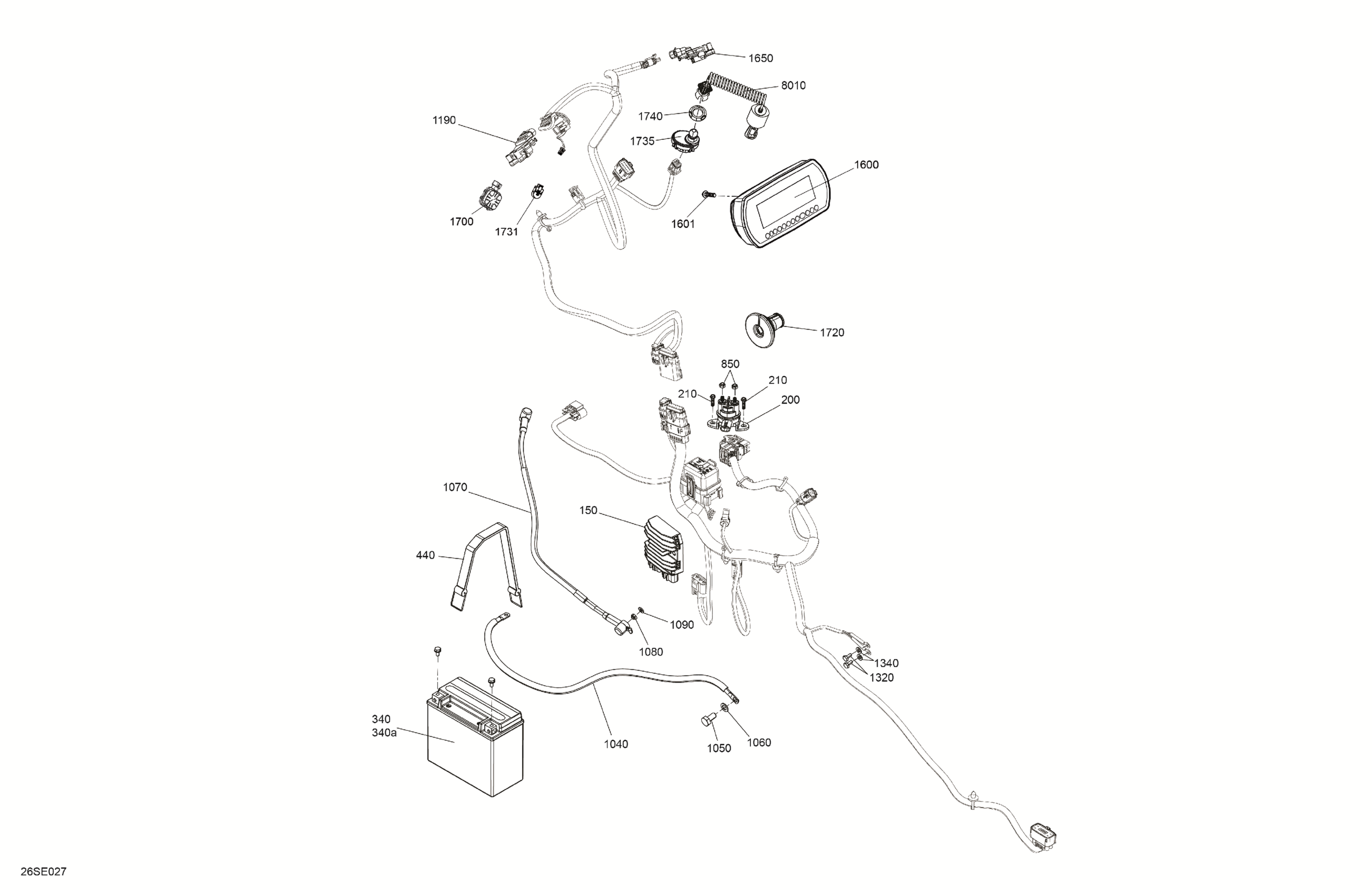

Sea-doo International - SPARK - 900 ACE - BASE - 2UP - 61SB - Sunrise Orange, 2025 08- Electric - System Diagram

Description

Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

200

Starter Relay

278003012

$42.49

210

Hex. Flange PT Screw K50 X 20

241152040

$2.11

340

Battery 12 Amperes | Includes 50 to 50a

219800518

Unavailable

340a

Battery Bolt Kit

219800541

$7.62

440

Fuel Tank Strap

293850093

$21.99

850

Elastic Stop Nut M6, Brass

232561200

$4.23

1040

Ground Cable

278003271

$39.99

1050

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.02

1060

Flat Washer 10 mm, Stainless

234000600

$1.46

1070

Starter Cable

278003268

$62.99

1080

Elastic Stop Nut M6, Brass

232561200

$4.23

1090

Stainless Flat Washer M6

234061600

$0.33

1190

LH Throttle Sensor

278002284

$119.99

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1340

Stainless Flat Washer M6

234061600

$0.33

1600

Multifunction Mono Compact Gauge

278003430

$599.99

1601

Hex. Flange PT Screw K50 X 20

241152040

$2.11

1650

Throttle Position Sensor

278002283

$119.99

1700

Switch

278004307

$61.99

1720

Cable Grommet

293720092

$13.49

1731

Start/Stop Switch This part replaces 296000440.

296000440

$46.49

1735

Terminal DESS One Wire

515179305

$74.99

1740

Specialized Nut

278004274

$3.28

8010

Safety Lanyard Ass'y, NOT RFID

278003410

$72.99
