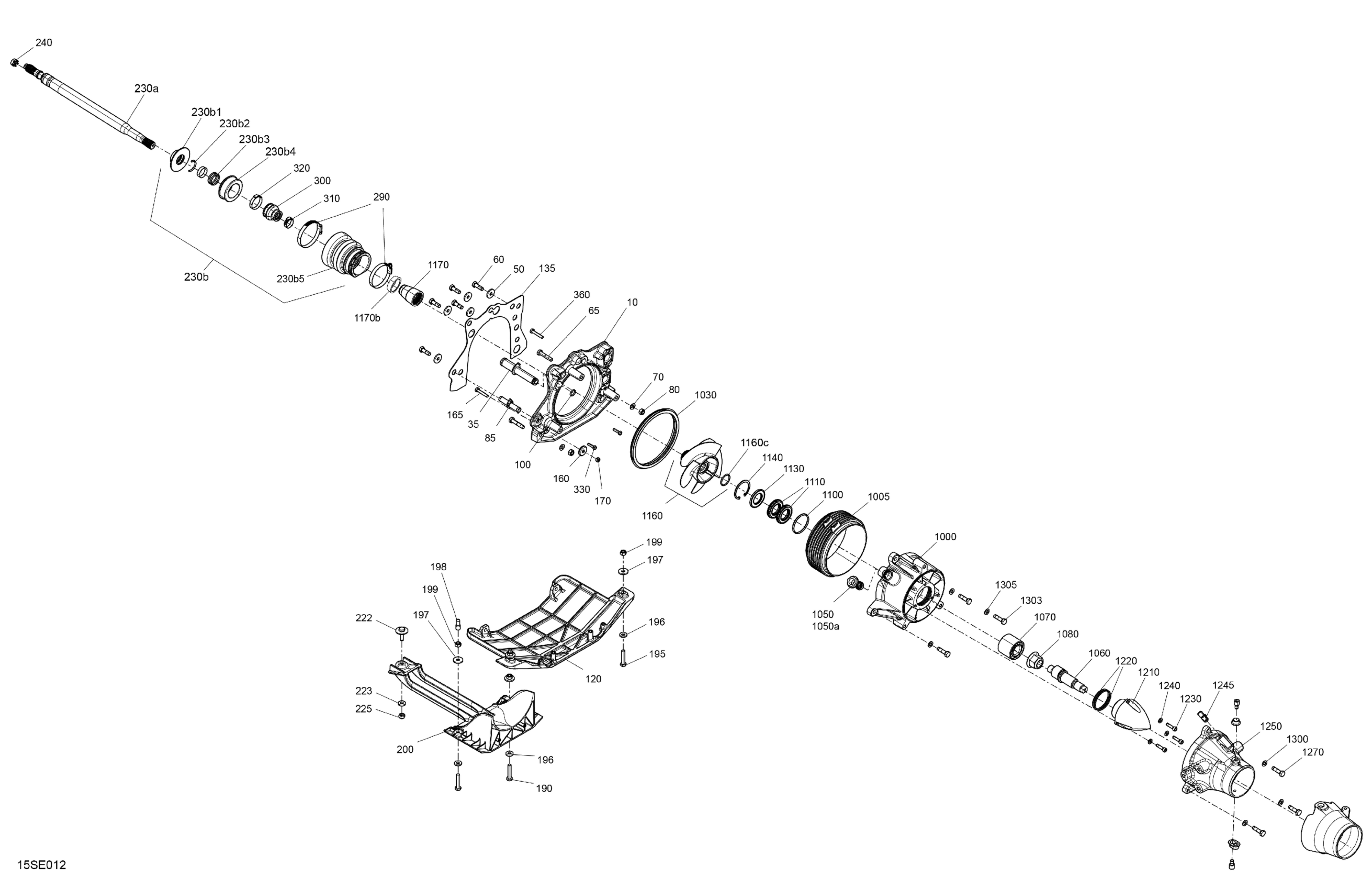

Sea-doo SPARK - 900 ACE - BASE - 2UP - 61SC - Sunrise Orange, 2025 Drive - Propulsion Diagram

#

Description
Price

10

Anodized Pump Support

271001956

$52.99

35

Through Hull Fitting

271002377

$14.49

50

Flat Washer

279000336

$11.57

60

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

65

Hex. Screw M8 X 40, Scotch Grip

250000230

$2.53

70

Stainless, Flat Washer 8 mm

234081600

$0.55

80

Hex. Elastic Nut M8 Brass

232581200

$2.22

85

Through Hull Fitting

271002378

$14.49

100

O-Ring

293300006

$4.44

120

Riding Plate

271001840

$147.99

135

Gasket

271001958

$23.99

160

Anode Zinc

271001920

$15.99

165

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.89

170

Elastic Stop Nut M6, Brass

232561200

$4.23

190

Hex. Screw M8 X 40

207184060

$2.22

195

Hex. Screw M8 X 40

207184060

$2.22

196

Flat Washer M8.5 x 18

293050001

$3.07

197

Flat Washer

279000336

$11.57

198

Cap Plug

293000105

$4.39

199

Hex. Elastic Nut M8 Brass

232581200

$2.22

200

Pump Grate

271002011

$54.99

222

Hex Sems Screw M8 X 30

250000967

$2.85

223

Flat Washer M8.5 x 18

293050001

$3.07

225

Hex. Elastic Nut M8 Brass

232581200

$2.22

230a

Propeller Shaft

271002205

$370.49

230b

Carbon Ring Kit | Includes 230b to 230b5

295501209

$93.99

230b1

Rotary Ring

271002206

Unavailable

230b2

C-Clip

271001575

$6.11

230b3

O-Ring

293300219

$0.93

230b4

Carbon Ring

271002109

Unavailable

230b5

Bellow Ass'y

271002168

$21.99

240

Drive Shaft Plug

271002113

$11.58

290

Tridon Clamp

293650179

$11.49

300

Protector Sleeve

271002126

$18.49

310

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

320

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

330

Hex. Screw 10-14 X 7/8”

211000023

$3.59

360

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.89

1000

Impeller Housing

267000856

$279.99

1005

Wear Ring

267000925

$81.49

1030

Neoprene Seal

293200134

$17.49

1050

Plug | Includes 370z to 370z1

267000282

$19.49

1050a

Plug | Includes 370z to 370z1

267000282

$19.49

1060

Impeller Shaft

267000581

$116.49

1070

Angle Bearing

271002183

$71.99

1080

Elastic Flange Nut M20

250100104

$12.66

1100

O-Ring

293300090

$7.20

1110

Seal

271002071

$33.99

1130

Oil Seal

293200089

$19.99

1140

Circlip

293370038

$8.79

1160

Impeller Ass'y | Includes 1160 to 1160c

267001070

$391.99

1160c

O-Ring

293300044

$1.05

1170

Boot Impeller | Includes 1170 to 1170b

267000829

$22.49

1170b

Boot Impeller | Includes 1170 to 1170b

267000829

$22.49

1210

Impeller Cover

267000769

$20.99

1220

O-Ring

293300096

$1.01

1230

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

1240

Stainless Flat Washer M6

234061600

$0.33

1245

Siphon Tube

267000782

$6.29

1250

Venturi

267000909

$194.99

1270

Socket Head Screw M8 X 30, Scotch Grip

205583060

$3.79

1300

Flat Washer M8, Stainless

234080600

$1.48

1303

Socket Head Screw M8 X 30, Scotch Grip

205583060

$3.79

1305

Flat Washer M8, Stainless

234080600

$1.48
