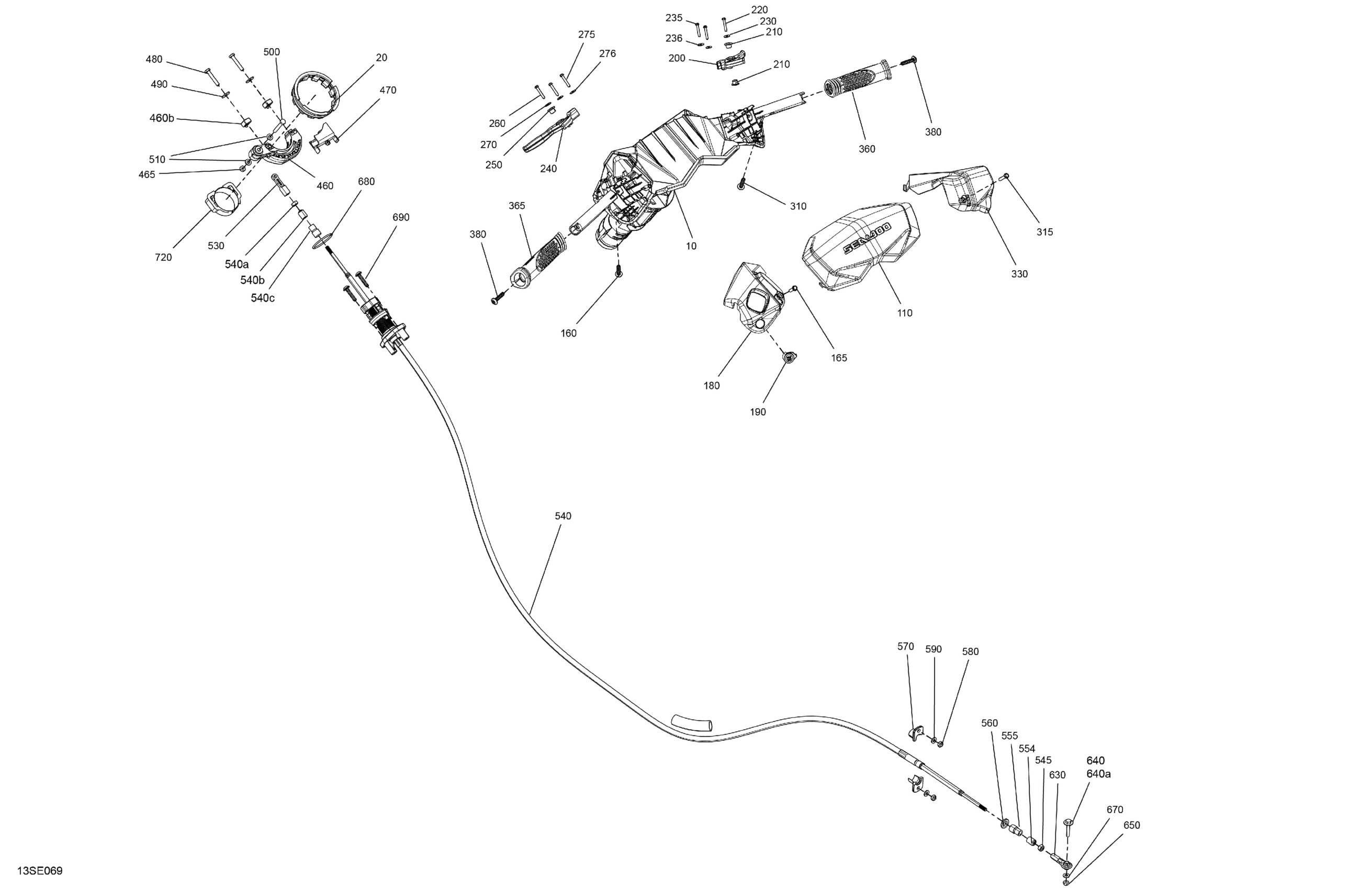

Sea-doo SPARK - 900 ACE - BASE - 2UP - 61SC - Sunrise Orange, 2025 Mechanic - Steering Diagram

#

Description
Price

10

Steering Column

277002291

$206.69

20

Wear Ring

277001874

$11.18

110

Bright White, Handlebar Trim

277002258

$18.63

160

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

165

Hex. Screw 10-14 X 7/8”

211000023

$3.34

180

LH Cover

277002260

$17.13

190

Red Button Switch

277002327

$8.57

200

Hand Lever Accelerator

277002138

$35.04

210

Bushing

293900091

$3.84

220

Hex. Flange Screw K40 X 25

241142560

$2.49

230

Flat Washer 4 mm, Stainless

234042600

$1.06

235

Hex. Flange Screw K40 X 25

241142560

$2.49

236

Flat Washer 4 mm, Stainless

234042600

$1.06

240

Reverse Handle

277001945

$39.52

250

Bushing

293900091

$3.84

260

Hex. Flange Screw K40 X 25

241142560

$2.49

270

Flat Washer 4 mm, Stainless

234042600

$1.06

275

Hex. Flange Screw K40 X 25

241142560

$2.49

276

Flat Washer 4 mm, Stainless

234042600

$1.06

310

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

315

Hex. Screw 10-14 X 7/8”

211000023

$3.34

330

RH Cover

277002261

$17.13

360

Handlebar Grip

277002286

$17.13

365

Handlebar Grip

277002286

$17.13

380

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

460

Support Ass'y | Includes 460 to 460b

277002179

$20.12

460b

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

465

Nut Flange Elastic M6

233261200

$0.94

470

Spacer

277001654

$13.09

480

Hex. Screw M6 X 35

207163560

$1.34

490

Flat Washer M6, Stainless

234062600

$0.73

500

Hex. Screw M6 X 40

207064060

$1.61

510

Stainless Flat Washer M6

234061600

$0.28

530

Ball Joint

277001180

$32.06

540

Steering Cable | Includes 540 to 540c

277002065

$241.76

540a

Hex. Nut 1/4"-28

211100056

$0.64

540b

Wiper Rod

277001582

$10.13

540c

End Piece

277001583

$12.79

545

Hex. Nut 1/4"-28

211100056

$0.64

554

Wiper Rod

277001582

$10.13

555

End Piece

277001583

$12.79

560

Rubber Washer

293830063

$1.73

570

Ring Halves

277001856

$11.31

580

Elastic Stop Nut M6, Brass

232561200

$4.03

590

Stainless Flat Washer M6

234061600

$0.28

630

Ball Joint

277000775

$46.24

640

Hex Sems Screw M6X35

250000970

$2.00

640a

Hex Screw SEMS M6X35, SS

250000969

$2.00

650

Elastic Stop Nut M6, Brass

232561200

$4.03

670

Stainless Flat Washer M6

234061600

$0.28

680

O-Ring

293300176

$1.07

690

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

720

Wear Ring

277002318

$14.27
