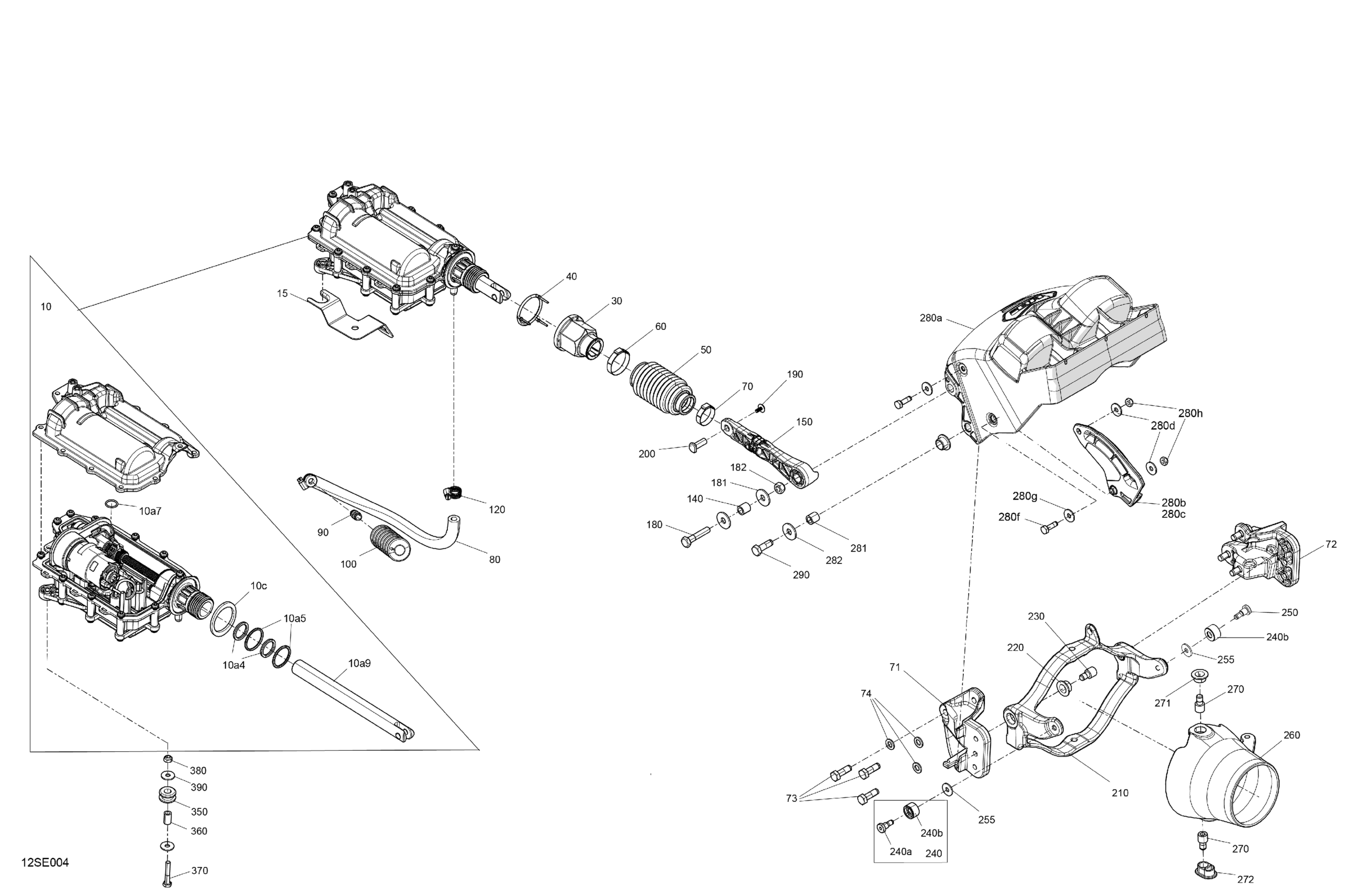

Sea-doo SPARK - 900 ACE - BASE - 2UP - 61SC - Sunrise Orange, 2025 Mechanic - Reverse Diagram

#

Description
Price

10

Actuator Reverse Ass'y | Includes 10 to 10c

278004394

$643.47

10a4

O-Ring

279000108

$4.89

10a5

O-Ring

293300107

$0.83

10a7

O-Ring

293300187

$3.20

10a9

Output Shaft

278003027

$44.17

10c

Gasket

268000208

$12.52

15

Actuator Support

268000210

$17.66

30

IBR Nut

268000308

$8.57

40

Rubber Gasket

277001977

$1.76

50

Boot

268000186

$3.59

60

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

70

Crimp Clamp

293650099

$4.60

71

LH Reverse Support

268000163

$21.42

72

RH Reverse Support

268000166

$24.67

73

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

74

Flat Washer M8, Stainless

234080600

$1.25

80

Was 509000407 Hose 8 mm

219704420

$40.27

90

Fitting-Straig

293710157

$5.36

100

Inner Boot This part replaces 268000345.

268000211

$8.14

120

Clamp Gear

293650285

$2.68

140

Spacer

271001039

$11.78

150

Reverse Rod

268000187

$22.72

180

Hex. Screw M8 X 45

207084560

$2.77

181

Flat Washer 8 mm, Stainless

234082600

$1.98

182

Hex. Elastic Nut M8 Brass

232581200

$1.29

190

Hexalob Screw M4 X 10

250000565

$1.74

200

Shoulder Pin

268000309

$14.92

210

Trimming Ring

268000179

$74.72

220

Venturi Bushing

293900007

$3.71

230

Socket Head Screw M8 X 13

268000141

$6.84

240

Roller Bushing Kit | Includes 240 to 240b

295501160

$3.30

240a

Screw-Socket Shoulder M8X8

250000775

$6.57

240b

Roller Bushing Kit | Includes 240 to 240b

295501160

$3.30

250

Screw-Socket Shoulder M8X8

250000775

$6.57

255

Flat Washer M6, Stainless

234062600

$0.64

260

Nozzle

267000705

$60.42

270

Socket Head Screw M8 X 13

268000141

$6.84

271

Venturi Bushing

293900007

$3.71

272

Plastic Bushing

293900010

$7.15

280a

Reverse Gate

268000325

$148.17

280b

LH Ramp Trim

266000031

$3.51

280c

RH Ramp Trim

266000032

$3.51

280d

Flat Washer M6, Stainless

234062600

$0.64

280f

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

280g

Flat Washer M6, Stainless

234062600

$0.64

280h

Elastic Stop Nut M6, Brass

232561200

$3.51

281

Spacer

271001039

$11.78

282

Flat Washer 8 mm, Stainless

234082600

$1.98

290

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

350

Grommet

293720104

$4.15

360

Spacer

271001020

$9.23

370

Hex. Screw M6 X 35

207063560

$1.85

380

Elastic Stop Nut M6, Brass

232561200

$3.51

390

Flat Washer M6, Stainless

234062600

$0.64
