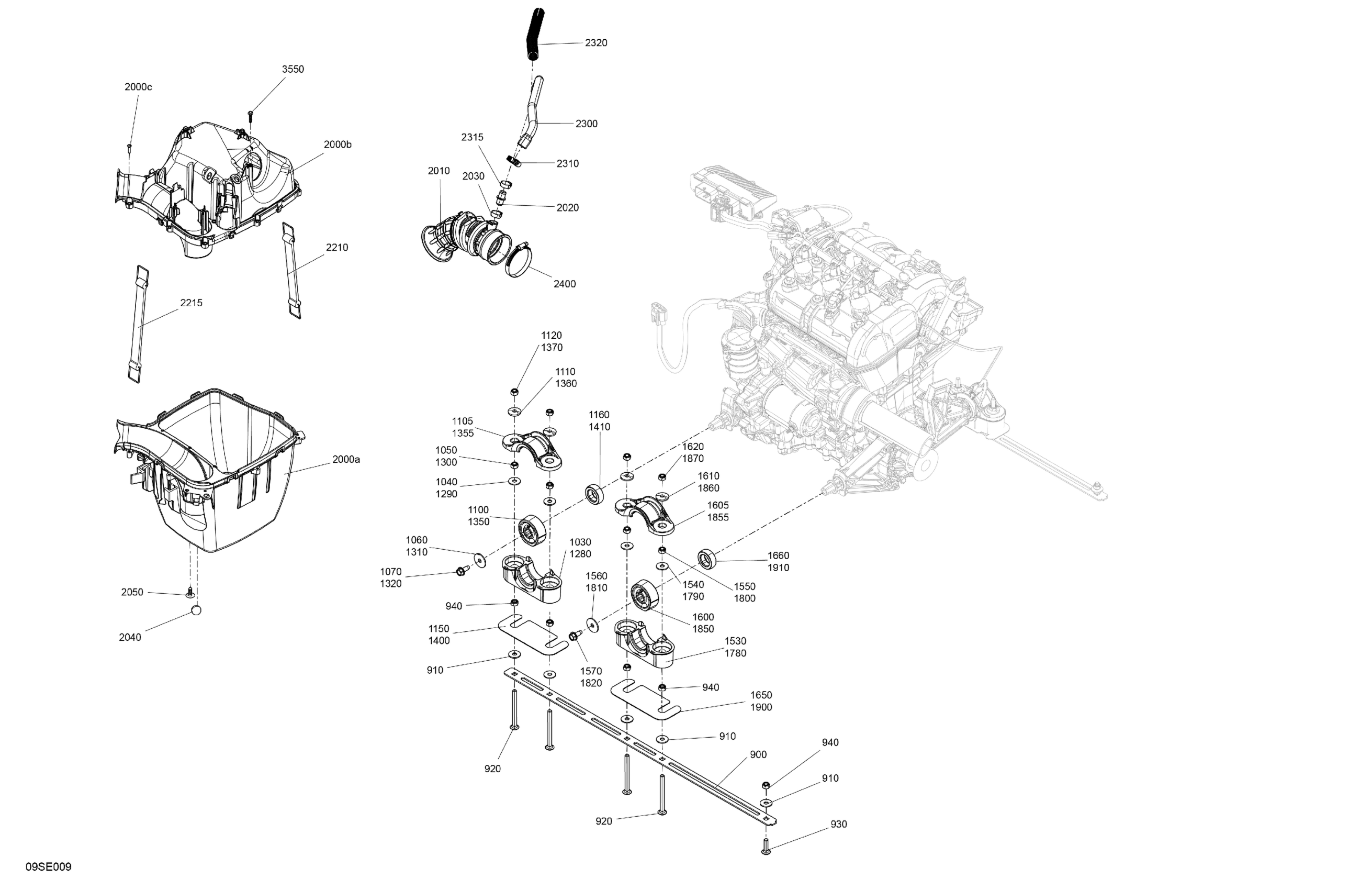

Sea-doo SPARK - 900 ACE - BASE - 2UP - 61SC - Sunrise Orange, 2025 Engine - System Diagram

#

Description
Price

900

Retaining Plate

270000862

$19.37

910

Flat Washer 8 mm, Stainless

234082600

$2.27

920

Carriage Bolt M8 X 90

207789060

$5.12

930

Carriage Bolt M8 X 30

207783060

$3.73

940

Hex. Elastic Nut M8 Brass

232581200

$1.48

1030

Mount Base

270000978

$19.37

1040

Flat Washer 8 mm, Stainless

234082600

$2.27

1050

Hex. Elastic Nut M8 Brass

232581200

$1.48

1060

Flat Washer 8 mm

250200130

$3.00

1070

Forming Hex Screw M8 X 20

250000645

$6.36

1100

Rubber Mount

270001097

$20.12

1105

Mount Clamp

270000859

$19.37

1110

Conical Washer

250200137

$4.57

1120

Hex. Elastic Nut M8 Brass

232581200

$1.48

1150

Shim 1.3 mm

270000865

$8.48

1160

Rubber Stopper

270000863

$7.78

1280

Mount Base

270000978

$19.37

1290

Flat Washer 8 mm, Stainless

234082600

$2.27

1300

Hex. Elastic Nut M8 Brass

232581200

$1.48

1310

Flat Washer 8 mm

250200130

$3.00

1320

Forming Hex Screw M8 X 20

250000645

$6.36

1350

Rubber Mount

270001097

$20.12

1355

Mount Clamp

270000859

$19.37

1360

Conical Washer

250200137

$4.57

1370

Hex. Elastic Nut M8 Brass

232581200

$1.48

1400

Shim 1.3 mm

270000865

$8.48

1410

Rubber Stopper

270000863

$7.78

1530

Mount Base

270000978

$19.37

1540

Flat Washer 8 mm, Stainless

234082600

$2.27

1550

Hex. Elastic Nut M8 Brass

232581200

$1.48

1560

Flat Washer 8 mm

250200130

$3.00

1570

Forming Hex Screw M8 X 20

250000645

$6.36

1600

Rubber Mount

270001097

$20.12

1605

Mount Clamp

270000859

$19.37

1610

Conical Washer

250200137

$4.57

1620

Hex. Elastic Nut M8 Brass

232581200

$1.48

1650

Shim 1.3 mm

270000865

$8.48

1660

Rubber Stopper

270000863

$7.78

1780

Mount Base

270000978

$19.37

1790

Flat Washer 8 mm, Stainless

234082600

$2.27

1800

Hex. Elastic Nut M8 Brass

232581200

$1.48

1810

Flat Washer 8 mm

250200130

$3.00

1820

Forming Hex Screw M8 X 20

250000645

$6.36

1850

Rubber Mount

270001097

$20.12

1855

Mount Clamp

270000859

$19.37

1860

Conical Washer

250200137

$4.57

1870

Hex. Elastic Nut M8 Brass

232581200

$1.48

1900

Shim 1.3 mm

270000865

$8.48

1910

Rubber Stopper

270000863

$7.78

2000a

Airbox Base

273000385

$66.39

2000b

Airbox Cover

273000386

$67.88

2000c

Flange Torx Screw K40 X 16

250000287

$2.00

2010

Connector Hose

273000318

$52.21

2020

Straight Pipe Fitting

270001167

$10.30

2030

Oetiker Clamp

293650011

$2.82

2040

Floating Ball

293830080

$6.39

2050

Black, Dart

293730011

$0.91

2210

Retaining Strap

275501161

$16.39

2215

Holding Strap

293850112

$16.39

2300

Formed Hose

270000947

$41.76

2310

Clamp Gear

293650285

$3.07

2315

Oetiker Clamp

293650011

$2.82

2320

Tubing 16 Mm 1000Mm Long

219704408

$7.15

2400

Tridon Clamp

293650179

$10.12

3550

Hex. Flange PT Screw K50 X 20

241152040

$2.00
