02- Engine - Fuel

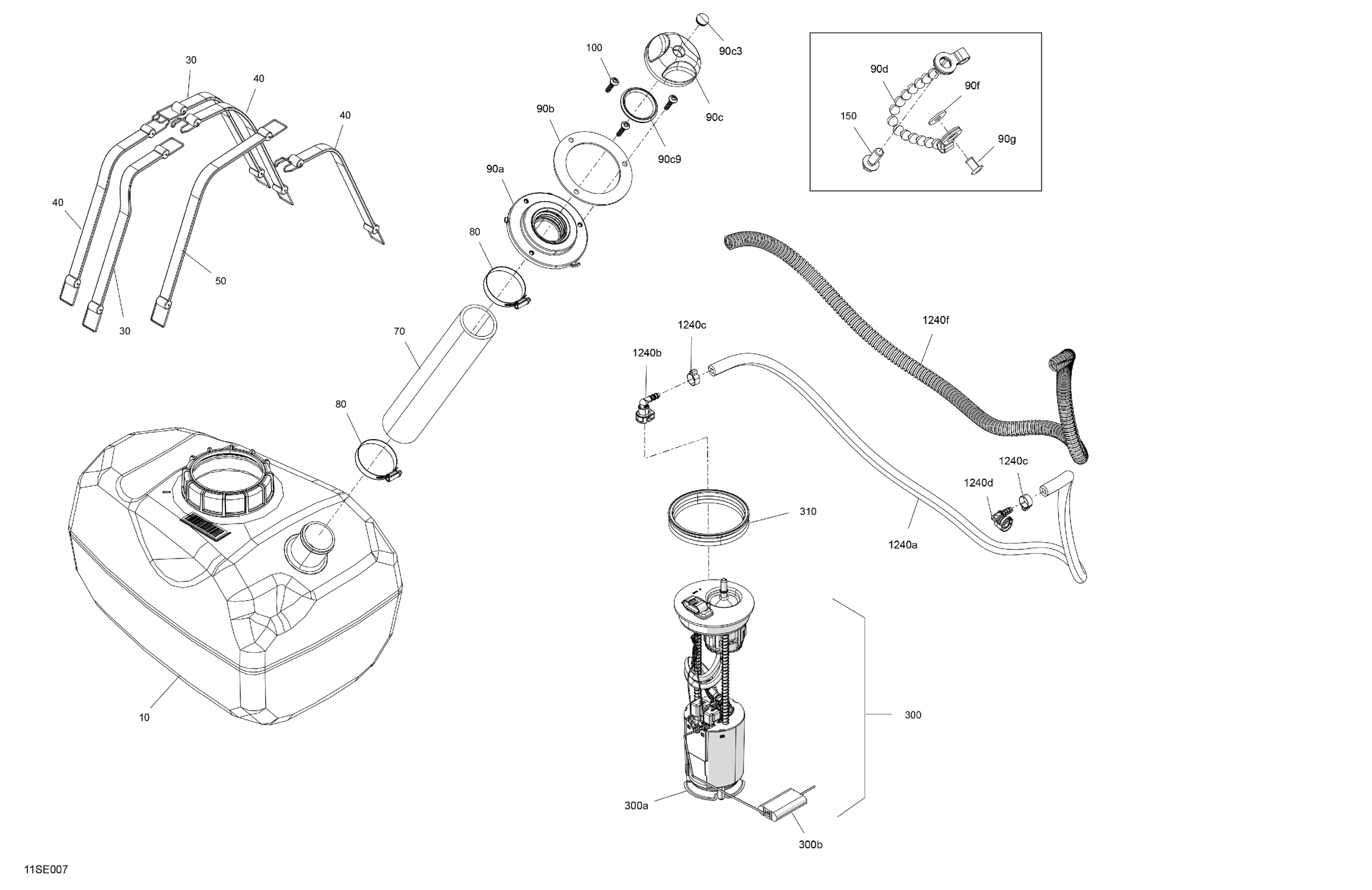

Sea-doo International - SPARK - 900 ACE - BASE - 2UP - 61SB - Sunrise Orange, 2025 02- Engine - Fuel Diagram
#
Description
Price
10
Fuel Tank
275500982
$349.99
30
Fuel Tank Strap
293850095
$19.99
40
Fuel Tank Strap
293850094
$22.49
50
Fuel Tank Strap
293850093
$21.99
70
Filler Neck Hose
275500935
$83.99
80
Norma Clamp
293650081
$12.18
90a
Filler Neck
275500857
$17.39
90b
Gasket
293250298
$16.34
90c
Fuel Cap Ass'y | Includes 90b to 90b9
275501094
$59.49
90c3
Black, Snap Cap
293000034
$9.39
90c9
Gasket
293250417
$3.91
90d
Fuel Cap Chain
275500974
$19.99
90f
Flat Washer M3, Stainless
234032600
$0.55
90g
Pop Rivet 1/8"
390407900
$1.49
100
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
150
Screw K40 X 10
241140060
$1.48
300
Pump Fuel Ass'y | Includes 300 to 300b
275500996
$425.99
300a
Sensor Lever
275500780
$224.99
300b
Fuel Filter
270600113
$33.99
310
Pump Gasket
293250514
$19.49
1240a
Hose I.D. 7.9Mm 3000Mm Long
219704359
$339.99
1240b
Quick Disconnect
275500921
$16.49
1240c
Crimp Clamp
293650053
$3.09
1240d
Elbow Fitting 90°
293710105
$14.22
1240f
Tubing 16 Mm 1000Mm Long
219704408
$7.49
